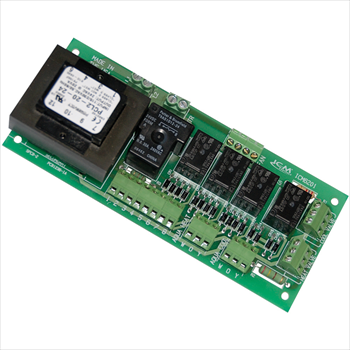

Fan Coil and Electric Heat Control Center
ICM6201
Fan Coil and Electric Heat Control Center
DETAILS:
- Ability to operate line voltage, 3-speed fan motor with low voltage controls
- Ability to operate line voltage electric heating element with low voltage controls
- Compatible with 4-pipe, 2-pipe and heat pump
- 20 VA, 24 VAC power supply
- Suitable for 1/8 HP motors
- Screw terminal receptacles
- Mounts with standard 3″ track
- UL Recognized
WEIGHT/DIMENSIONS:
- Weight: 1.25
- Height: 1.75
- Width: 7
- Length: 3
SPECIFICATIONS:
Input:
– Transformer Primary (L1 & L2): 115 VAC, 50-60 Hz
– HI, MED, LOW (8, 7, 6): Nominal 17mA @ 24 VAC
– Inputs 1-5, Aqua Heat & Cool: 1.5A @ 24 VAC
Output:
– Transformer Secondary: 24 VAC; 20 VA
– Relay Outputs HI, MED, LOW: 1/8 HP @ 115 VAC; 10A @ 240 VAC resistive
– HTR Output: 30A @ 240 VAC resistive
– Heat & Cool Valves: 1.5A @ 24 VAC
Replaces:
Honeywell: W6380B
BSR/Xactone: FC/H-1
