ECA100-11 Series

,

Motor Protection Relays

Protect your most valuable investments!

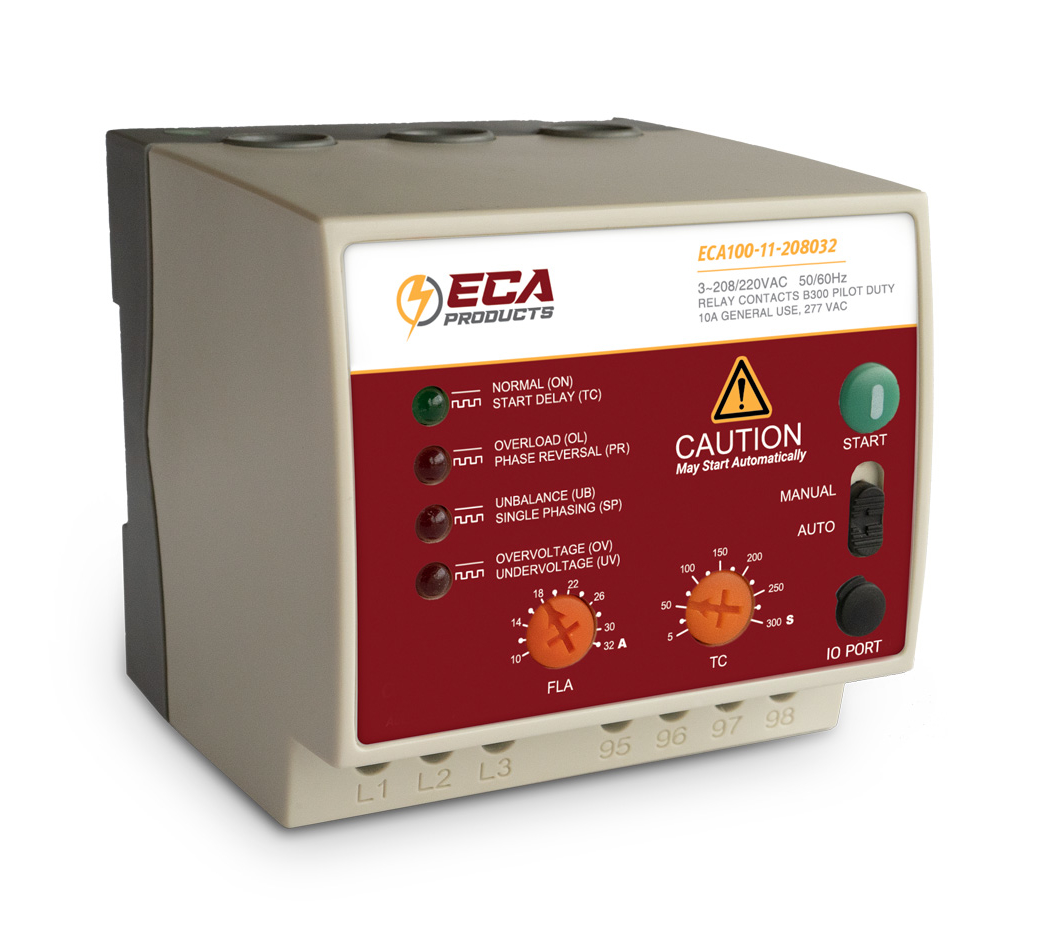

ECA100-11 is a series of microcontrolled 3-phase motor protection current, voltage monitoring relays. Designed to protect electrical motors from failure and damage due to common current and voltage faults.

The ECA100-11’s constantly supervise current and line voltage values and when harmful condition occurs, the output is deactivated until the fault disappears. These units feature two setting knobs in order to select the maximum allowed current (FLA) and start up delay (TC) once the voltage fault disappears. It also features four LED’s for output status and fault detection.

LITERARY DOWNLOADS
pdf
Sell Sheet download
pdf
Application/Install Guide download

Description

Motor Protection Relays

Protect your most valuable investments!

ECA100-11 is a series of microcontrolled 3-phase motor protection current, voltage monitoring relays. Designed to protect electrical motors from failure and damage due to common current and voltage faults.

The ECA100-11’s constantly supervise current and line voltage values and when harmful condition occurs, the output is deactivated until the fault disappears. These units feature two setting knobs in order to select the maximum allowed current (FLA) and start up delay (TC) once the voltage fault disappears. It also features four LED’s for output status and fault detection.

Reviews

There are no reviews yet.

Be the first to review “ECA100-11 Series”

Your email address will not be published. Required fields are marked *

DETAILS:

  • Measuring of Current, Voltage
  • Adjustable Parameters: overload, after fault start up delay, start mode
  • Four LED indicator lights for status/fault detection
  • Reports: Load, Voltage, Current, Adjustment values, Start Mode, Last 20 Faults and power frequency
  • Din rail, or flat surface mounting
  • Comm Port (MOBUS RTU protocol on on [email protected] baud output)
  • Meets IEEE, IEC & NEMA standards, UL Listed

WEIGHT/DIMENSIONS:

No informations found.

SPECIFICATIONS:

MODELS AVAILABLE

ECA100-11-208012:
Motor Protection Relay 208/220VAC 3.5-12A

ECA100-11-208032:
Motor Protection Relay 208/220VAC 10-32A

ECA100-11-208080:
Motor Protection Relay 208/220VAC 25-80A

ECA100-11-480032:
Motor Protection Relay 440/480VAC 10-32A

ECA100-11-480080:
Motor Protection Relay 440/480VAC 25-80A

Replaces:

SymCom: 601, 601-575, 455, 455-575, 455-480R

Wagner: DTP-3

A-1: EAC-8002

Time Mark: 274, 2744, 272, 2722
