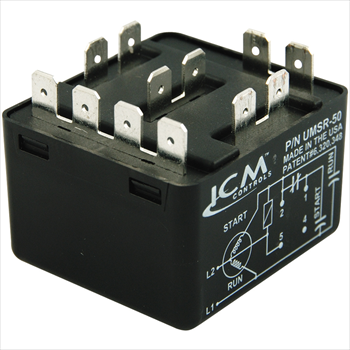

UMSR-50

, , ,

Universal Motor Starting Relay

Dealer Design Award Winner: Replacement for all standard potential relays – 50A

ICM’s award-winning Universal Motor Starting Relay incorporates patented differential voltage sensing and a non-positional mounting configuration to offer a single replacement for all standard potential relays. Great way to reduce inventory. Replacement for all standard potential relays.

DETAILS:

Reduce Inventory!
Wire-for-Wire Replacement for ALL Standard Potential Relays
2007 Dealer Design Award – Bronze Medallist – “the NEWS”
ICM’s award-winning Universal Motor Starting Relay incorporates patented differential voltage sensing and a non-positional mounting configuration to offer a single replacement for all standard potential relays. Great way to reduce inventory. Replacement for all standard potential relays.
  • Patented differential voltage sensing
  • No user-adjustments required
  • Non-positional mounting configuration
  • 50A Switching capabilities
  • Universal mounting bracket for easy installation
  • .250″ quick connect termination
  • Safety timer
  • Ideal for A/C, commercial refrigeration, heat pump, or any single-phase motor application up to 10HP

SPECIFICATIONS:

Input:
– Voltage Rating: 110-270 VAC, Single Phase
– Maximum Voltage Contact Rating: 502 VAC (absolute)
Motor Power Rating: Up to 10 HP
Operating Position: Non-positional
Safety Time Out: Approximately 1-second per 100 microfarads
Consumption: 5VA max.
Insulation: Class B (130°C); Conforms to IEC 1000- standards (6kV impulse / 6kV contact)
Life Expectancy (minimum operations):
– Mechanical:
     – 1 x 10(6)
– Electrical:
     – 1 x 10(6) at 16A 400 VAC
     – 5 x 10(5) at 35A 400 VAC (break only)
     – 5 x 10(5) at 50A 400 VAC (break only)
Contact Rating: 50A (break only), 400 VAC cos Ø = 0.7 to 0.8

WEIGHT/DIMENSIONS:

  • Weight: 0.2
  • Height: 1.625
  • Width: 2
  • Length: 2

LITERARY DOWNLOADS:

pdf
Sell Sheet download
pdf
Application/Install Guide download

Videos:

No videos found.

Replaces:

All standard potential relays

SUPCO: APR5, SUPR
