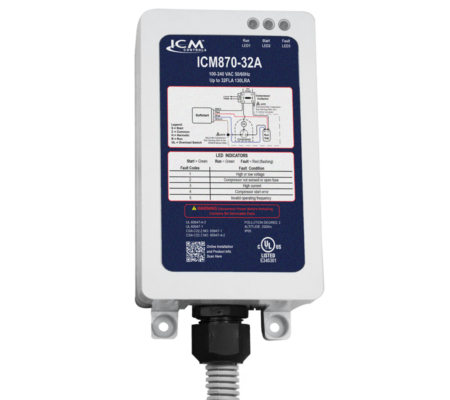

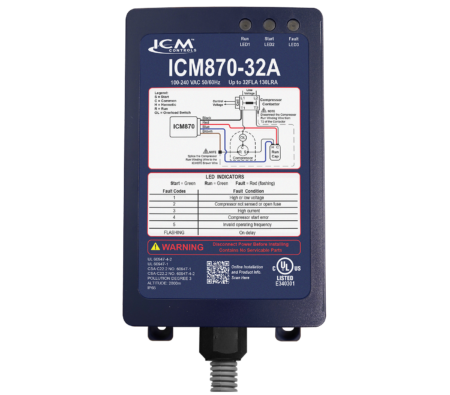

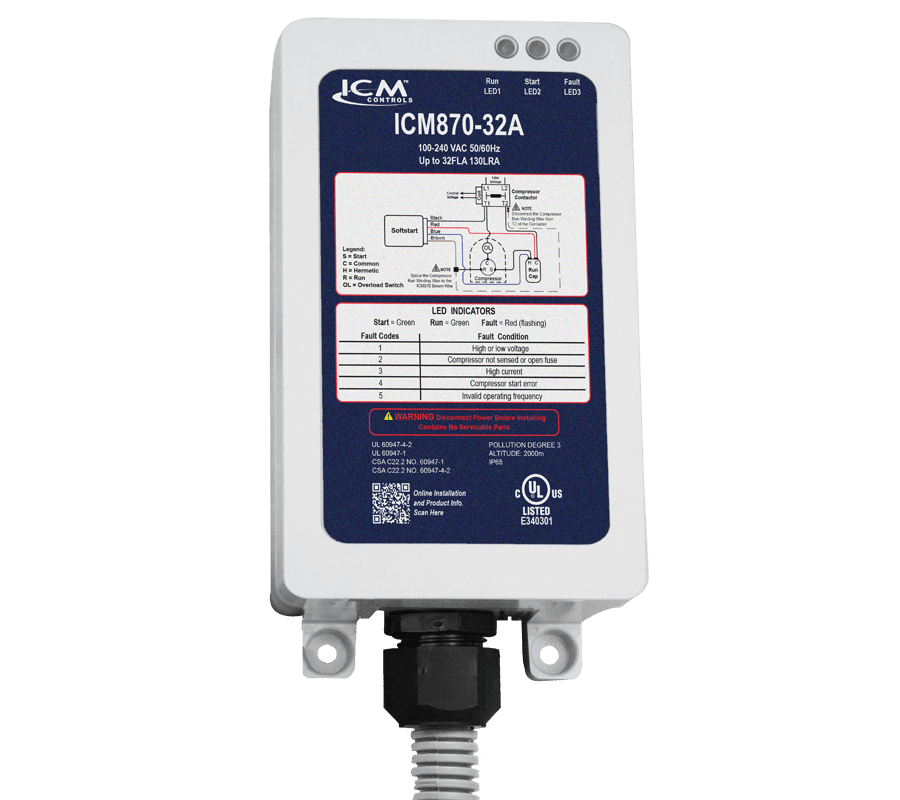

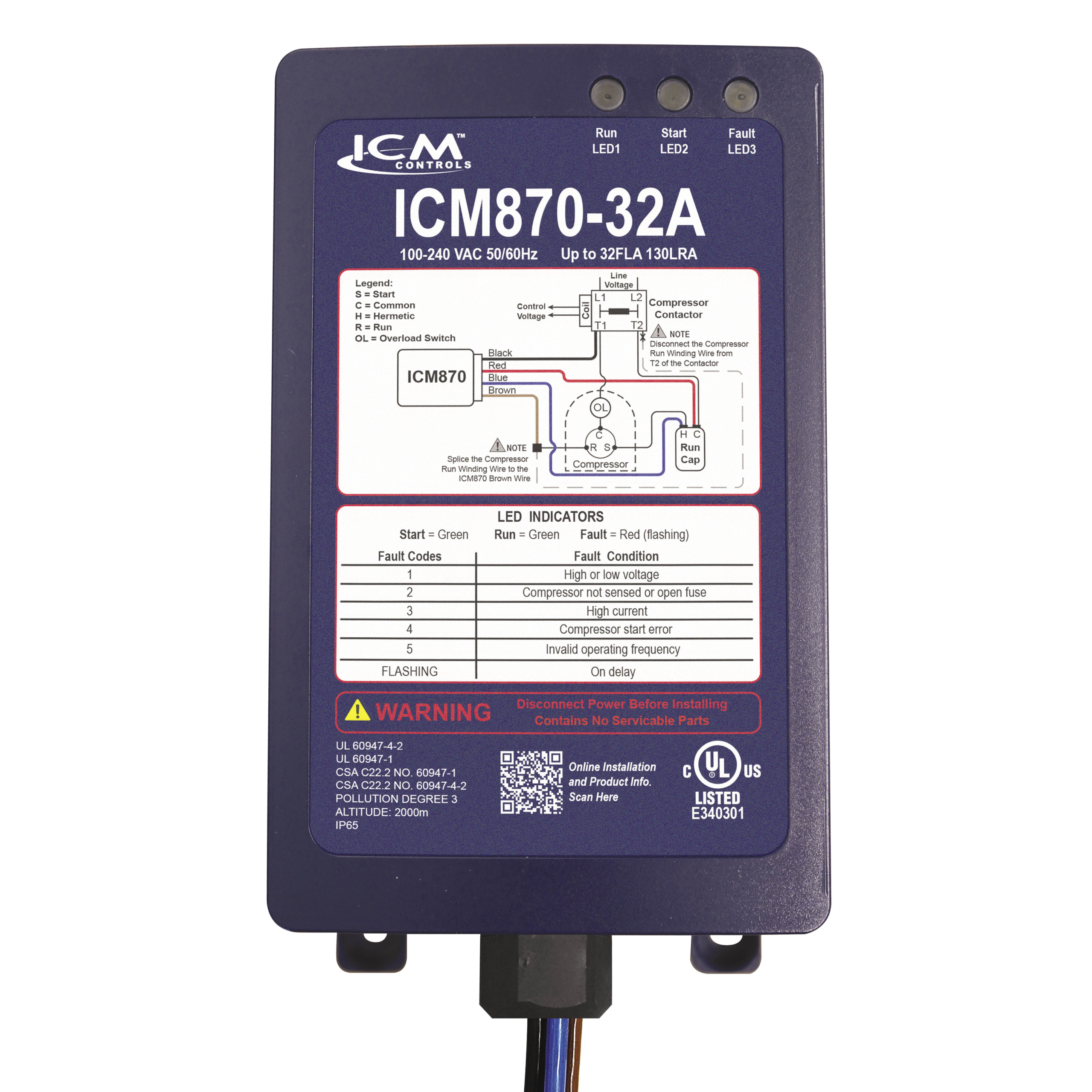

ICM870-32A

, ,

32A Soft Starter

{Coming Soon}

The ICM870 Soft Start is intended for residential, commercial, RV & marine applications. The ICM870 integrates compressor or motor in-rush current over startup time, thus reducing peak current demand on a power supply source by up to 70%.

Effectively reducing power draw to the A/C, the ICM870 utilizes a built-in self learning algorithm to deliver the optimal in-rush current per application. The ICM870 will monitor system health including voltage, current, compressor startup and integrity. Upon a fault condition, it will halt operation and initiate a 3 minute anti-short cycle routine while providing diagnostic fault information by means of an LED indicator.

Click here for ICM870-9A/16A

Related Article:

> Learn more about the benefits of a soft start in residential applications here.



LITERARY DOWNLOADS
pdf
Application/Install Guide download
pdf
Sell Sheet download
pdf
Comparison Chart download

Description

32A Soft Starter

{Coming Soon}

The ICM870 Soft Start is intended for residential, commercial, RV & marine applications. The ICM870 integrates compressor or motor in-rush current over startup time, thus reducing peak current demand on a power supply source by up to 70%.

Effectively reducing power draw to the A/C, the ICM870 utilizes a built-in self learning algorithm to deliver the optimal in-rush current per application. The ICM870 will monitor system health including voltage, current, compressor startup and integrity. Upon a fault condition, it will halt operation and initiate a 3 minute anti-short cycle routine while providing diagnostic fault information by means of an LED indicator.

Click here for ICM870-9A/16A

Related Article:

> Learn more about the benefits of a soft start in residential applications here.



Reviews

There are no reviews yet.

Be the first to review “ICM870-32A”

Your email address will not be published. Required fields are marked *

DETAILS:

Features & Benefits

  • Reduces in-rush current/draw necessary at startup by up to 70%
  • Prolong the life of the A/C by reducing excessive torque, wear and tear
  • Reduce loud noises, light flickering, and breaker trips
  • Built-in self-learning algorithm
  • Over-current protection
  • Over/under voltage monitoring
  • Built-in start capacitor
  • LED fault indicators
  • Ultrasonic sealed tamper-proof enclosure
  • Installation hardware is included





Which Model Do I Need?

ICM870-9A: For AC’s with a Compressor Load Amp Rating (RLA) of up to 9A

ICM870-16A: For AC’s with a Compressor Load Amp Rating (RLA) of 9.1-16A

ICM870-32A: For AC’s with a Compressor Load Amp Rating (RLA) of 16.1-32A



* This chart reflects average conversions of Single-Phase Air Conditioning and Heat Pump Tonnage, BTU’s, and RLA. Please refer to you user manual or service panel to determine your actual RLA rating before deciding which model ICM870 you need.

Air Conditioning & Heat Pump Loads – Average
Size BTU RLA ICM870-model
1 Ton 12,000 6 9A
2 Ton 24,000 12 16A
3 Ton 36,000 16 16A
4 Ton 48,000 22 32A
5 Ton 60,000 26 32A
6 Ton 72,000 32 32A



WEIGHT/DIMENSIONS:

7.94” x 4.20” x 2.10”



SPECIFICATIONS:

Semiconductor soft-start motor controller, Form 2, bypassed controller

• SCCR: 5kA   • Ue = 240 VAC

• Ui = 240 VAC   • Uimp = 4kv

• Pollution degree 3

• UL 60947-1 and UL 60947-4-2

• CSA C22.2 NO. 60947-1 and CSA C22.2 NO. 60947-4-2



Input:

(L1, L2) – 100-240 VAC 50/60Hz

• Over voltage limits: 115 VAC nominal = 140 VAC 240 VAC nominal = 250 VAC

• Under voltage limits: 115 VAC nominal = 95 VAC, 240 VAC nominal =195 VAC



Outputs:

Compressor

• Solid state/relay

• Current: Max. nominal = 32A

• Over current limits: ICM870-32A = 40A



Environmental:

• Ambient temperature: 40°C @ 32 FLA, 8 hour duty

• Storage temperature: -40°F to 149°F (-40°C to 65°C)

• Humidity: 0-95% non-condensing

• Enclosure: IP65

• Dimensions: 7.94” x 4.20” x 2.10”

• Screw Hole Center Points: 7.36” x 2.97”



REPLACE/CROSS REFS

ICM870-32A model crosses to the comparable amperage models from:

Hyper Engineering (Sure Start)

Carlo Gavazzi (RSBS Series)

Micro-Air (Easy Start)
