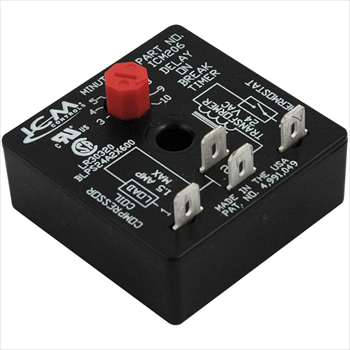

ICM206

Delay On Break Relays (DOB), TIME DELAY RELAYS

Delay On Break Relays (DOB)

3-10 Min Adjustable Delay

ICM206 is UL recognized and acts as a compressor controller; It prevents scroll reversal, low voltage starts and provides complete brownout protection – 3-10 minute adjustable timing.

DETAILS:

Compressor lockout/anti-short cycle timer
Brownout protection
UL 873 recognition as compressor controller
Helps prevent scroll compressor reversal
Fast response time: 16ms
Prevents low voltage starts
Eliminates relay chatter due to thermostat bounce or tampering
Works with anticipator-type thermostats
18-30 VAC

SPECIFICATIONS:

INPUT

Voltage: 18-30 VAC
Frequency: 50-60 Hz

OUTPUT RATINGS

Maximum: 1.5 amps
Minimum: 40 mA
Inrush: 15 amps

TIME DELAY

3-10 minute adjustable

WEIGHT/DIMENSIONS:

Weight: 0.15
Height: 1.25
Width: 2
Length: 2

LITERARY DOWNLOADS:

Sell Sheet download

Application/Install Guide download

Videos:

No videos found.

Replaces:

A-1: EAC-426-ADJ

Supco: TD74
