ICM496-60A

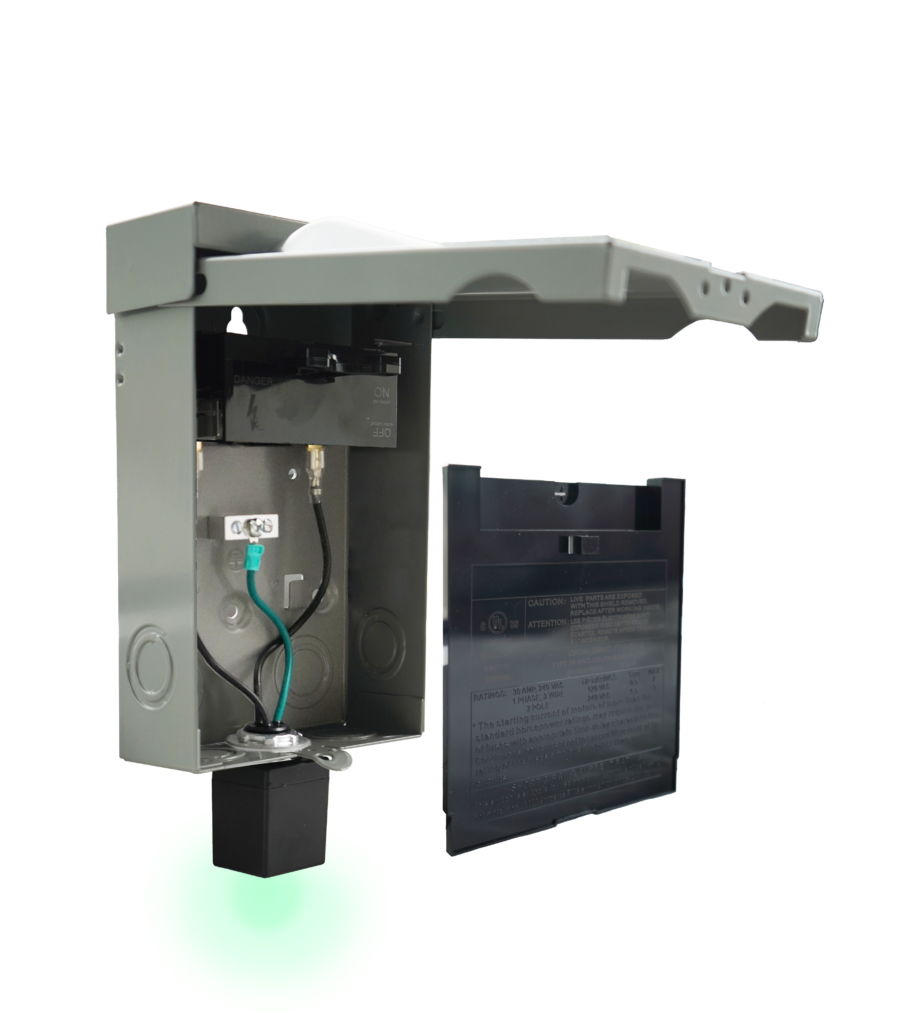

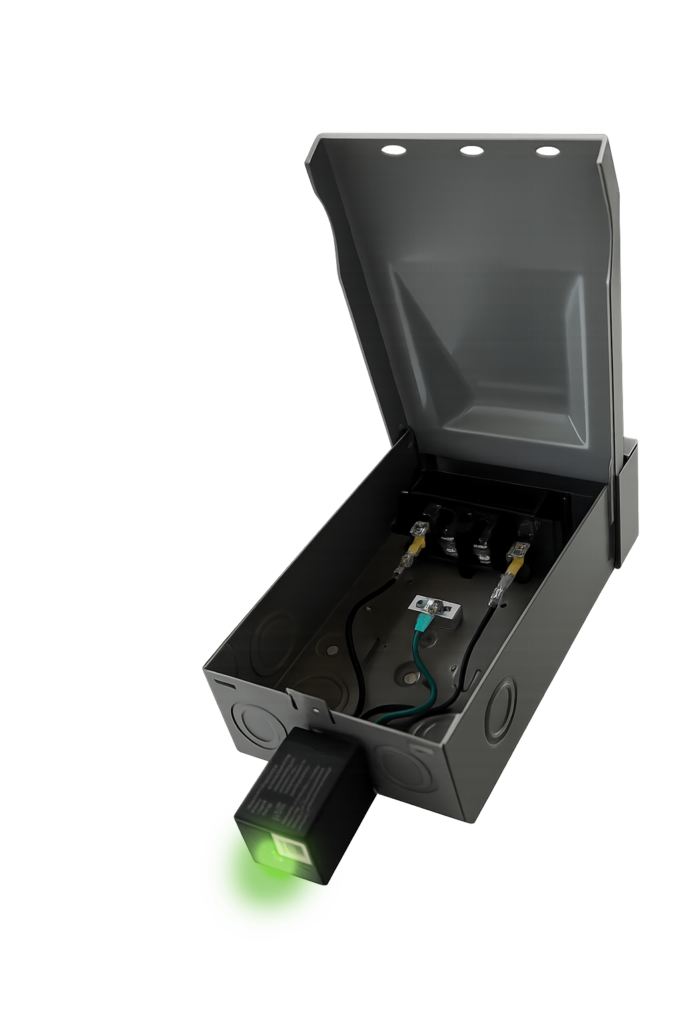

The ICM496-60A is a 60A non-fused electrical disconnect featuring a pre-wired, external, and replaceable surge protective device (SPD). This model includes a Type 1 SPD designed for 240VAC split-phase applications. In the event of a surge, the ICM496-60A absorbs excess voltage up to its rated limits, helping protect connected equipment. The unit incorporates an external, thermally protected surge device (TMOV technology), which safely disables the SPD if thermal limits are exceeded. The NEMA Type 3R enclosure makes the ICM496-60A suitable for both indoor and outdoor installations. The ICM496-60A is rated for use on circuits delivering up to 10kA RMS symmetrical current at 240VAC maximum.
Details Specifications Literature Replaces
  • Split-phase, 240 VAC
  • Features a replaceable, external surge protective device
  • Incorporates Gas Discharge Tube (GDT) technology to aid in suppression of fast acting transient surges
  • Maximum Surge Current Rating of 200kA (Imax 25kA per phase)
  • High nominal discharge current (In 10kA), for increased longevity & durability of the SPD
  • Completely factory wired for quick and easy installation
  • Designed to support compliance with NEC Article 230.67
  • NEMA type 3R rated powder coated metal enclosure for indoor/outdoor use
  • Fully accessible mounting holes, no disassembling required
  • Limited lifetime surge protection device warranty, up to 3-year $10,000

Input

  • Voltage: Split phase 240 VAC
  • Frequency: 50/60Hz

Contact Ratings

  • Voltage: 120/240 VAC
  • FLA: 60A
  • LRA: 360A

Mechanical

  • Mounting: Four mounting holes in back of enclosure
  • Diagnostics: Green LED indicator light on SPD confirms when surge protection is operational
  • Enclosure: NEMA Type 3R metal enclosure for outdoor and indoor installation
  • Dimensions: 10.94 x 2.44 x 5.44

Parameters

  • Nominal discharge current (In): 10kA
  • Protection mode: L-L, L-G
  • Maximum Continuous Operation Voltage (MCOV):
    • L-L: 320 VAC
    • L-G: 150 VAC
  •  VPR:
    • L-L: 1500 VAC
    • L-G: 900 VAC
  • SPD type: Type 1
  • Surge protection technology: Thermally Protected Metal Oxide Varistor (TMOV) and Gas Discharge Tube (GDT)
Weight/Dimensions
  • Length: 10.94″
  • Width: 2.44″
  • Height: 5.44″



Sell Sheet
Download
Installation Guide
Download

MARS: 83915
RectorSeal: RSH-50 96419
ICM Controls: ICM495-60A
