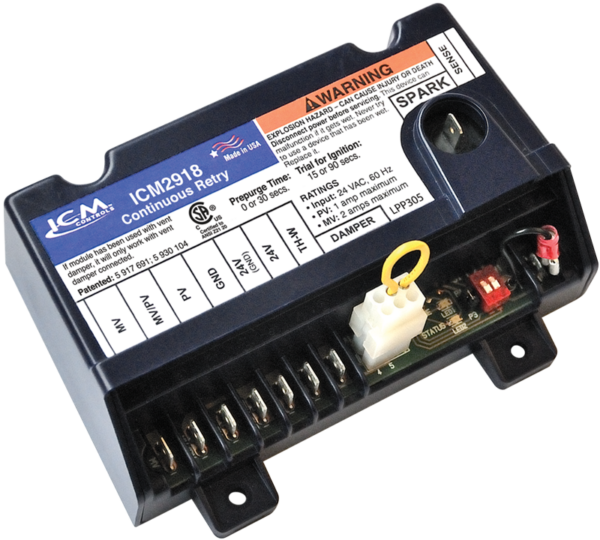

ICM2918 Universal Intermittent Pilot Ignition Furnace Control Module
Find a Distributor → Call Tech Support → Buy Now →
→Back

ICM2918

, ,

Universal Intermittent Pilot Ignition Control Module

The ICM2918 Universal Intermittent Pilot Gas Ignition Control Module is a field service replacement for many popular flame rectification type of intermittent pilot ignition (IPI) modules. Provides electronic control for most intermittent pilot ignition systems used on gas-fired furnaces, boilers, and other heating appliances.

Replaces ICM290A, Honeywell S8610U & over 280 other models from Camstat, Fenwal, UTEC/HSC, Johnson Controls, Robertshaw and White-Rodgers. Click here for a complete list of replacements.



LITERARY DOWNLOADS
pdf
Sell Sheet download
pdf
Application/Install Guide download
pdf
Full Replace List download

Description

Universal Intermittent Pilot Ignition Control Module

The ICM2918 Universal Intermittent Pilot Gas Ignition Control Module is a field service replacement for many popular flame rectification type of intermittent pilot ignition (IPI) modules. Provides electronic control for most intermittent pilot ignition systems used on gas-fired furnaces, boilers, and other heating appliances.

Replaces ICM290A, Honeywell S8610U & over 280 other models from Camstat, Fenwal, UTEC/HSC, Johnson Controls, Robertshaw and White-Rodgers. Click here for a complete list of replacements.



Reviews

There are no reviews yet.

Be the first to review “ICM2918”

Your email address will not be published. Required fields are marked *

DETAILS:

Universal Intermittent Pilot Ignition Control Module

• Provides ignition sequence, flame monitoring and safety shutoff for single/dual rod intermittent pilot control applications

• For gas fired furnaces, boilers and other heating applications

• Switch selectable pre-purge and ignition trials with permanent lock

• Works with or without vent damper connected

• Works with both Natural Gas and LP Gas systems





WEIGHT/DIMENSIONS:

5.50” x 4.00” x 2.00”



SPECIFICATIONS:

Control voltage: 18-30 VAC @ 50/60 Hz

Trial for ignition: 15 or 90 seconds (switch settable)

Operating temperature: -40°F (-40°C) to 165°F (74°C)

Relative humidity: 5% – 95% (non-condensing) at +55°C

Pre-purge time: 0 sec or 30 sec (switch settable)

Green status LED: System status and error codes

Yellow flame LED: Flame presence and flame strength





Replaces:

Cost effective replacement to the Honeywell S8610U3009 Universal Intermittent Pilot Module and over 280 other Pilot Controls… See all replacements below:

S8610U
S86A1001
S86A1019
S86A1027
S86A1035
S86B1009
S86B1017
S86B1025
S86C1007
S86C1015
S86C1031
S86C1049
S86C1056
S86D1005
S86D1021
S86E1002
S86E1010
S86E1028
S86E1036
S86E1044
S86E1051
S86E1069
S86E1077
S86E1101
S86E1119
S86E1127
S86F1000
S86F1018
S86F1026
S86F1042
S86F1059
S86F1067
S86F1075
S86F1083
S86F1091
S86G1008
S86G1016
S86G1032
S86G1057
S86G1073
S86H1006
S86H1022
S86H1048
S86H1089
S86H1097
S86H1105
S86H1121
S86H1147
S90A1005
S90B1003
S90B1011
S8600A1001
S8600B1009
S8600C1015
S8600F1000
S8600F1034
S8600F1042
S8600H1006
S8600H1022
S8600H1048
S8600H1055
S8600H1089
S8600H1105
S8600M1005
S8600M1013
S8610A1009
S8610B1007
S8610B1015
S8610C1005
S8610F1008
S8610F1016
S8610F1024
S8610F1032
S8610H1012
S8610H1038
S8610H1046
S8610H1053
S8610H1079
S8610M1003
S8610M1029
S8620H1028

05-203025-005
05-203026-005

IPI-24-00

1003-3
1003-300

CSA35A-617R
CSA35A-618R
CSA42A-600R
CSA42A-601R
CSA42A-603R
CSA42A-604R
CSA43A-600R
CSA44A-600R
CSA45A-601R
CSA45A-602R
CSA46A-600R
CSA48A-600R
CSA49A-600R
CSA49A-605R
CSA51A-601R
CSA52A-600R
G60AAA-1
G60AAG-1
G60AAG-3
G60AAG-4
G60AAG-5
G60AAG-6
G60CAA-1
G60CAA-3
G60CAG-1
G60CAG-2
G60CAG-3
G60CAG-4
G60CAG-5
G60CAG-6
G60CAG-7
G60CAG-8
G60CAG-9
G60CBA-1
G60CBA-3
G60CBG-1
G60CBG-10
G60CBG-11
G60CBG-14
G60CBG-16
G60CBG-17
G60CBG-3
G60CBG-4
G60CBG-9
G60CCA-1
G60CCG-1
G60CPG-1
G60DBG-1
G60DCG-1
G60DCG-2
G60PAG-1
G60PAG-2
G60PAG-3
G60PAG-4
G60PAG-5
G60PAG-6
G60PAJ-1
G60PAK-1
G60PAK-2
G60PFH-1
G60PFH-2
G60PFL-1
G60PFQ-1
G60PVL-1
G60QAG-2
G60QAG-3
G60QAK-1
G60QBG-1
G60QBG-2
G60QBG-3
G60QBG-4
G60QBG-5
G60QBG-6
G60QBG-7
G60QBG-8
G60QBG-9
G60QBH-1
G60QBK-1
G60QBK-3
G60QBL-1
G60QBL-2
G60QCG-1
G60QCJ-1
G60QCL-1
G60QDG-1
G60QFL-1
G60QHL-1
G60QJL-1
G60QLG-1
G60QPL-1
G60QRH-1
G60QRL-1
G60QRL-2
G60QRL-3
G60QSL-1
G60QTH-1
G60QTL-1
G60RAG-1
G60RAK-1
G60RBG-1
G60RBG-2
G60RBG-3
G60RBK-1
G60RBK-2
G60RCG-2
G60RCJ-1
G60RDG-1
G60RDK-1
G60RGL-1
G60RHL-1
G60RHP-1
G60RPL-1
G60RSL-1
G60ZAG-1
G65BBG-1
G65BBG-2
G65BBG-3
G65BBG-4
G65BBG-5
G65BBG-6
G65BBG-7
G65BBG-8
G65BBM-1
G65BBM-2
G65BBM-3
G65BBM-4
G65BCG-1
G65BCM-1
G65BFG-1
G65BFM
G65BKG-1
G65BKG-2
G65BKG-3
G65BKM-1
G65BKM-2
G65BKM-3
G65DBG
G65DBM-1
G65DBM-3
G65DCM-1
G65DFG
G65DFM-1
G65DKG
G65DKM
G65FBG
G65FFG
G65FKG
G66AG-1
G66BG-1
G66MG-1
G66NG-1
G67AG-3
G67AG-4
G67AG-7
G67AG-8
G67BG-2
G67BG-3
G67BG-4
G67BG-5
G67MG-1
G67MG-4
G67NG-2
G600AX-1
G600AY-1
G600MX-1
G600NX-1
G600RX-1
G670AW-1
G770MGA-1
G770MGA-2
G770MGC-1
G770MGC-2
G770MGC-3
G770MHA-1
G770NGA-1
G770NGC-4
G770NGC-5
G770NGC-6
G770NGC-7
G770RGA-1
G770RHA-1
G770MHA-2
G770MHC-1
G770NHA-1
G770NHC-1
G770RHA-2

780-715
780-735
780-737
SP715
SP715A
SP735
SP735D
SP735L
USI 715U

ICM290A
