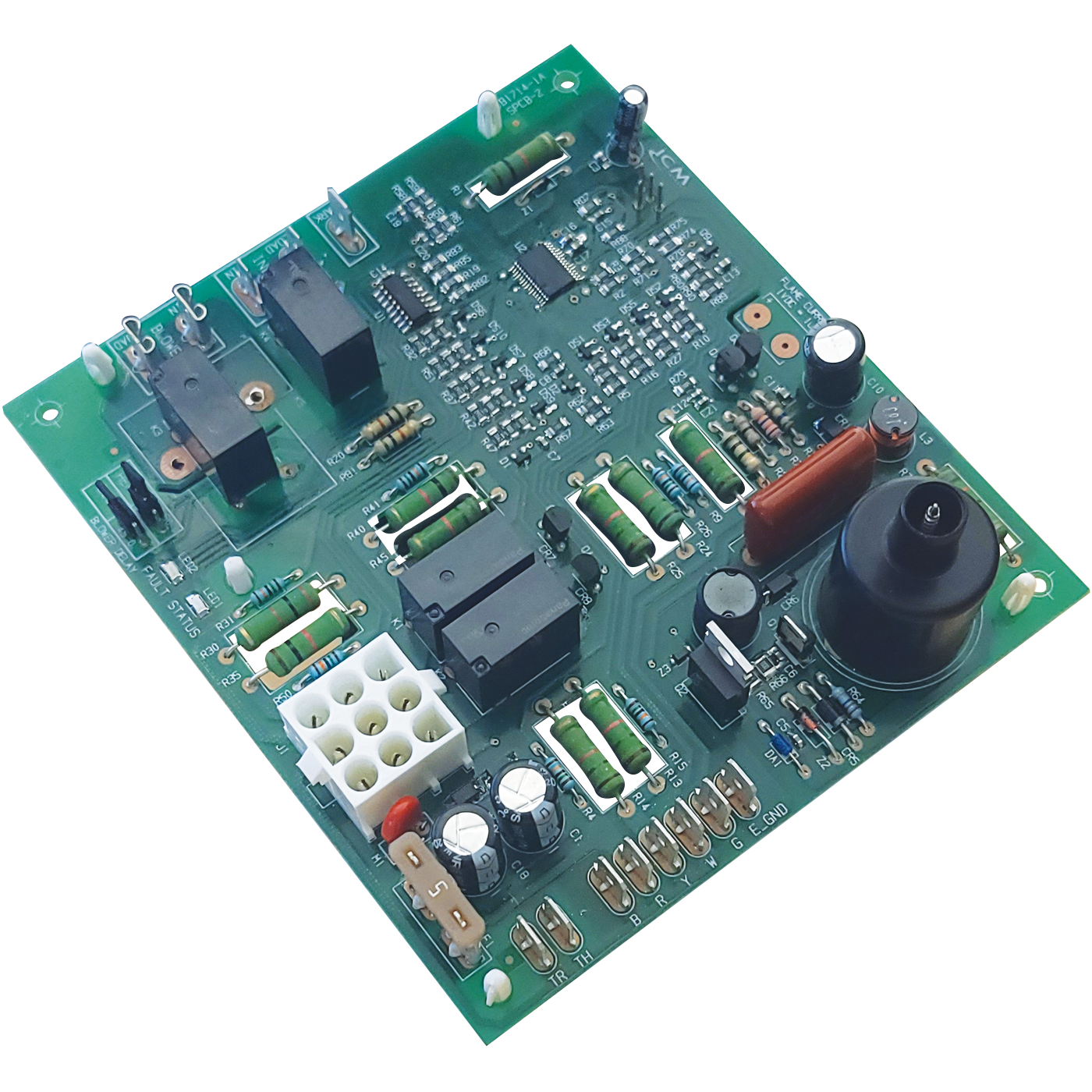

ICM2916

,

Trane Replacement Control

Direct Spark Ignition (DSI) Control Board

The ICM2916 is a form, fit, and functional replacement for Trane Spark Ignition Control: D674712P02 shown in the cross-reference section of the guide.

The control boards are designed as automated gas ignition controls that monitor the ignition sequence including the inducer, pressure switch, spark ignition, gas valve, flame sense, and circulating blower while maintaining full safety circuit monitoring including the high limit switch, roll out switch and auxiliary limit switch circuits.



DETAILS:

• Controls blower motors, gas valve, & spark ignitor in sequence
• Protects against short cycling
• Selectable Heat/Cool blower off-delay time
• Flash codes from the onboard LED indicate specific problems for easier troubleshooting
• Repeated ignition failures or flame losses will disable heat operation for safety

SPECIFICATIONS:

  • Line voltage: 230 VAC
  • Line frequency: 50/60 Hz
  • Control voltage: 18-30 VAC
  • Circulating blower: 4FLA @ 277 VAC
  • Hi-efficiency blower: 10 mA @ 24 VAC
  • Inducer blower: 0.7 FLA, 1.5 LRA @ 240 V
  • Combined gas valve load: 1.5 A @ 24 VAC
  • Minimum flame signal threshold: 0.75 uA

WEIGHT/DIMENSIONS:

Weight: 0.38
Dimensions: 5.5”L x 4.75”W x 1.5”H

LITERARY DOWNLOADS:

pdf
Application/Install Guide download
pdf
Sell Sheet download

Videos:

No videos found.

Replaces:

Trane Spark Ignition Control: D674712P02
