DETAILS:
- Microprocessor-based precision
- For circulating fan in heat pump, A/C and forced air systems

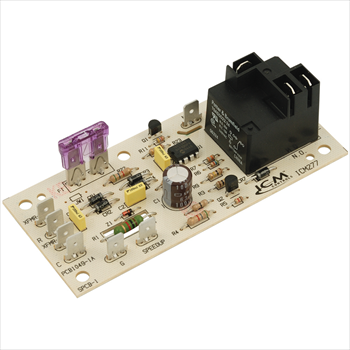

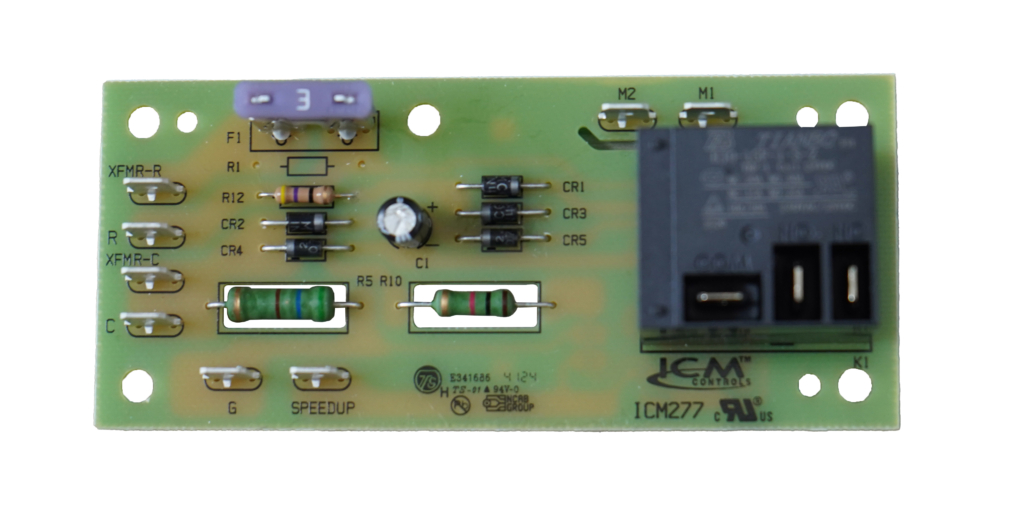

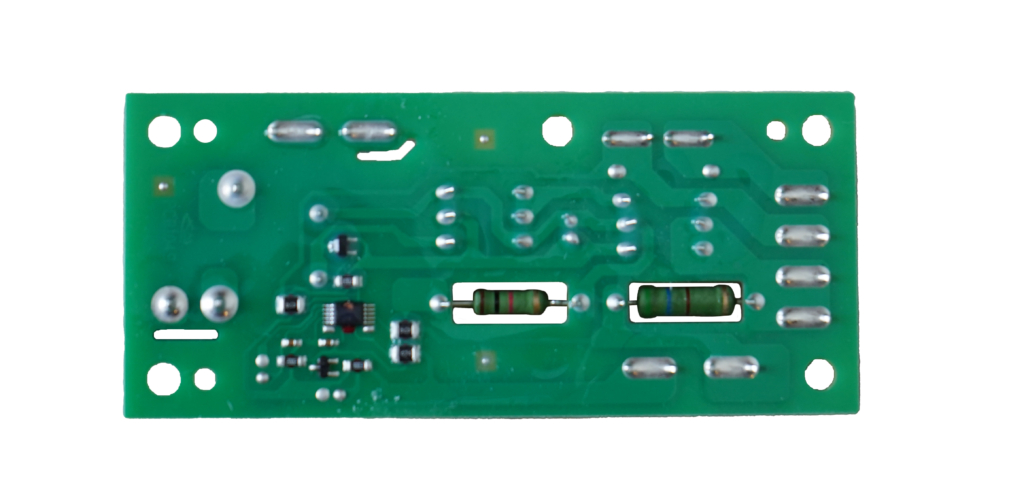

ICM277
Fan Blower Controls
Goodman OEM Replacement Control
Upon application of power to the G terminal, the ICM277 recognizes a call for the blower and a 7 second delay on make period begins. After the 7 second ON delay, the control energizes the blower motor. Upon removal of power from the G terminal, the board will keep the blower on for an additional 65 seconds. At the end of the 65 second OFF delay, the blower will shut off.
SPECIFICATIONS:
Input:
– Voltage: 18-30 VAC
– Voltage: 18-30 VAC
Contact Ratings:
– N.O.: 20 amps
– N.C.: 10 amps
– N.O.: 20 amps
– N.C.: 10 amps
Time Delays:
– Blower ON: 7 seconds fixed
– Blower OFF: 65 seconds fixed
– Blower ON: 7 seconds fixed
– Blower OFF: 65 seconds fixed
WEIGHT/DIMENSIONS:
- Weight: 0.3
- Height: 1.75
- Width: 6
- Length: 4.5
Videos:
No videos found.
Replaces:
Goodman: B1370735S, PCBFM131S
