3VMS

NEW Products, Three Phase Surge Protection, Three Phase Voltage Monitors

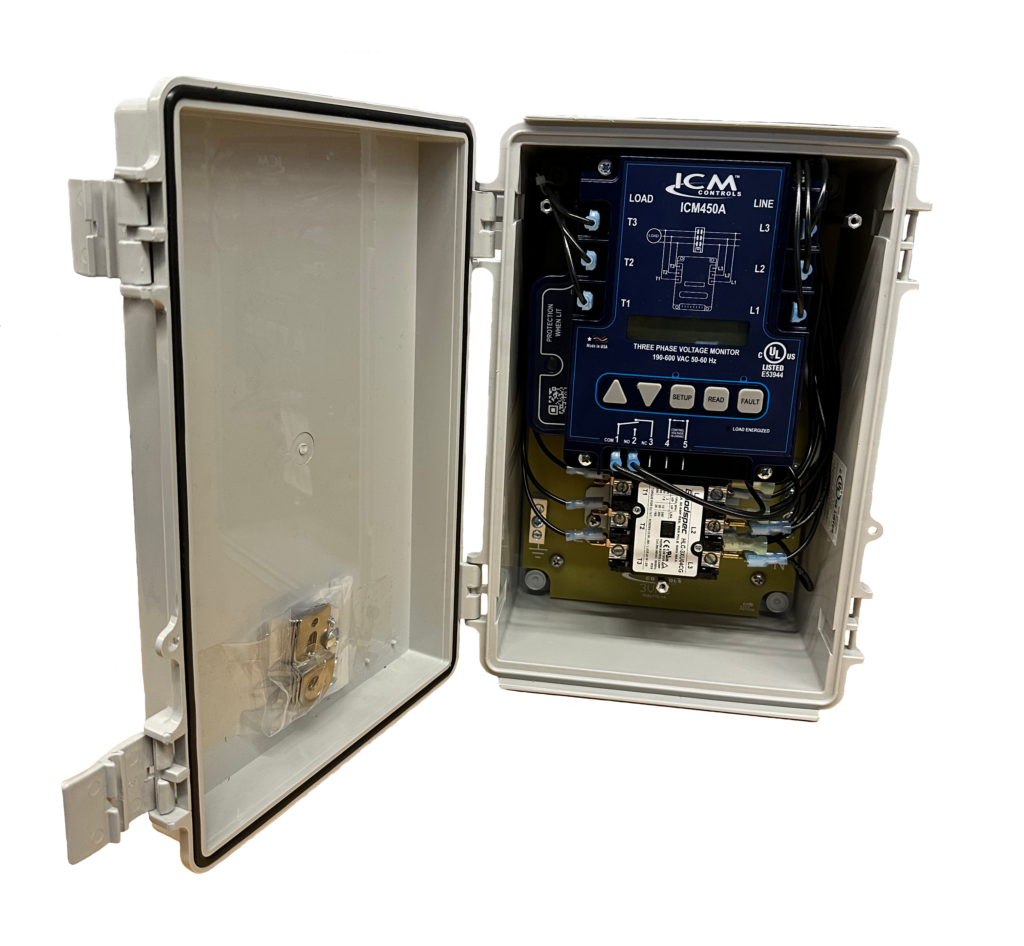

The 3VMS combines the benefits of the ICM450A programmable 3-phase line voltage monitor and a ICM530 type 1 and type 2 three-phase Surge Protective Device into one easy to install solution. The 3VMS protects against both power surges and over/under voltage issues that can cause damage to circuit boards and motors in residential and commercial three-phase 208/240 VAC HVAC/R equipment.

DETAILS:

All components pre-wired for 208/240 volts
Modular design with field replaceable components
Field programmable voltage monitor with backlit LCD display and a large fault history
Protects against over and under voltage, phase loss, phase reversal, phase unbalance and rapid short cycling
Separate 40amp contactor, fully disconnects from the service
Superior TMOV technology provides safe and reliable surge protection, up to 150 kA max surge event
Built to withstand the high impact of a major surge event
NEMA type 4X Rating
Limited lifetime product warranty up to a 3-year $10,000 connected equipment warranty.
UL Listed: ICM450A UL file number E53944
UL Listed: ICM530 UL file number E347279

SPECIFICATIONS:

ICM530 Surge Protection Device

Maximum Surge Current: 150,000 amps
Diagnostic green LED light indicates surge protection present
Protection modes: L-L, L-N
(L-N protection available only when Neutral is connected)

ICM450A 3-Phase Line Voltage Monitor

User Adjustable settings:

Voltage set point: 208/240 VAC
(do not set above 240VAC)
Delay on Fault: 0- 15 seconds
Percent Unbalance: 2% – 20%
(do not set above 10%)
Anti-short cycle time delay: 15 sec to 10 min
Over/under voltage setting: 2-25%
(do not set above 5% when voltage set point is 240VAC)

Inputs:

Line voltage: 208/240 VAC
Frequency: 50/60 Hz

Outputs:

Type: Relay, SPDT
2-Pole contact ratings: 40A, 208/240 VAC

WEIGHT/DIMENSIONS:

Height: 5.18
Width: 7.97
Length: 11.95

LITERARY DOWNLOADS:

Sell Sheet download

Installation Guide download
