Description
Honeywell OEM Replacement
45-Second Safety Timing

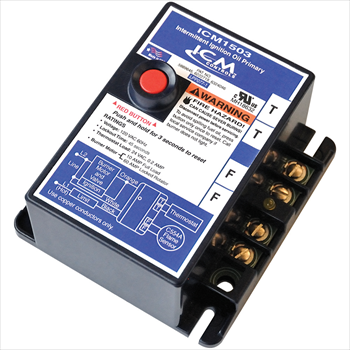

ICM1503
Honeywell OEM Replacement
45-Second Safety Timing
DETAILS:
- Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat
- Solid state flame sensing circuit
- LED on terminal strip indicates system lockout
- Enclosed safety switch with external reset button
- Mounts on standard 4×4 J-Box (select models may be mounted directly on burner housing)
- C554A Cadmium Sulfide Flame Detector and 24 VAC thermostat required
- Replacement for popular competitive models
WEIGHT/DIMENSIONS:
- Weight: 0.95
- Height: 2.35
- Width: 4.08
- Length: 4.41
SPECIFICATIONS:
Ignition Type: Intermittent
Timing, Safety Switch: 45
Mounting Bracket: Standard 4×4 J-Box or direct mounting on burner housing
Electrical Rating (Contacts – Full Load):
7.4 A @ 120 VAC
3.7 A @ 240 VAC
Electrical Rating (Contacts – Locked Rotor):
44.4 A @ 120 VAC
22.2 A @ 240 VAC
Temperature Range: -30°F to 130°F
Approvals: UL Approved
Replaces:
Carlin: 48245
Honeywell: R8184G4009, R8184G1138, R8184G1427, R8184G4025
Tempstar / Heil: 1147017
White-Rodgers: 668-401
