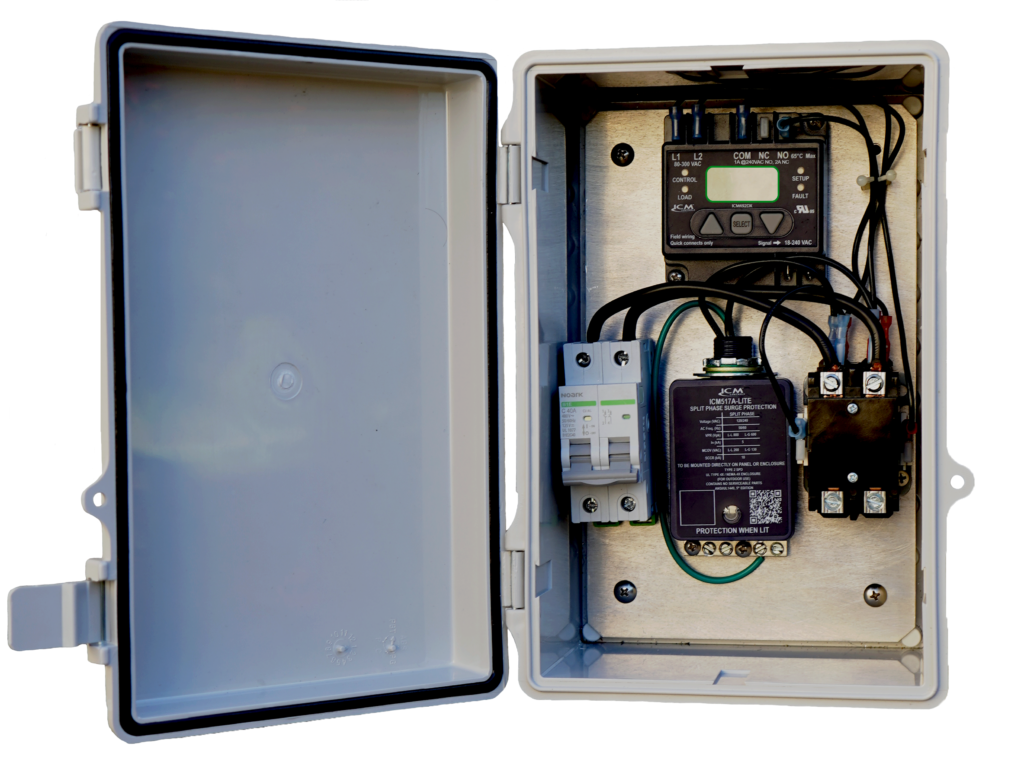

Sentry 3N1
The Sentry 3N1 combines the benefits of an ICM517A-LITE single-phase surge protection device, and a ICM492D single-phase voltage monitor into one easy to install solution. It also provides techs and homeowners a convenient way to break the power using an onboard disconnect breaker. The Sentry 3N1 protects against both power surges and over/under voltage issues that can cause damage to circuit boards and motors in residential and commercial single-phase 208/240 VAC HVAC/R equipment.- All Components pre-wired for 208/240 volts
- SCCR: 10kA
- Modular design with field replaceable components
- Field programmable voltage monitor with an improved backlit digital display and 5-fault memory
- Protects against over and under voltage, and rapid short cycling caused by transient faults and power interruptions
- Separate 40amp contactor, fully disconnects from the service
- 40amp internal breaker allows for easy switching of power on and off
- Superior TMOV technology provides safe and reliable surge protection
- Built to withstand the high impact of a major surge event
- Proudly innovated and designed in the USA
- NEMA type 4X rating
- Flame Rating: UL94- 5VA
- Limited lifetime product warranty up to a 3-year $25,000 connected equipment warranty
- UL Listed: ICM517A-LITE UL file number E347279
- UL Listed: ICM492D UL file number E53944
Inputs
- Line voltage: 208/240 VAC
- Frequency: 50/60 Hz
- Breaker: 40 amp at 240 VAC
Outputs
- Contactor: 40A FLA, 208/240VAC
Surge Protection
- Maximum Surge Current: 60,000 amps
- NEMA Type 4X ultrasonically welded enclosure
- Diagnostics green LED light indicates surge suppression present
- Protection modes: L-L, L-G
Voltage Monitor (Default Settings)
- Voltage set point: 240VAC
- Delay on Break (ASC): 15 seconds
- Over/under voltage setting: 5%
- Delay on Fault: 2 seconds
- Reset Mode: 0 (auto)
- Control Mode: OFF
- Language: English
Weight/Dimensions
Weight: 13 lbs.
Length: 11.28″
Width: 7.48”
Depth: 5.52”
RectroSeal: RSH-50 VRM Kit-DC
