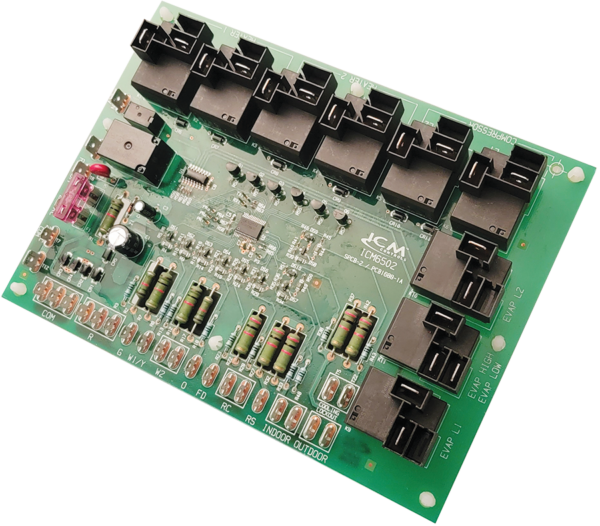

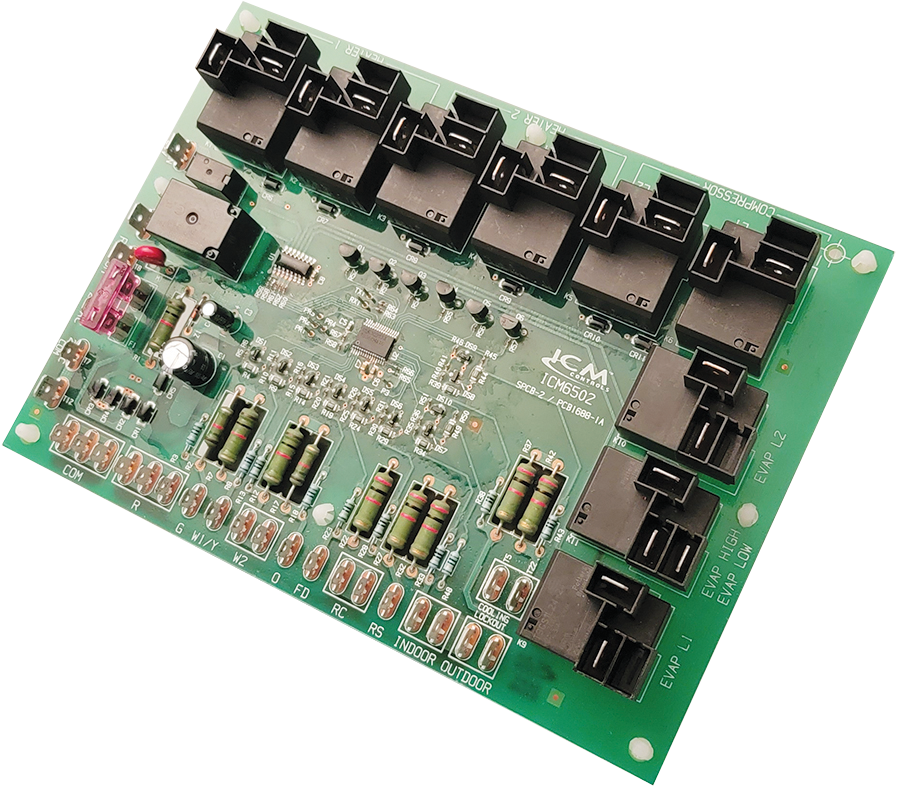

ICM6502

,

Air Handling Controller
The ICM6502 is a package unit heat pump control board designed to provide control of the compressor, reversing valve, auxiliary heat elements, the condenser and evaporator fans. The ICM6502 also accepts inputs from a thermostat, indoor coil temperature, outdoor coil temperature, outdoor ambient temperature, indoor room temperature and a shutdown switch (front desk). The ICM6502 provides compressor protection from short cycling with an anti-short cycle timer and low ambient lockout. A built-in defrost cycle will protect the outdoor coil from freezing up when in heating mode.

LITERARY DOWNLOADS
pdf
Sell Sheet download
pdf
Installation Guide (Coming Soon) download

Description

Air Handling Controller
The ICM6502 is a package unit heat pump control board designed to provide control of the compressor, reversing valve, auxiliary heat elements, the condenser and evaporator fans. The ICM6502 also accepts inputs from a thermostat, indoor coil temperature, outdoor coil temperature, outdoor ambient temperature, indoor room temperature and a shutdown switch (front desk). The ICM6502 provides compressor protection from short cycling with an anti-short cycle timer and low ambient lockout. A built-in defrost cycle will protect the outdoor coil from freezing up when in heating mode.

Reviews

There are no reviews yet.

Be the first to review “ICM6502”

Your email address will not be published. Required fields are marked *

DETAILS:

The ICM6502 contains all functions to operate a package heat pump. Thermostat and temperature switches are provided, and on-board switching of the compressor, reversing valve, condenser and evaporator fans. The control contains auxiliary heat outputs as well.

  • Power interruption protection for the compressor
  • Random Start delay
  • 6-minute anti-short cycle timer protects compressor from rapid short cycling
  • Two stages of heating (compressor & auxiliary back up heat)
  • Low outdoor ambient compressor lockout (cooling/heating)
  • Steady state cooling
  • Low indoor coil temperature cooling shut down
  • Low outdoor coil defrost lockout (defrost mode)
  • Low indoor room ambient (RS) auxiliary heat mode
  • Front Desk shut down switch input
  • Speed up test mode reduces timing for field testing of the board

WEIGHT/DIMENSIONS:

Width: 7.50″

Height: 5.50″

SPECIFICATIONS:

Input
  • L1 & L2: 240 VAC system power connections
  • Control Voltage: 24VAC
  • G: Fan
  • W1/Y: Heat/Cool – Stage 1
  • W2: Auxiliary Heat – Stage 2
  • O: Reversing Valve
  • FD: Front Desk Switch
  • RS: Indoor Room Sensor
  • Indoor: Indoor Coil Sensor
  • Outdoor: Outdoor Coil Sensor
  • Cooling Lockout: Outdoor Ambient Sensor
Output
  • Compressor, K5, K6: 10 FLA @240 Vac
  • Low Speed Evap. Fan, K9: 2FLA @240 Vac
  • High Speed Evap. Fan, K11: 2FLA @240 Vac
  • Auxiliary Heat Stage 1, K1, K2: 21A Resistive @240 VAC
  • Auxiliary Heat Stage 2, K3, K4: 21A Resistive @240VAC
  • Reversing Valve, K8: 24 Vac 5VA
  • Condenser Fan, K7: 24 Vac 1A Pilot Duty
  • Thermostat Outputs: R (24 Vac) • Com

Replaces:

ClimaTek/First Company: CB1025, CB1026
