DETAILS:

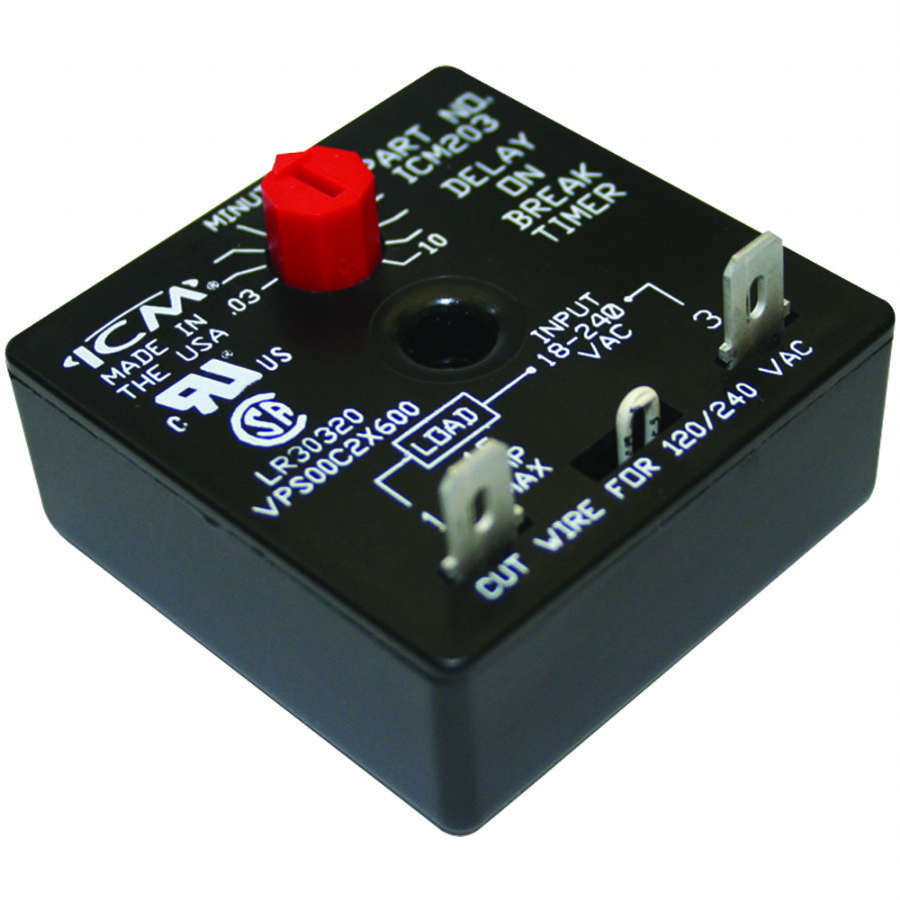

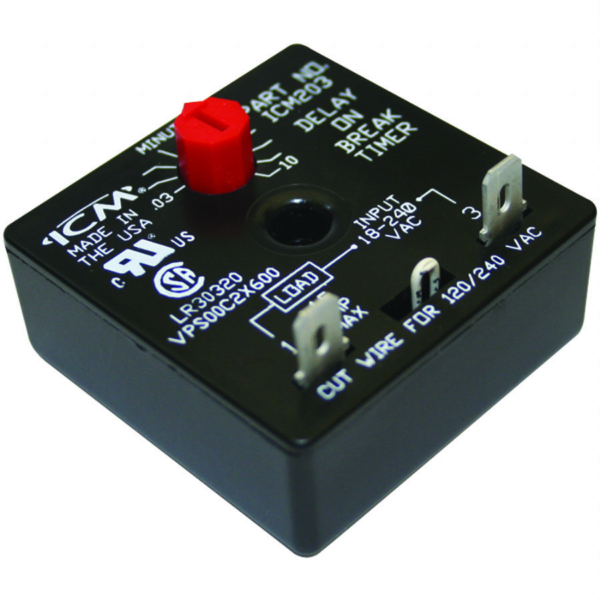

- Compressor lockout/anti-short cycle timer
- Helps to protect compressors from damage caused by rapid short cycling
- Simple, 2-wire hookup
- Adjustable timing
- Universal voltage
WEIGHT/DIMENSIONS:
- Weight: 0.1
- Height: 1.25
- Width: 2
- Length: 2
SPECIFICATIONS:
INPUT
Voltage:
8-240 VAC
1.5 amp
15 amp inrush
Knob-Adjustable Time Delay:
.03-10 minutes (1.8-600 seconds)
Replaces:
A-1: EAC-501-ADJ
Diversified: AC-503
MARS: 32001, 32387, 32392
Robertshaw: 3310-072
Supco: TD72, TD73
Wagner/DiversiTech: ADB-1
