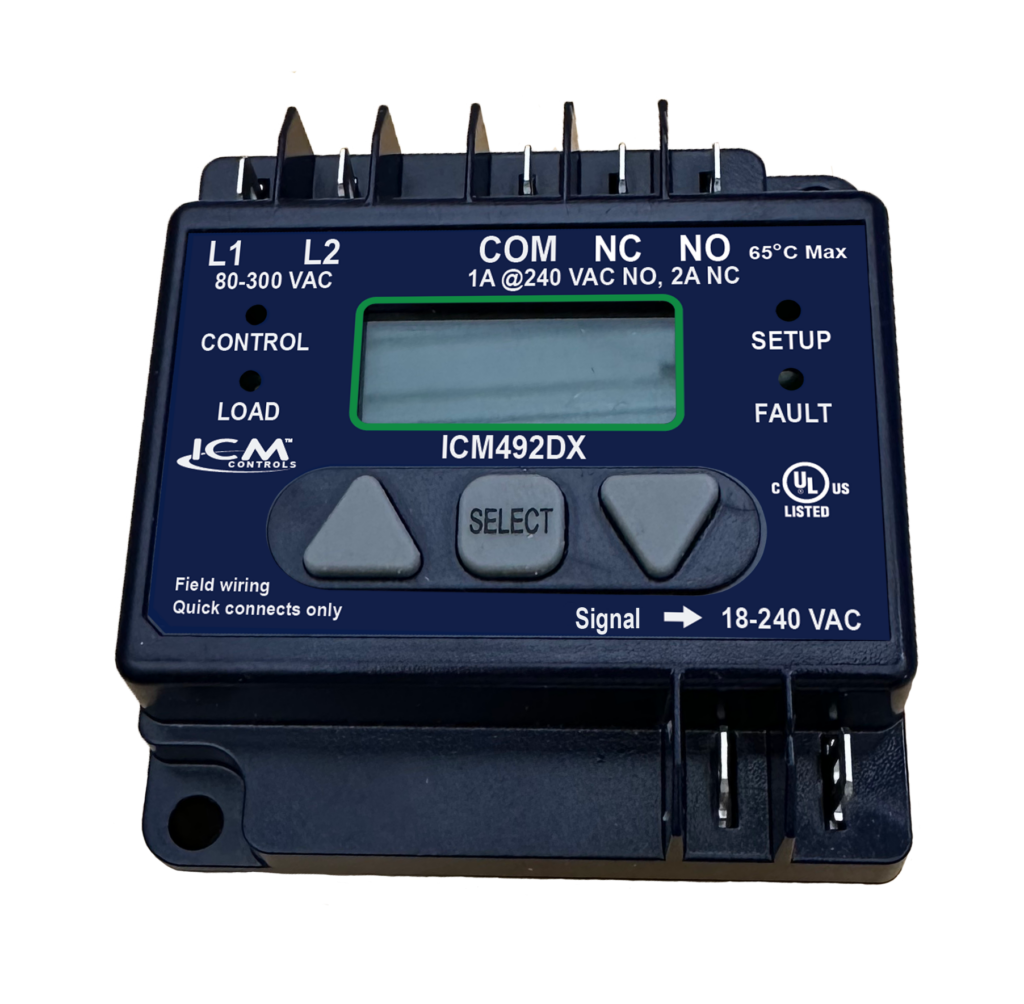

Single-Phase Line Voltage Monitor
The ICM492DX continuously monitors incoming line voltage for faults and displays RMS voltage on the digital display. When the line voltage is appropriate, the ICM492DX will close the COM and N.O. relay contacts. When the incoming line voltage is outside of the user selected parameters, the ICM492DX will close the COM and N.C. relay contacts and indicate a fault condition by flashing the fault LED.- Protects against over and under voltage, and rapid short cycling caused by transient faults and power interruptions
- Improved backlit digital display, easy to read in low light conditions
- Adjustable voltage set point
- Re-designed buttons for increased durability
- New micro-processor for improved accuracy
- Displayed voltage calibration feature to match the RMS value of a voltmeter
- Adjustable anti-short cycle time delay
- Adjustable response time
- Control mode (optional)
- 50-fault memory
- Universal line voltage input
- Heavy duty SPDT relay output
- Universal control voltage input (for integrating a thermostat)
User Adjustable Settings:
- Delay on Break (ASC): 15-720 sec.
- Over voltage: 90-300 VAC (default 253 VAC)
- Under voltage: 70-280 VAC (default 228 VAC)
- Delay on fault: 0 to 10 seconds
- Reset mode: 0 (auto) – 10 attempts
- Control mode: OFF-ON
- Language: English/Spanish
Input:
- Line voltage: 80 – 300 VAC
- Control voltage: 18 – 240 VAC
- Frequency: 50/60 Hz
- Accuracy: ±2%
- Low power consumption:
- Max 50 mA @ 120V
- Max 100 mA @ 240
Output:
- Type: Relay (Dry Contact Form C)
- Form: SPDT
- Relay contact ratings:
- N.C. Contacts: 2A @ 277V General Purpose
- N.O. Contacts: 1A Pilot Duty @ 240V
- Connection Terminals: 0.25” male fast-on
Mechanical:
- Case dimensions: 3”L x 3.2”W x 1.35”D
- Unit weight: 0.36 lbs.
Environmental:
- Operating temp. range: -20°C to + 65°C
- Storage temp. range: -30°C to + 85°C
Weight/Dimensions
- Weight: 0.255 lbs.
- Height: 1.35″
- Width: 3.20″
- Length: 3.0″
