ICM495

, ,

Disconnect with Internal Surge Protection

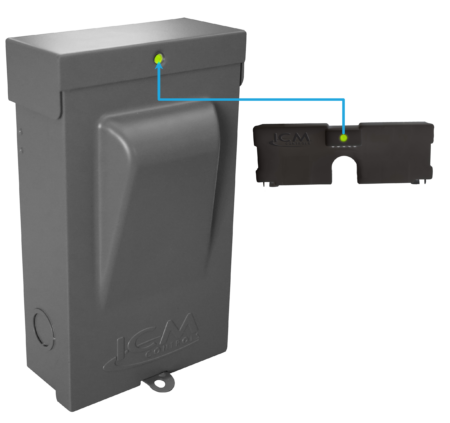

The ICM495 is a UL Listed Electrical Disconnect with an Internal Surge Protective Device built-in. The ICM495 is available in two models 30A Fused and 60A Non Fused. The included field replaceable Surge Protective Device is intended for 120VAC Single-Phase or 240VAC Split-Phase configurations. Designed to protect equipment from transient surges. The ICM495 is a great low cost option to protect some of the most valuable equipment on the property, including: Air conditioning units, heat pumps, mini-split systems, pool & spa equipment and more…

Protects against

    • Lightning strikes
    • Power outages & recoveries
    • Downed power lines
    • Startup of larger equipment
    • Equipment failure
    • Short circuits and more…

LITERARY DOWNLOADS
pdf
Sell Sheet download
pdf
Application Guide download
pdf
Warranty Information download

Description

Disconnect with Internal Surge Protection

The ICM495 is a UL Listed Electrical Disconnect with an Internal Surge Protective Device built-in. The ICM495 is available in two models 30A Fused and 60A Non Fused. The included field replaceable Surge Protective Device is intended for 120VAC Single-Phase or 240VAC Split-Phase configurations. Designed to protect equipment from transient surges. The ICM495 is a great low cost option to protect some of the most valuable equipment on the property, including: Air conditioning units, heat pumps, mini-split systems, pool & spa equipment and more…

Protects against

    • Lightning strikes
    • Power outages & recoveries
    • Downed power lines
    • Startup of larger equipment
    • Equipment failure
    • Short circuits and more…

Reviews

There are no reviews yet.

Be the first to review “ICM495”

Your email address will not be published. Required fields are marked *

DETAILS:



Feature & Benefits

  • UL Listed Electrical Disconnect including both enclosure & surge protector
  • 120VAC single-phase, 240VAC split-phase
  • Features an internal field replaceable surge protective device (ICM495-SUB)
  • Maximum Surge Current Rating of 100kA
  • Highest UL rating for nominal discharge current (in 20kA), for increased longevity & durability of the SPD
  • Constructed with 2 high-quality thermally protected MOV’s (TFMOV)
  • Completely factory wired for quick and easy installation
  • NEMA type 3R rated powder coated metal enclosure for indoor/outdoor use
  • Fully accessible mounting holes, no dissembling required
  • Braided strap thoroughly grounding both the enclosure and cover

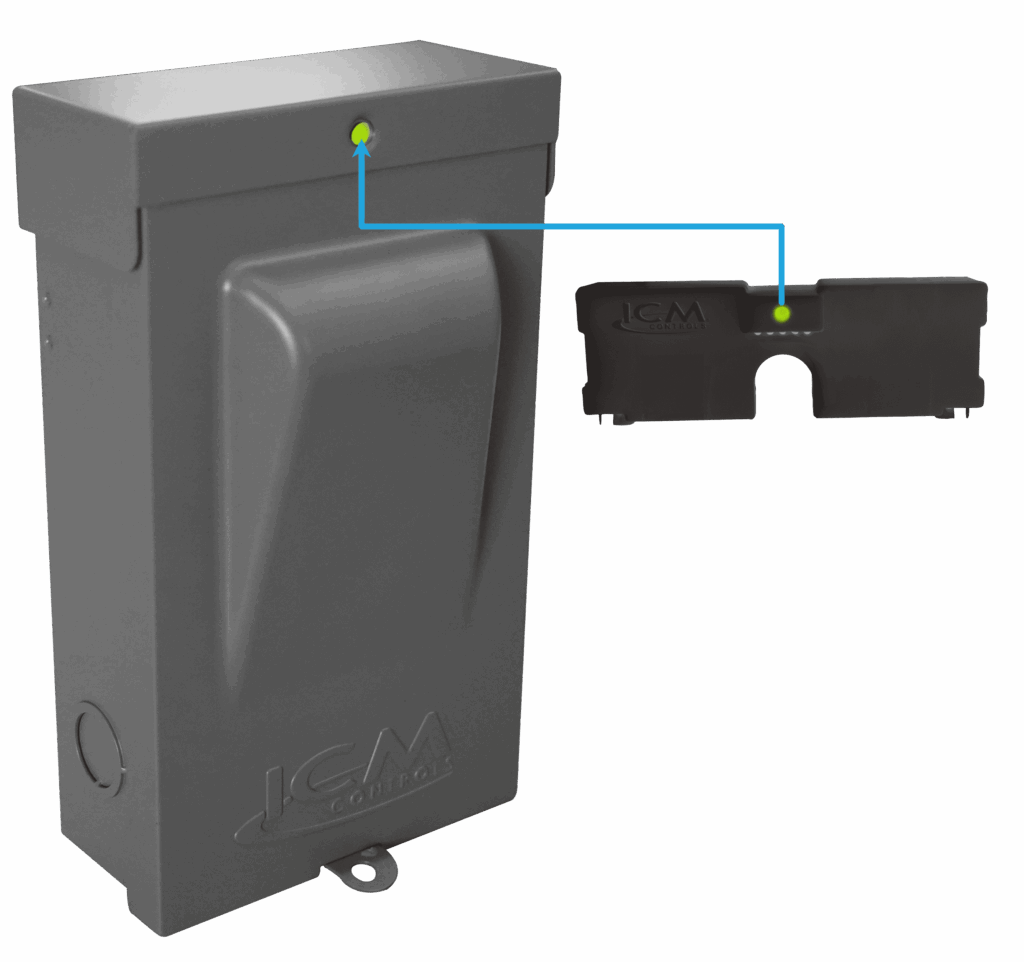

  • LED indicator light showing when surge protection is operational
  • 30A Fused & 60A non-fused models available
  • Made in the USA



WEIGHT/DIMENSIONS:

9.00” x 5.25” x 2.50”

SPECIFICATIONS:

Service Voltage: Split Phase 240 VAC; 30A at -40°C min. and 25°C max., 240 VAC; 25A at -40°C min. and 55°C max., 240VAC; 60A at -40°C min. and 55°C max.

Short Circuit Current Rating (SCCR): 10 kA

Maximum Surge Current: 100 kA (single event)

Nominal Discharge Current (In): 20 kA (15 multiple events)

SPD Type: Type 2 applications only

Surge Protection Technology: TFMOV

Protection Mode: L1-L2, L1-G, L2-G

Maximum Continuous Operation Voltage (MCOV): L-L: 300 VAC, L-G: 150 VAC

VPR (Vpk): Mode: L-L = 1200, L-N = 700

Input Power Frequency: 50/60 Hz

Diagnostics: Green LED indicates surge protection present

Enclosure Rating: NEMA/Type 3R metal enclosure for outdoor and indoor installation

Installation Point: Located within sight of the motor controller/equipment

Dimensions: 9.0” L x 5.25” W x 2.50” D

Operating Temperature: -40°F to 131°F (-40°C to 55°C)

Operating Humidity: Less than 85%, non-condensing

Operating Altitude: Less than 2000 meters

Agency Certification and Approvals: ANSI/UL1449 5th Edition cULus Listed Device

Replaces:

All standard disconnect boxes rated for equal voltage and current configurations

30A – MARS: 83916, RectorSeal: 96417 w/ RSH-50

60A – MARS: 83915, RectorSeal: 96419 w/ RSH-50
