Description

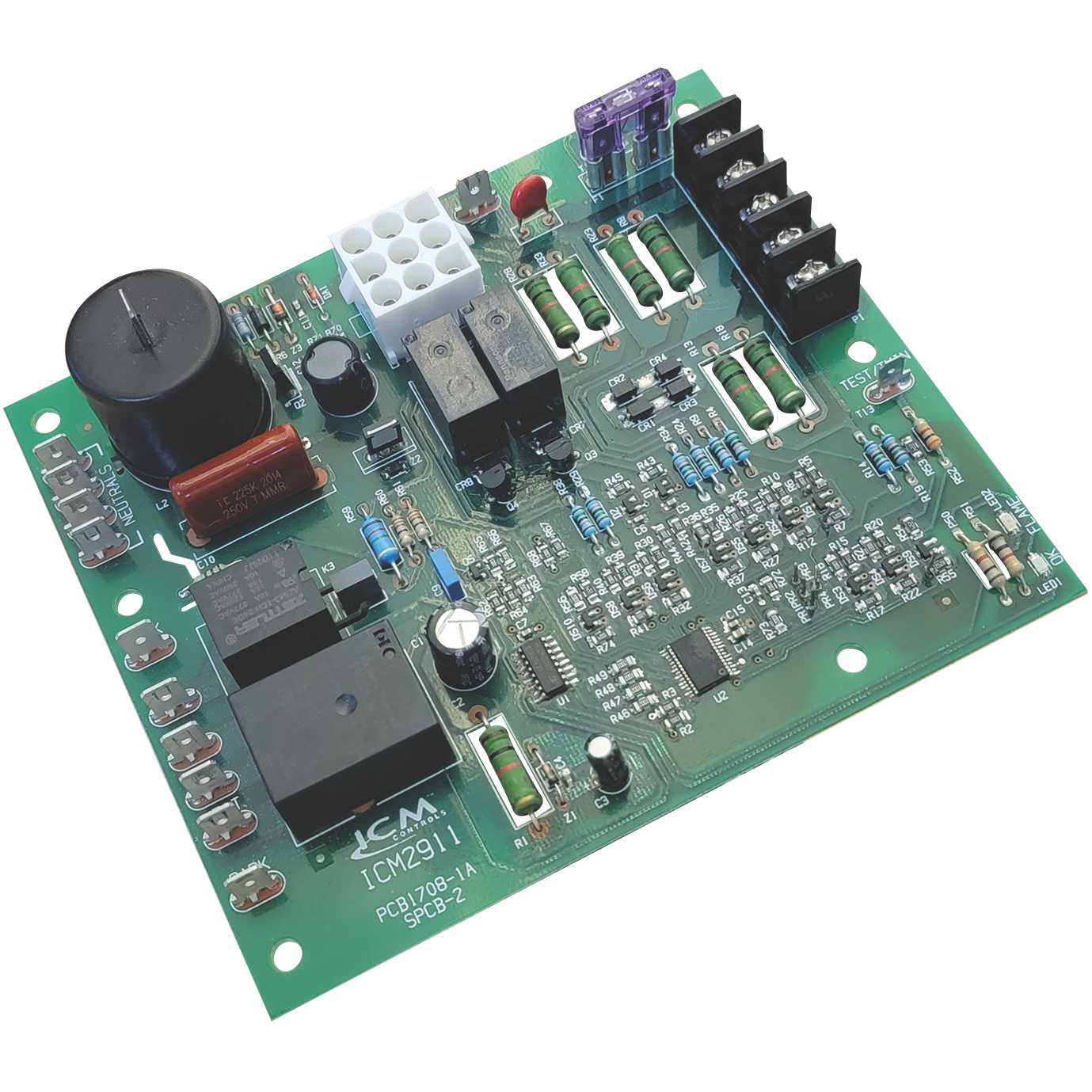

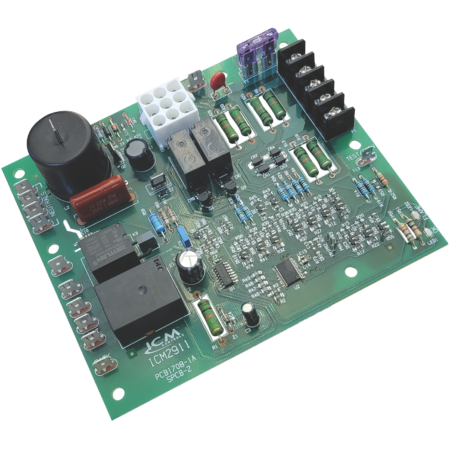

Modine Replacement Direct Spark Ignition (DSI) control board
ICM2911
Modine Replacement Direct Spark Ignition (DSI) control board
DETAILS:
Modine Replacement Direct Spark Ignition
√ Microprocessor-based
√ Monitors system timing, trial for ignition, system switches, flame sensing and lockout
√ 100% lockout safety feature monitors for repeated over-temperature faults or flame losses and disables the heat operation for safety
√ Continuously monitors the gas valve output to verify the gas valve does not turn on or off incorrectly
√ Compatible with LP or natural gas
√ LED indication for status and fault codes to aid in troubleshooting
√ Twinning feature allows two furnace boards to be controlled with a single thermostat
√ Field test mode
WEIGHT/DIMENSIONS:
Height: 3″
Width: 5″
Length: 6″
SPECIFICATIONS:
■ Input
- Line voltage: 120 VAC
- Control voltage: 18 – 30 VAC
- Frequency: 50/60 Hz
■ Output
- Spark ignition: 12kV O.C.V., 60Hz
- Heat blower: 15 FLA/30 LRA @ 277 VAC
- Inducer fan: 1/2 HP, 9.8FLA/58.8LRA @120 VAC
- Gas valve: 2.3A Pilot Duty @ 240 VAC
■ Environmental
- Operating temperature: -40°F to 149°F (-40°C to 65°C)
Replaces:
Modine Spark Ignition Control: 5H79749
