Description

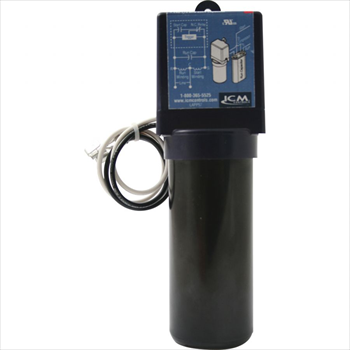

UNIVERSAL MOTOR STARTING RELAY
For 1/12 to 5 HP Applications
ICM866U
UNIVERSAL MOTOR STARTING RELAY
For 1/12 to 5 HP Applications
LITERARY DOWNLOADS
Sell Sheet
download
DETAILS:
The most advanced universal hard start kit on the market! Rated for 1/12 to 5HP applications, the ICM866U combines award-winning, high-powered relay output design with advanced patented circuitry for greater precision and reliability!
Patented circuitry with differential voltage sensing technology
– Monitors differential compressor auxiliary voltage
– Precisely engages/disengages the start capacitor
– Not affected by ambient temperatures
– Recycles instantly
Self-adjusting to changes in voltages
– Does not rely on relay with pre-set, factory default ranges
– Eliminates guesswork in “tweener” applications
– Extends motor life
Rated for 1/12 to 5 HP applications
– Reduces inventory, saves $$$
– One model is all you need
Simple, two-wire installation
– Faster install time
– Minimizes risk of accidental miswires
Multi-voltage operation – 115 or 230 VAC motors
145-175 µF @ 330V
UL Recognized
WEIGHT/DIMENSIONS:
- Weight: 0.5
SPECIFICATIONS:
• Multi-voltage operation – 115 or 230 VAC motors
• 145-175 µF @ 330V
• Recommended Range: 1/12 to 5 HP application
• UL Recognized
Replaces:
SUPCO: SPP5, SPP6, SPP5E, SPP6E, SPP7E, SPP8E, SPP9E, SPP10E
KICKSTART: KS1, TO-5, KS8
5-2-1: CSR-U1, CSR-U2, CSR-U3
WATSCO: WSX1
MARS: 32708, SS1, SS5, 32703, 32704, 32701, 32702
DIVERSITECH: DST-5, DST-6
