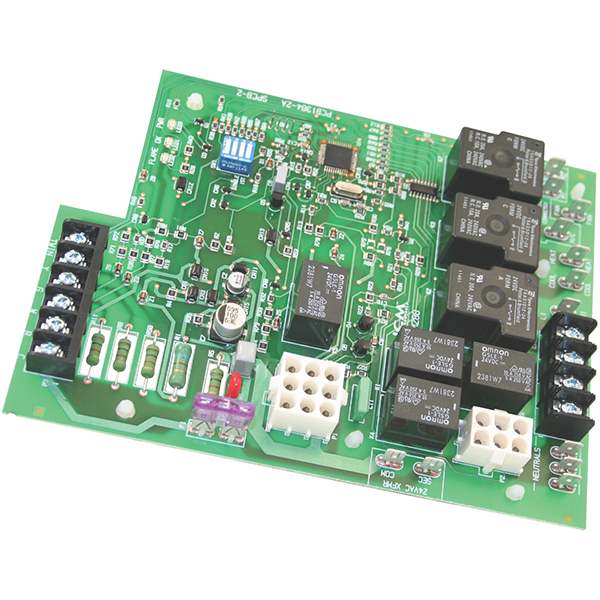

ICM288

,

Rheem OEM Replacement Control

Low-Cost Form, Fit And Functional Replacement Board

The ICM288 control is a low cost form, fit and functional replacement for Rheem 62-24084-82 circuit boards that monitors pressure, roll-out and limit switches. ICM288 controls gas valve, inducer draft motor, circulating blower and hot surface ignitor.

DETAILS:

  • Low cost form, fit and functional replacement for Rheem 62-24084-82 circuit boards
  • Microprocessor-based design
  • Monitors pressure, roll-out and limit switches
  • Controls gas valve, inducer draft motor, circulating blower and hot surface ignitor
  • Reverse polarity detection
  • Twinning compatible with other ICM288 control boards
  • Diagnostic LEDs for testing/troubleshooting

SPECIFICATIONS:

Voltage Range: Line 98-132 VAC @ 60 HZ
Ignitor: 5A, 120 VAC
Cool Blower: 10A, 2 HP, 240 VAC
Heat: 5A, 1/2 HP, 250 VAC
Inducer Blower: 4A, 120 VAC
Gas Valve: 1A, 24 VAC
Humidifier Motor: 0.5A, 24 VAC
Electronic Air Cleaner: 1A, 120 VAC

WEIGHT/DIMENSIONS:

Weight: 0.55
Height: 1.5
Width: 5.75
Length: 7.5

LITERARY DOWNLOADS:

pdf
Sell Sheet download
pdf
Application/Install Guide download

Videos:

No videos found.

Replaces:

Rheem: 62-24084-82
