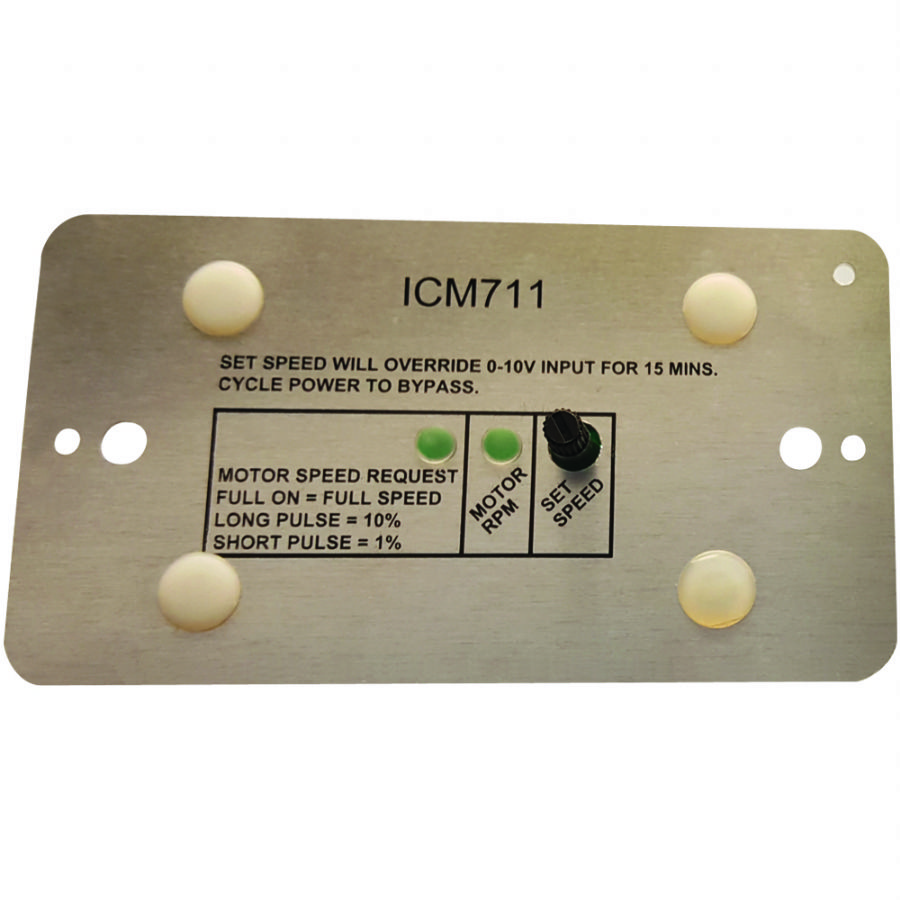

ICM711

ECM CONTROLS, MOTOR SPEED CONTROLS

Motor Speed Controls

GE 2.3 ECM Controller

The ICM711 is used to control the speed of a GE 2.3 ECM by automated control systems or manually via potentiometer.

DETAILS:

Controls the speed of an Electronically Commutated Motor (ECM) by automated control systems via a 0-10 VAC input (SIGNAL & COMMON), or manually via potentiometer (SET SPEED).
Provide motor speed feedback via visual LED indication (MOTOR RPM) as well as a 0-10 VAC output (RPM & COMMON) to supply an automated control system.

SPECIFICATIONS:

INPUT

Power: 18-30 VAC, 60 Hz
Set Speed: Potentiometer, 0-10 VDC

OUTPUT

PWM: On/Off (10mA max)
RPM feedback: 0-10 VDC

WEIGHT/DIMENSIONS:

Weight: 0.09
Height: 4.25
Length: 2.25

LITERARY DOWNLOADS:

Sell Sheet download

Application/Install Guide download

Videos:

No videos found.

Replaces:

EVO™/ECM-ACU+–S1
