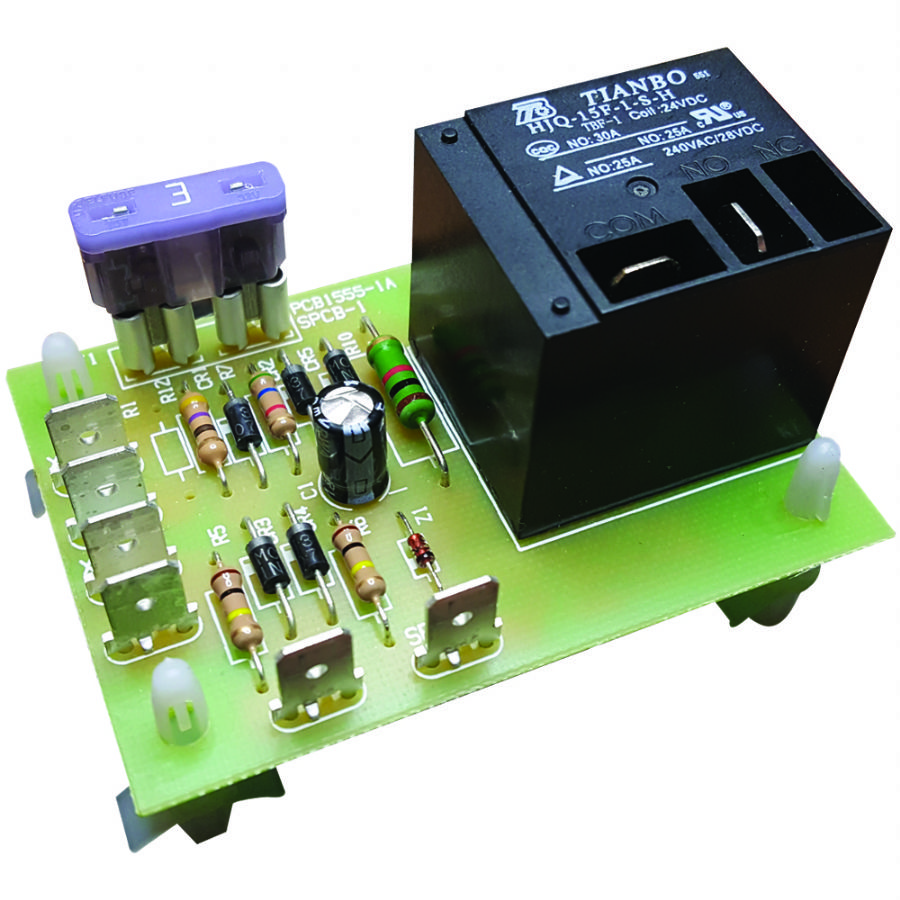

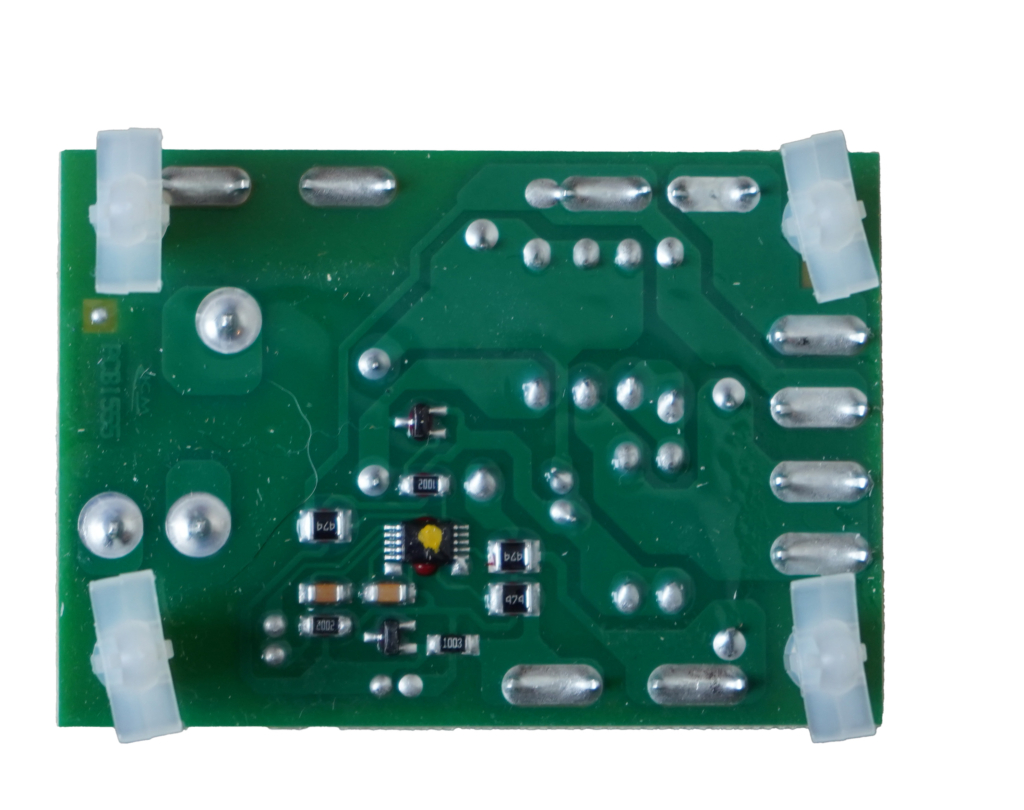

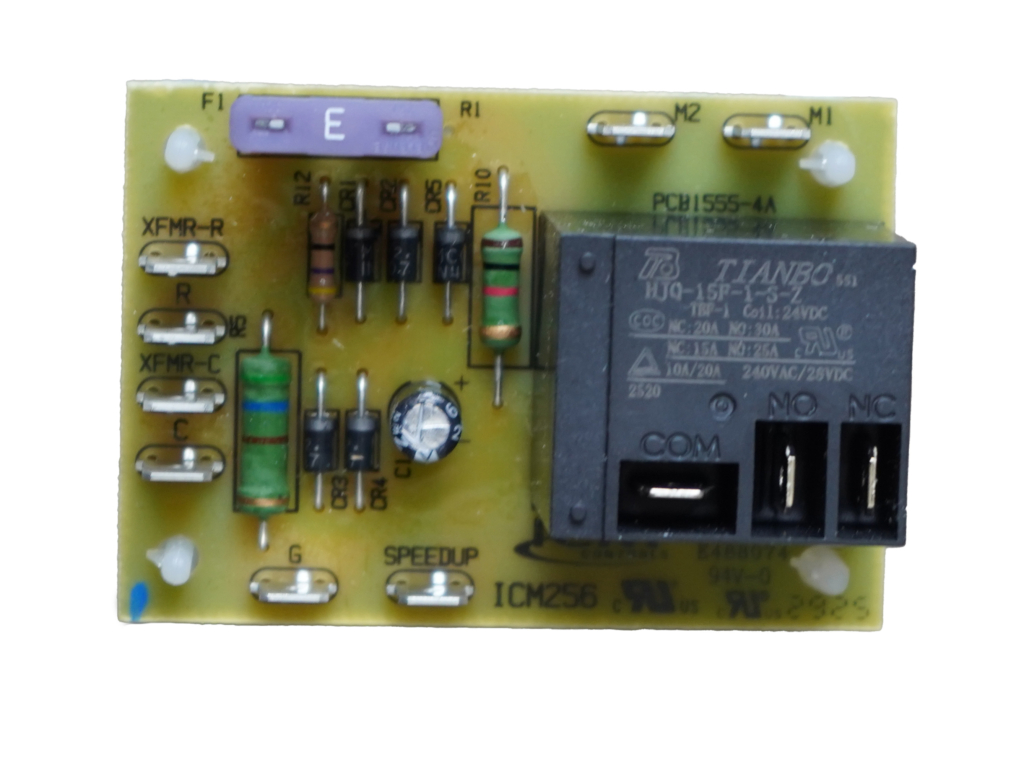

Post Purge Fan Timer
Fan post purge timer to control circulating fan in forced air systems.- Fan post purge timer to control circulating fan in forced air systems
- Dual function 7 second ON delay / 65 second OFF delay
- Speed up terminals for test mode
- Fuse protected control voltage
- High power relay output
Input:
- Voltage: 18-30 VAC
- Frequency: 50/60 Hz
Output:
- N.O.: 25 amps @ 240 VAC
Fixed Time Delays:
- On: 7 seconds
- Off: 65 seconds
Weight/Dimensions
- Weight: 1 lbs.
- Length: 2.00″
- Width: 2.85″
- Height: 2.00″
Goodman: PCBFM-103
