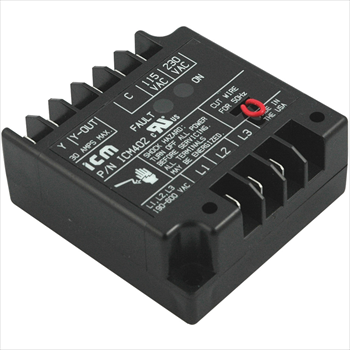

ICM402
3-Phase Line Voltage Monitor
Low-cost 3-phase equipment protection. Monitors for phase reversal, phase loss, phase unbalance.- Low cost 3-phase protection for single side
- Monitors for phase reversal, phase loss, unbalance % as a function of input voltage
- Bright LED indicators for ON and FAULT
- Universal 3-phase input: 190-600 VAC
- Highly reliable passive electronics
- Epoxy coated for added protection
- Patented: U.S. Patent No. 5,337,206
Input:
- Line Voltage: 190-600 VAC
- Control Voltage: 115 or 208/230 VAC
- Frequency: 50/60 Hz
Output:
- Relay, SPDT
- N.O. 30 amps
Weight/Dimensions
- Weight: 0.45
- Height: 1.25″
- Width: 3″
- Length: 3.25″
Supco: TPMP2
Mars: 32536
