Air Handling Controller
Fan Controls
ICM271
Air Handling Controller
Fan Controls
ICM271

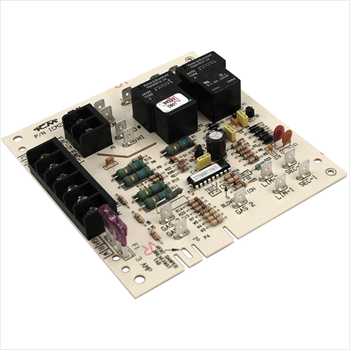

Carrier OEM Replacement Control
A reliable solid state fan blower control which is specifically designed to replace popular gas furnace controls.- Reliable solid state fan blower control
- Pin selectable blower delays
- High power, relay output
- Dual function fan delay timer
- Controls the circulating fan in HP, A/C and forced air systems
- OFF delay purges ducts of residual air
- ON delay allows air to reach the proper comfort level prior to energizing the fan
Input:
- Voltage: 18-30 VAC
Contact Ratings:
- N.O.: 20 amps
- N.C.: 10 amps
Fixed Time Delays:
- Heat ON: 75 seconds
- Heat OFF: 105 seconds
- Cool OFF: 90 seconds
Weight/Dimensions
- Weight: 0.45 lbs.
- Height: 1″
- Width: 5″
- Length: 5.25″
Replaces:
Carrier: 302075-3, CES0110017, CES0110018, HH84AA010, HH84AA011, HH84AA012, HH84AA013, HH84AA020, P771-7002
Robertshaw: 695-100
