A2L Refrigerant Detection System
ICM-A2L-Sensor
A2L Refrigerant Detection System
ICM-A2L-Sensor

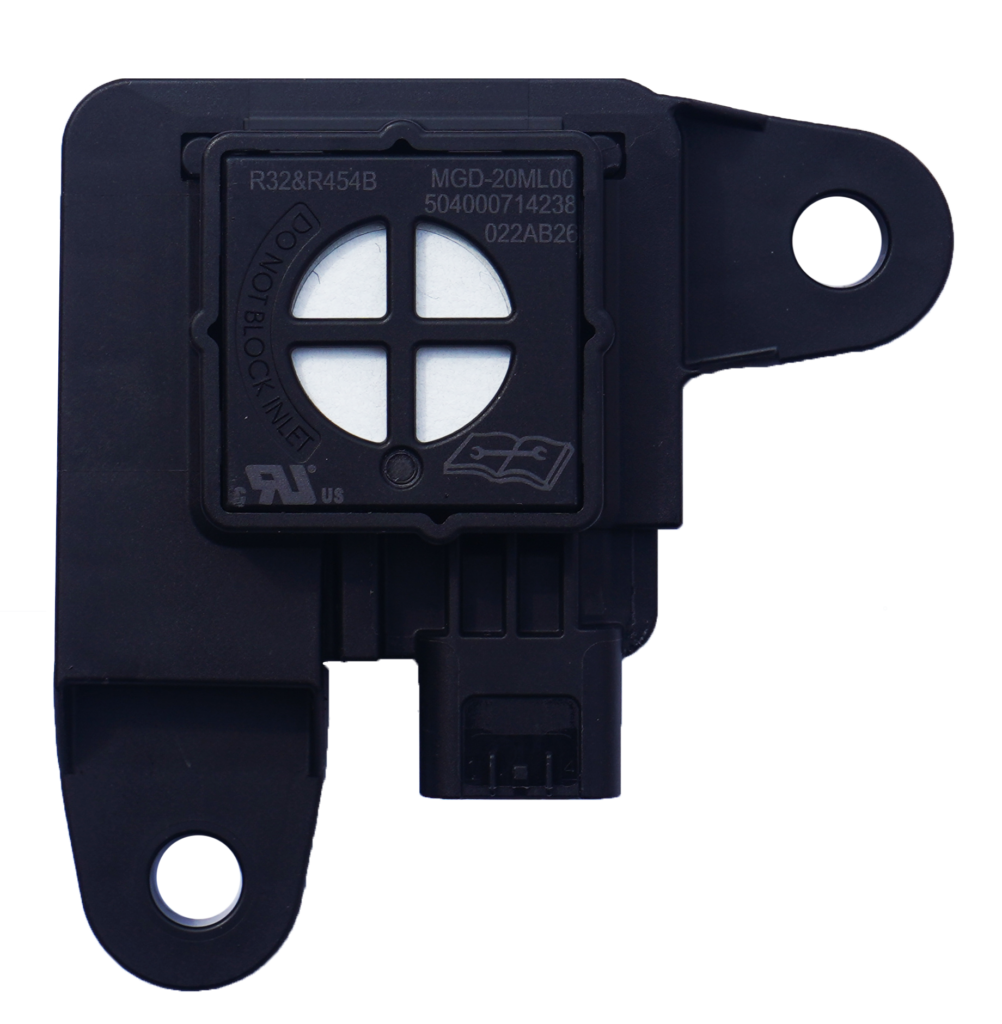

Dual Refrigerant Leak Sensor
A2L refrigerant leak sensor designed to detect leaks of mildly flammable A2L refrigerants, including R454B and R32, helping initiate critical safety measures before refrigerant concentrations reach ignitable levels. Engineered for seamless integration into HVAC and refrigeration equipment, this sensor utilizes advanced speed-of-sound technology to deliver high accuracy and fast response times.
Built for demanding environments, the sensor offers exceptional resilience in high humidity and condensation conditions compared to leading gas sensing technologies. Its robust design minimizes maintenance requirements, giving OEMs and end users greater reliability, long-term performance, and peace of mind.
Compatible with ICM-UA2L-24C-DUAL- Short warm up time: <5 seconds
- No calibration or re-zeroing required
- No false alarms due to fouling gases
- Industry leading response and start-up time
- Immune to poisoning
- Robust, solid-state design
- Equipped with speed of sound technology
- No moving parts
- No degradation in the event of continuous refrigerant exposure
- EPDM between housing and PCBA around sense element to protect electronics from environmental intrusion
- Recognized to UL60335-2-40
- Widest operating temperature range: -40°C to 105°C
- Response time: T28 of 2.5s, T60 of 5s (average)
- Low power consumption: <40 mA max
- Operating humidity: 0 to 100%RH (condensing)
- IP54
- UL 94 V0 rated
Weight/Dimensions
- Length: 2.28″
- Width: 1.97″
- Height: 0.71″
