Multi-Functional Timer
When Mode B is selected and the unit is in the timed cycle (clock dip switches in the on position), the load will be turned on with the backup source. At the end of the timed cycle, the unit will return to normal operation until the next preset interval occurs.
If Mode A is selected, the load will be off during the timed cycle and the backup source will be on. At the end of the timed cycle, the unit will return to normal operation until the next preset interval occurs.
- Timed or manual termination
- Adjustable 15 minutes to 23 hours 45 minutes defrost cycle
- High power relay outputs
- 100% monitoring of inputs and outputs
- Simple to use, drag & drop replacement for popular models
- User-friendly time clock
- Control with enclosure: Order ICM550-ENC
- Enclosure not sold separately
Weatherproof Enclosure Ratings
- Rugged, NEMA/TYPE 4X rated plastic, weatherproof enclosure
- Easy to mount and lockable
- Helps to protect controls from harsh environmental conditions such as temperature, shock, humidity and vibration
- Order: ICM550-ENC
Input:
- Nominal Voltage Range: 120-240VAC
- Frequency: 60 Hz
Output:
- Type: Relay
Environment:
- Operating temperature: -40 to +131°F
- Operating humidity: 0-95%, non-condensing
Mechanical:

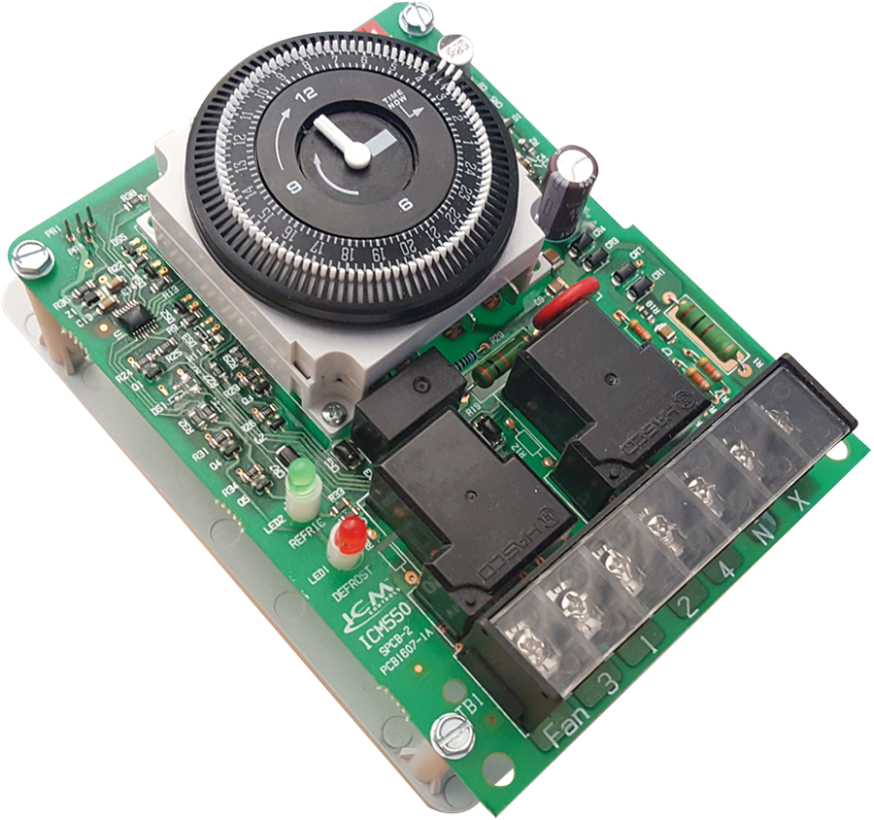

- Construction: Open board (plastic bracket mounted). The ICM550-ENC comes packaged in a NEMA Type 4X rated weatherproof enclosure
- Mounting: Vertical or horizontal orientation
Contact Ratings:
- Compressor: [2]&[4]: 30A R, 1HP @ 120 VAC, 2HP @ 240 VAC
- Electric heat: [1]&[3]: 40A R, 1HP @ 120 VAC, 2HP @ 240 VAC
- Fan: [1]&[F]: 30A R, 1HP @ 120 VAC, 2HP @ 240 VAC
Timing:
- Minimum cycle time: 15 min
- Maximum cycle time: 23 hr 45 min
- Terminate cycle: Cycle can be terminated by shorting “X to N”
Status LED:
- Cycle mode: (Red LED)
- Normal mode: (Green LED)
Weight/Dimensions
- Length: 6.00”
- Height: 3.12”
- Width: 4.50”
Intermatic / Grasslin: 010-0011B, DT040, DT140, DTAV40, DTAV40M, DT-B, DTMV, DTSX
Paragon: 8041, 8045, 8047, 8141, 8143, 8145, 8245, 8247
Precision: 6041, 6045, 6047, 6141, 06145
