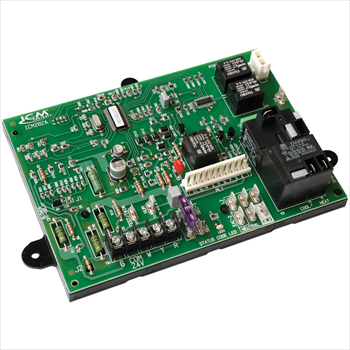

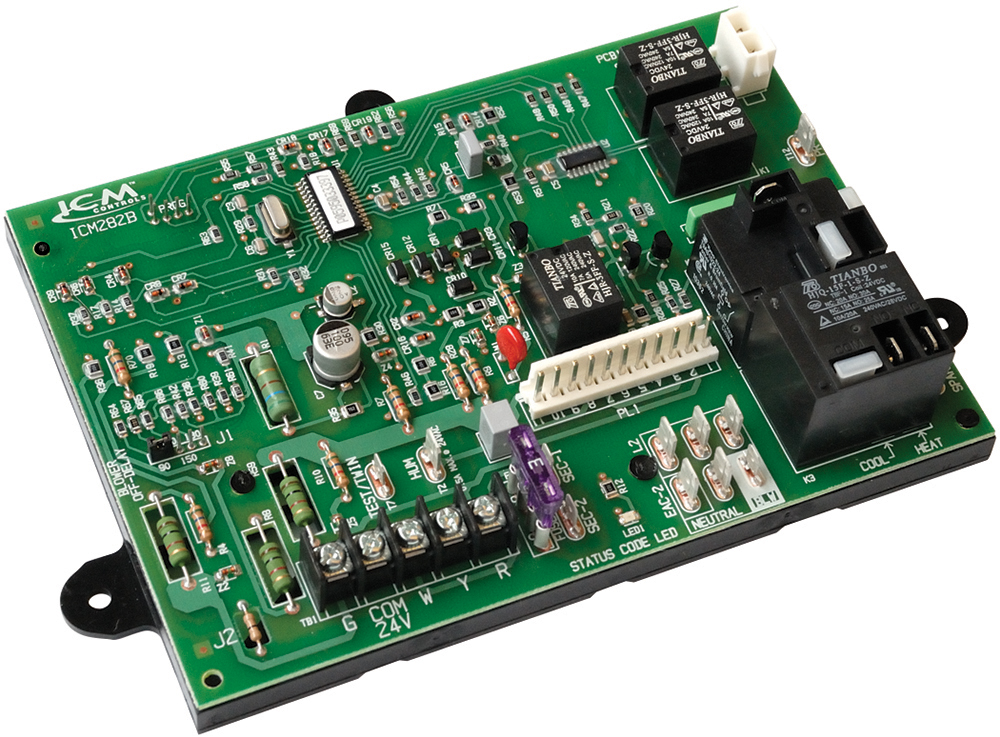

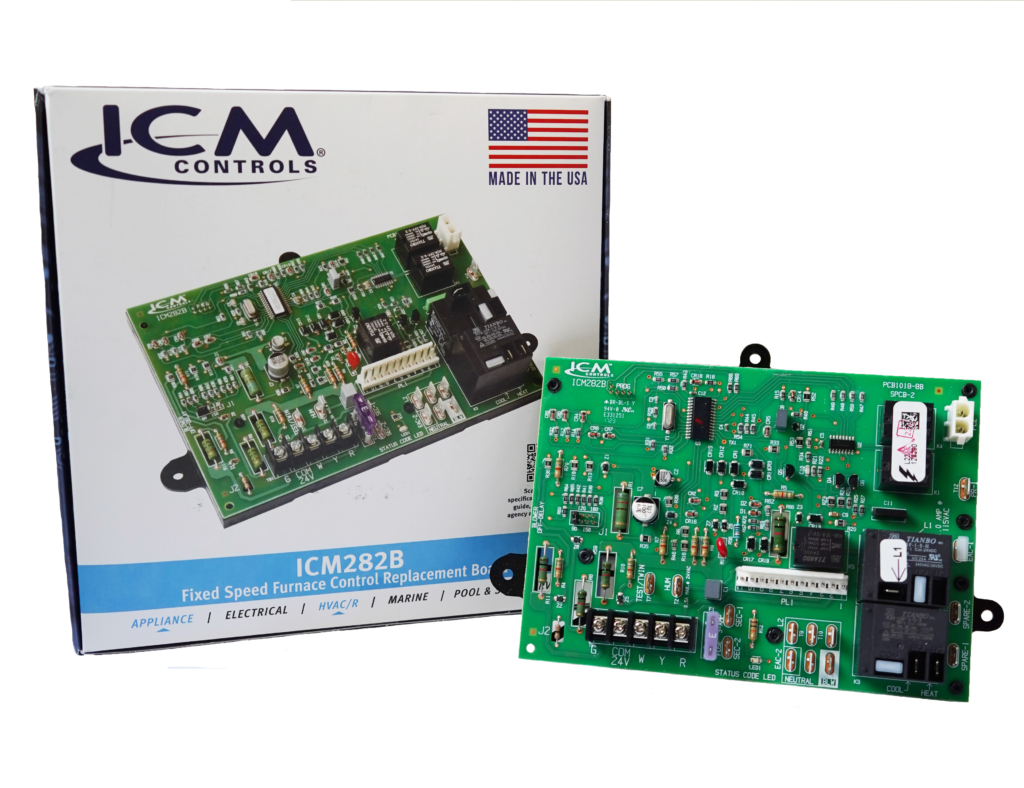

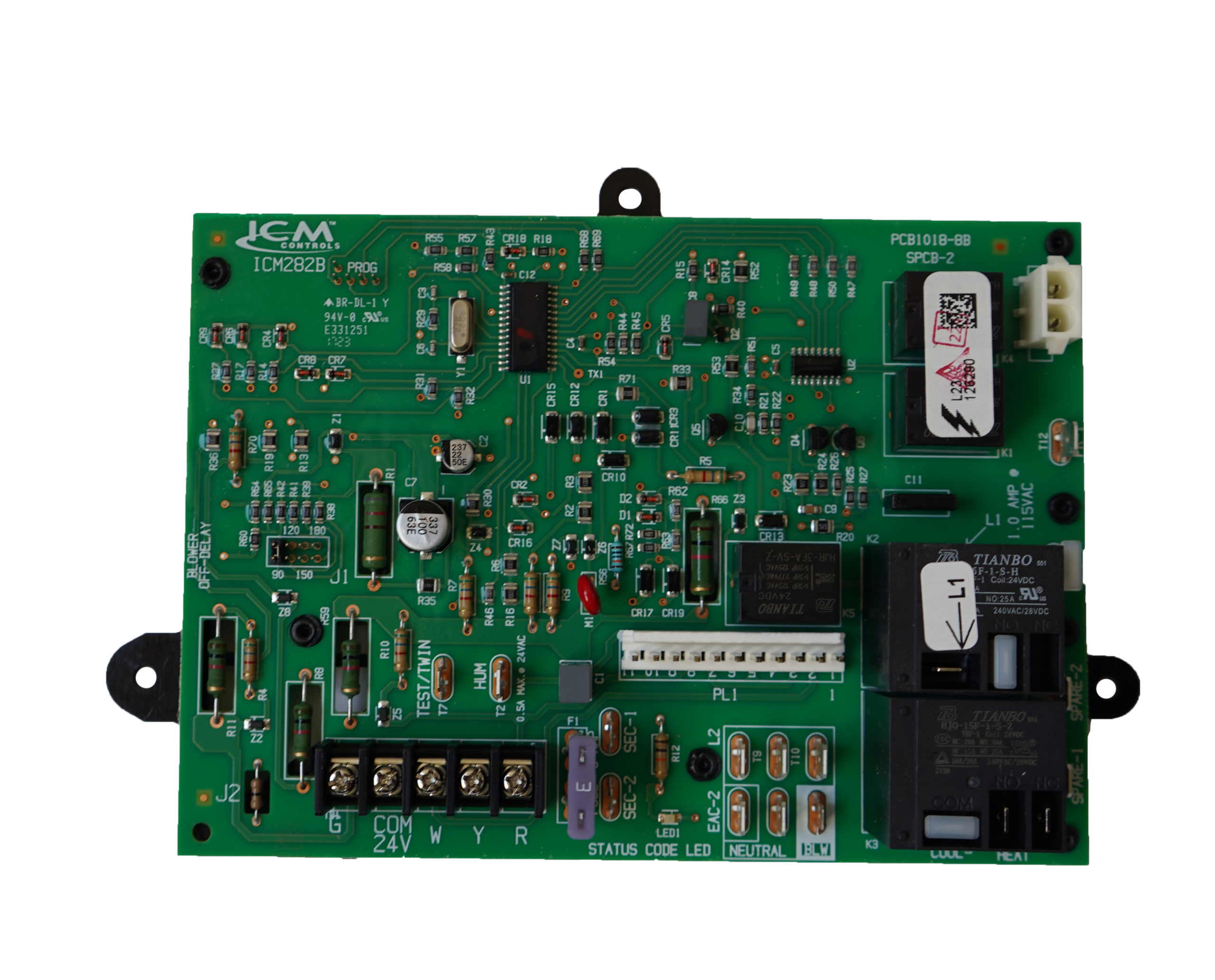

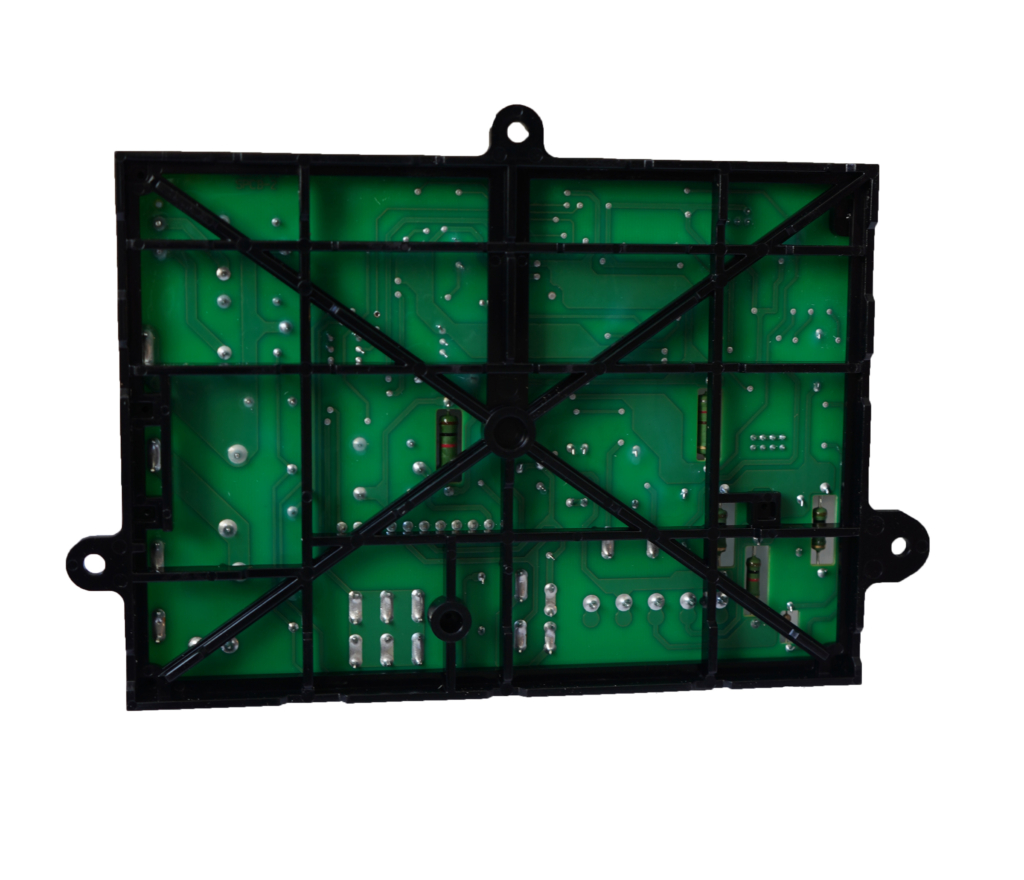

ICM282B

, ,

The ICM282B is a popular, low cost, OEM replacement furnace control for the Carrier HK42FZ034, HK42FZ004/007/008/009/011/013/016/034. It controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner.

DETAILS:

The ICM282B is a low cost, Carrier OEM Replacement Furnace Control Board.

  • Popular replacement for Carrier HK42FZ004/007/008/009/011/013/016/034
  • Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
  • Microprocessor-based
  • Designed for 100% gas shutoff in case of ignition failure
  • Twinning compatible with other ICM282B boards
  • Reverse polarity protection
  • Secondary brownout voltage protection
  • Compatible with a 24 VAC standard thermostat
  • Provides diagnostic LED to aid in troubleshooting

SPECIFICATIONS:

• Voltage Range: Line (98 to 132 VAC) @ 60 Hz
• Ignitor: 5A @ 120 VAC
• Cool Blower: 10A @ 120 VAC
• Heat: 5A @ 120 VAC
• Inducer Motor: 4A @ 120 VAC
• Gas Valve: 1.5A @ 24 VAC
• Humidifier: 0.5A @ 24 VAC maximum
• Electric Air Cleaner: 1A @ 120 VAC

WEIGHT/DIMENSIONS:

  • Weight: 0.55
  • Height: 1.5
  • Width: 8
  • Length: 5

LITERARY DOWNLOADS:

pdf
Sell Sheet download
pdf
Application/Install Guide download
pdf
Wiring Diagram - 80 download
pdf
Wiring Diagram - 90 download
pdf
Service Label download

Videos:

No videos found.

Replaces:

Carrier: CEBD431012-01A, CEPL131012-01, HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011, HK42FZ013, HK42FZ016, HK42FZ034 and 325878-751
