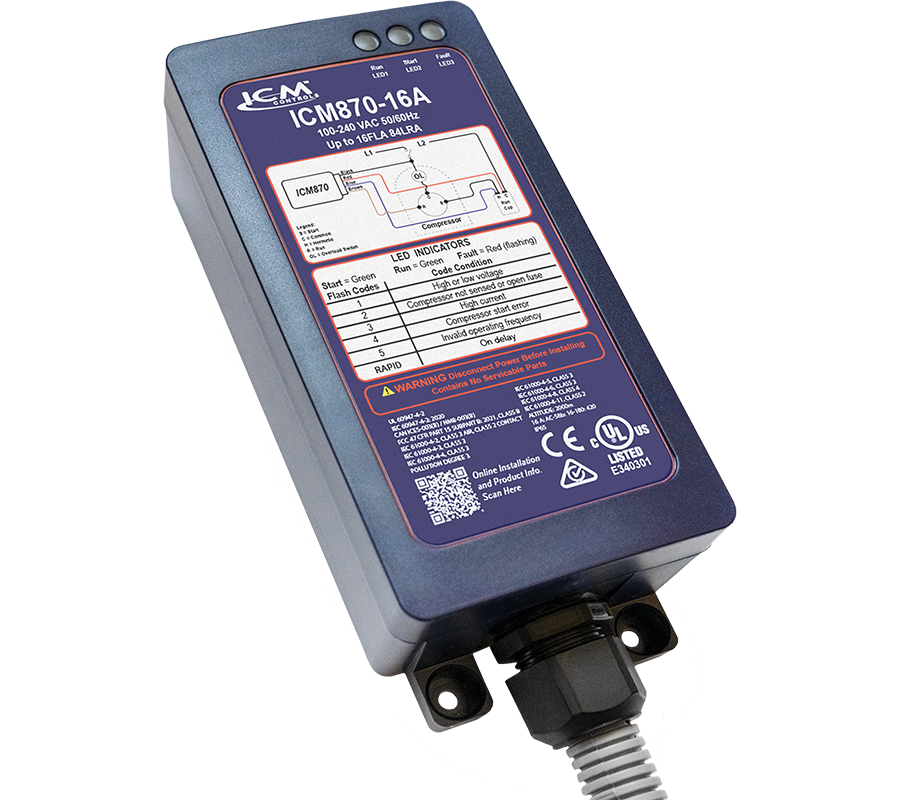

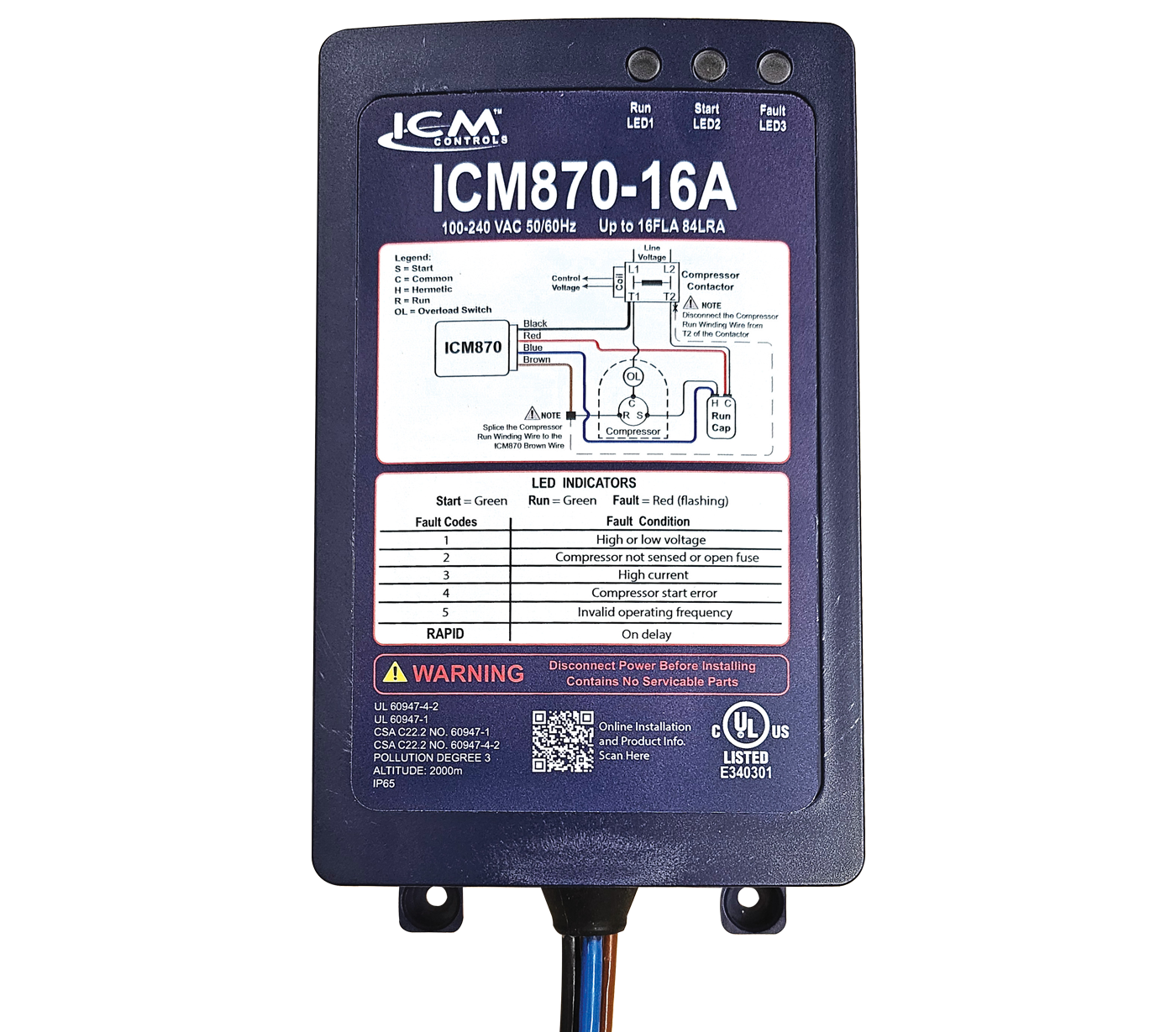

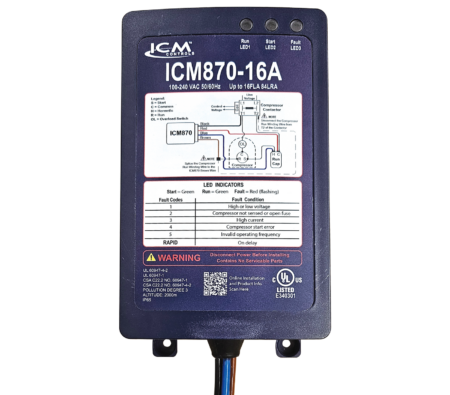

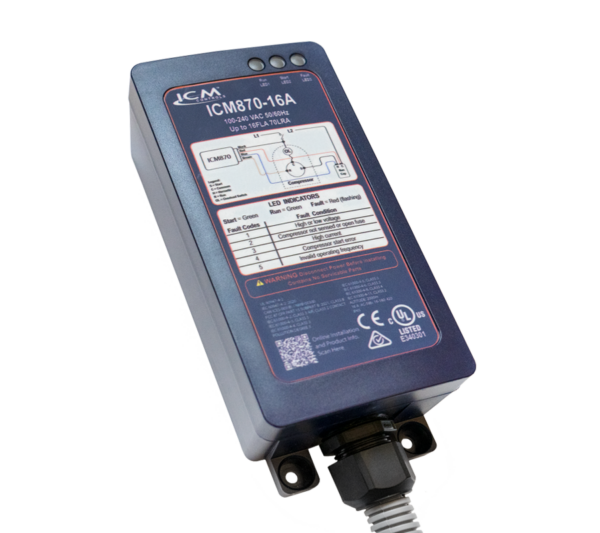

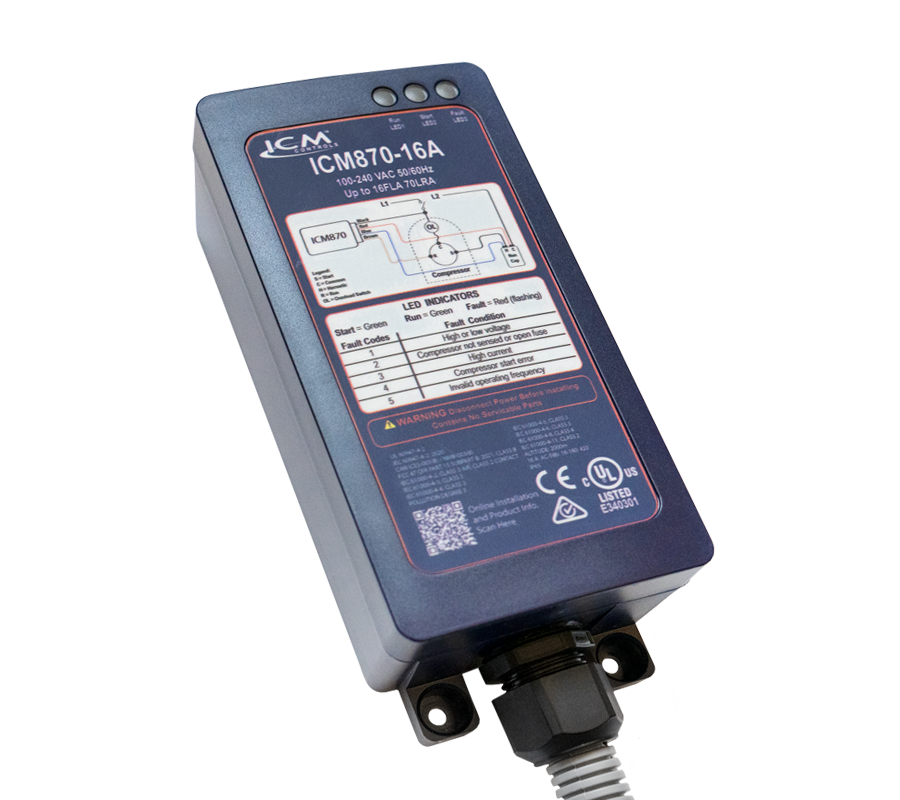

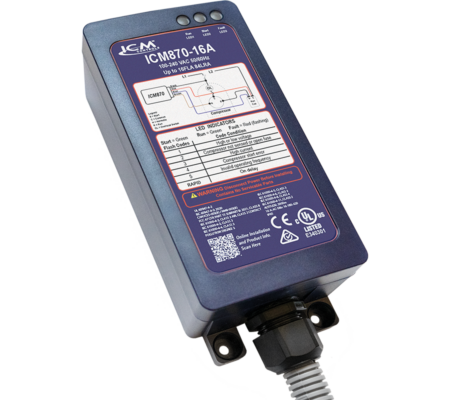

ICM870

, ,

9A & 16A Soft Starts



The ICM870 Soft Start is intended for RV, marine, residential and commercial applications. The ICM870 integrates compressor or motor in-rush current over startup time, thus reducing peak current demand on a power supply source by up to 70%.

The ICM870 will monitor system health including voltage, current, compressor startup and integrity. Utilizing a built-in self learning algorithm the ICM870 soft start delivers peak in-rush current per application.

Upon a fault condition, the ICM870 will halt operation and initiate a 3 minute anti-short cycle routine while providing diagnostic fault information by means of an LED indicator.



Related Article:

Learn more about the benefits of a soft start in residential applications here.



LITERARY DOWNLOADS
pdf
Application/Install Guide download
pdf
Sell Sheet download

Description

9A & 16A Soft Starts



The ICM870 Soft Start is intended for RV, marine, residential and commercial applications. The ICM870 integrates compressor or motor in-rush current over startup time, thus reducing peak current demand on a power supply source by up to 70%.

The ICM870 will monitor system health including voltage, current, compressor startup and integrity. Utilizing a built-in self learning algorithm the ICM870 soft start delivers peak in-rush current per application.

Upon a fault condition, the ICM870 will halt operation and initiate a 3 minute anti-short cycle routine while providing diagnostic fault information by means of an LED indicator.



Related Article:

Learn more about the benefits of a soft start in residential applications here.



Reviews

There are no reviews yet.

Be the first to review “ICM870”

Your email address will not be published. Required fields are marked *

DETAILS:

Soft Starter

  • Reduces in-rush current by up to 70%
  • Over-current protection
  • Over/under voltage monitoring
  • Built-in start capacitor
  • Built-in self-learning algorithm
  • LED fault indicators
  • Ultrasonic sealed tamper-proof enclosure
  • Installation hardware is included





WEIGHT/DIMENSIONS:

7.63” x 3.19” x 2.13”



SPECIFICATIONS:

Semiconductor soft-start motor controller, Form 2, bypassed controller

• SCCR: 5kA   • Ue = 240 VAC   • Ui = 240 VAC   • Uimp = 4kv

• FCC Class B   • Pollution degree 3   • UL File E340301   • UL 60947-4-2 and IEC 60947-4-2



Input:

(L1, L2) – 100-240 VAC 50/60Hz

• Over voltage limits: 115 VAC nominal = 140 VAC 240 VAC nominal = 250 VAC

• Under voltage limits: 115 VAC nominal = 95 VAC, 240 VAC nominal =195 VAC



Outputs:

Compressor

• Solid state/relay

• Current: Max. nominal = 9 FLA for ICM870-9A, 16 FLA for ICM870-16A

• Over current limits: ICM870-9A = 11.25A, ICM870-16A = 20A



Environmental:

• Ambient temperature: 40°C @ 16 FLA, 8 h duty

50°C @ 16 FLA, Temporary duty F = 30% (3 mins ON and 7 mins OFF), S = 6 (6 cycles per hour)

• Storage temperature: -40°F to 149°F (-40°C to 65°C)

• Humidity: 0-95% non-condensing

• Enclosure: IP65

• Dimensions: ICM870-9A/16A (7.60” x 3.20” x 2.10”)

• Screw Hole Center Points: 7.36” x 2.90”



REPLACE/CROSS REFS

 ICM 9A & 16A models cross to the comparable amperage models:

Dometic (Smart Start)

Micro-Air (Easy Start)

Network RV (Soft Start)

Hyper Engineering (Sure Start)
