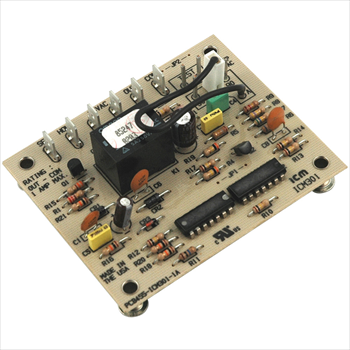

Goettl and Rheem OEM Replacement Control
Details Specifications Install Guide Replaces
  • Low-cost, time and temperature defrost
  • Sensor input for defrost terminate
  • Time and temperature terminate
  • Test pins reduce test time by 256X
  • HOLD input accumulates actual compressor run times

Input

  • Voltage: 18 to 30 VAC
  • Frequency: 50/60 Hz
  • Power Consumption: 1 watt maximum

Output

  • Rating
    • Type: Relay
    • Form: SPST, Normally Open
      • Rating: 1 amp

Time Delay

  • Defrost Time: Fixed 10 minutes
  • Interval Time Between Defrosts: Pin-selectable 30/60/90 min
Weight/Dimensions
  • Weight: 0.1 lb.
  • Height: 1″
  • Width: 3.5″
  • Length: 2.875″
Installation Guide
Download
Wiring Diagram
Download

Goettl: 305007

ICM: DFOSP24A2

Rheem: 47-21776-06



Recommended Alternative: No suggested alternative
