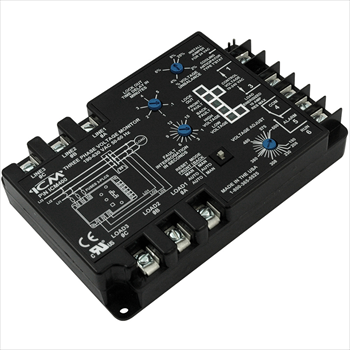

Three-Phase Voltage Monitor
The ICM400 evaluates the incoming power for proper phase sequence, amplitude, and symmetry (voltage unbalance). If the three phase input at the line side connections is within user set parameters, the internal relay is energized, and the load energize LED is turned on.
Input
- Line Voltage: Universal (190-630 VAC)
- Frequency: 50/60 Hz
Output
- Type: Relay
- Form: SPDT
- Voltage Range: 240 VAC (maximum: 10 amps)
Contactor Load Side (Back)
- Line Voltage: Universal (190-630 VAC)
- Frequency: 50/60 Hz
- Load side monitoring is optional
Control Operating Temperature
- Operating Temperature: -40ºC to +75ºC (-40ºF to +167ºF)
- Storage Temperature: -40ºC to +85ºC (-40ºF to +185ºF)
Phase Unbalance Protection
- Voltage Unbalance: 2 to 25% adjustable
Over/Under Protection
- Under: Fixed at ±12%
- Over Voltage: Fixed at ±12%
- Hysteresis: ±6%
Phase Loss Protection
- Phase Loss condition = <25% of nominal for any given phase.
System will shut down should this condition occur.
Delay on Break Timer
- Control Voltage: 18-240 VAC
- Time Delay: .1 to 5 minutes adjustable
Weight/Dimensions
- Weight: 0.8 lb.
- Height: 1.5″
- Width: 4.25″
- Length: 6.5″
A-1: EAC-800, EAC-8000, EAC-8002
Copeland: 085-0160-00
Diversified: AC-2020, AC-301, AC-302
Mars: PFM-2000
Motorsaver: 455
SSAC: QLM/QLV
Time Mark: 265
Wagner / DiversiTech: DTP-3, WPC-800
Recommended Alternative: ICM450A and ICM450A+ Plus
