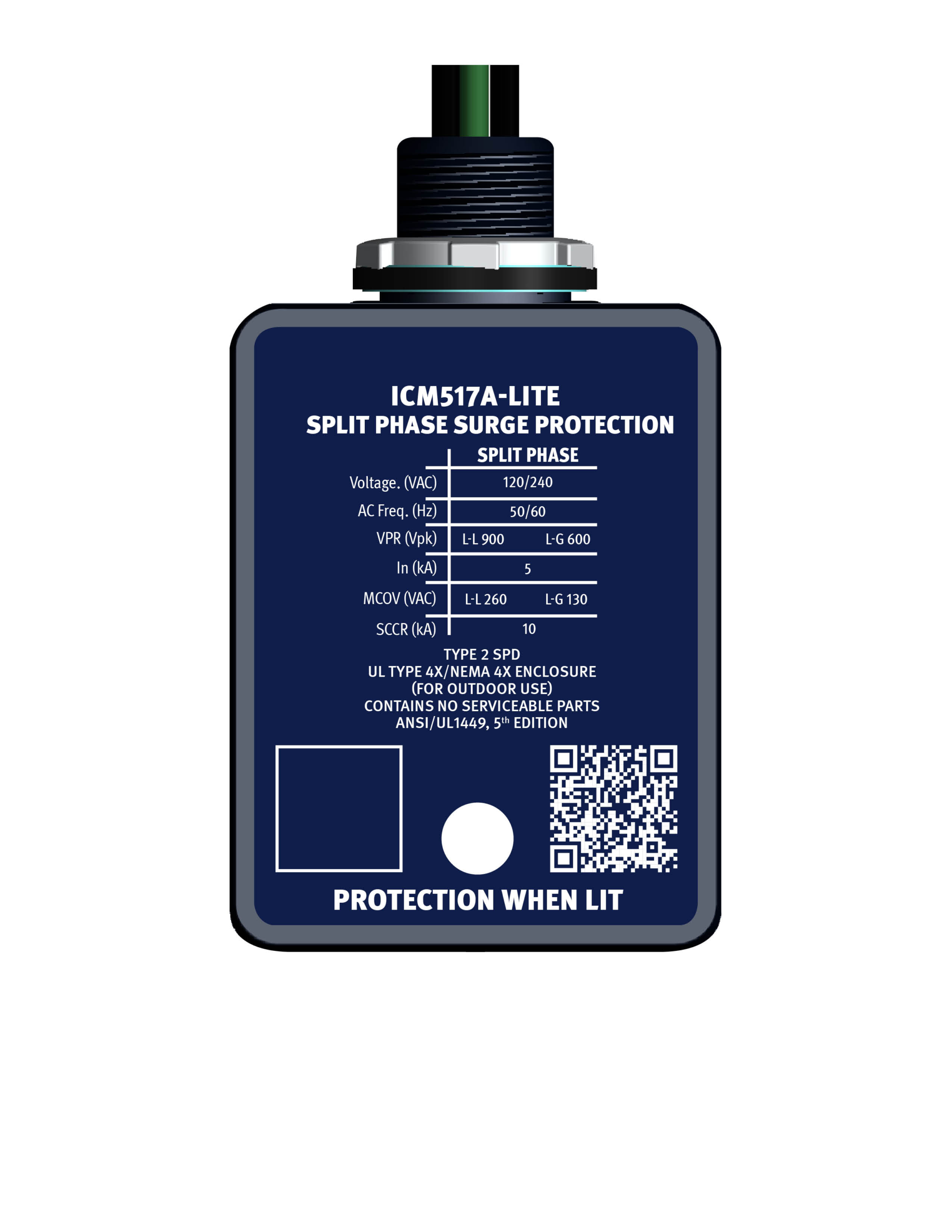

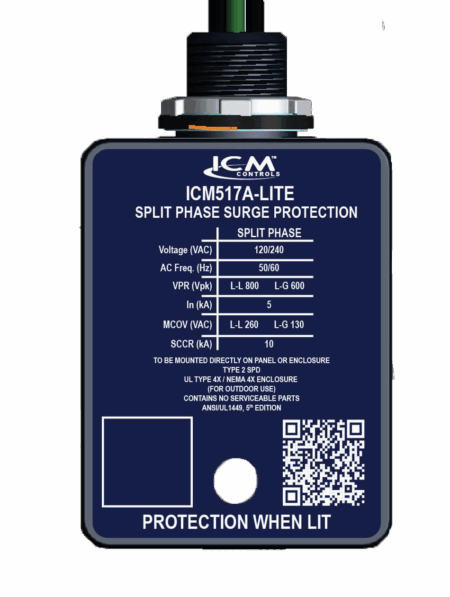

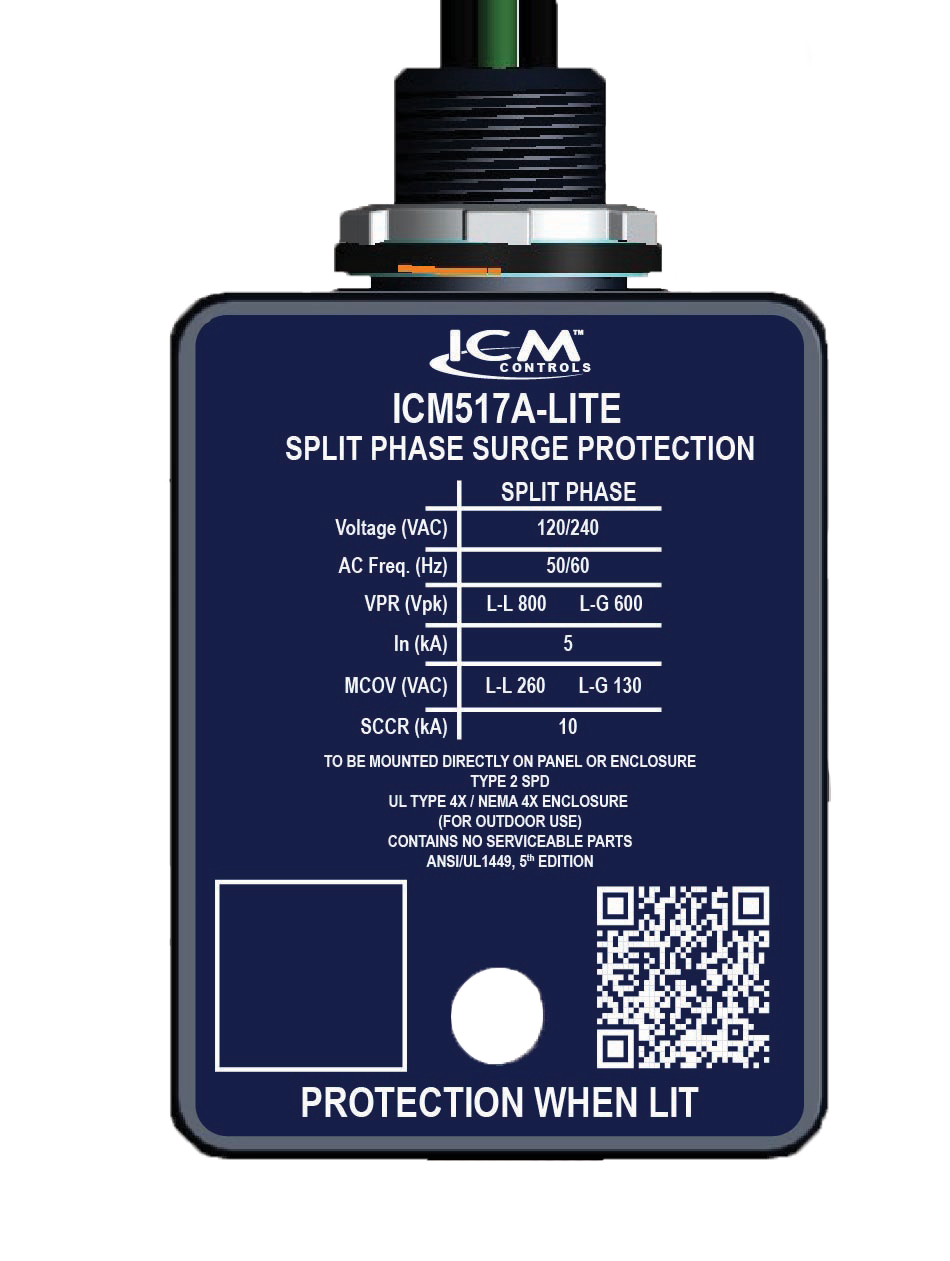

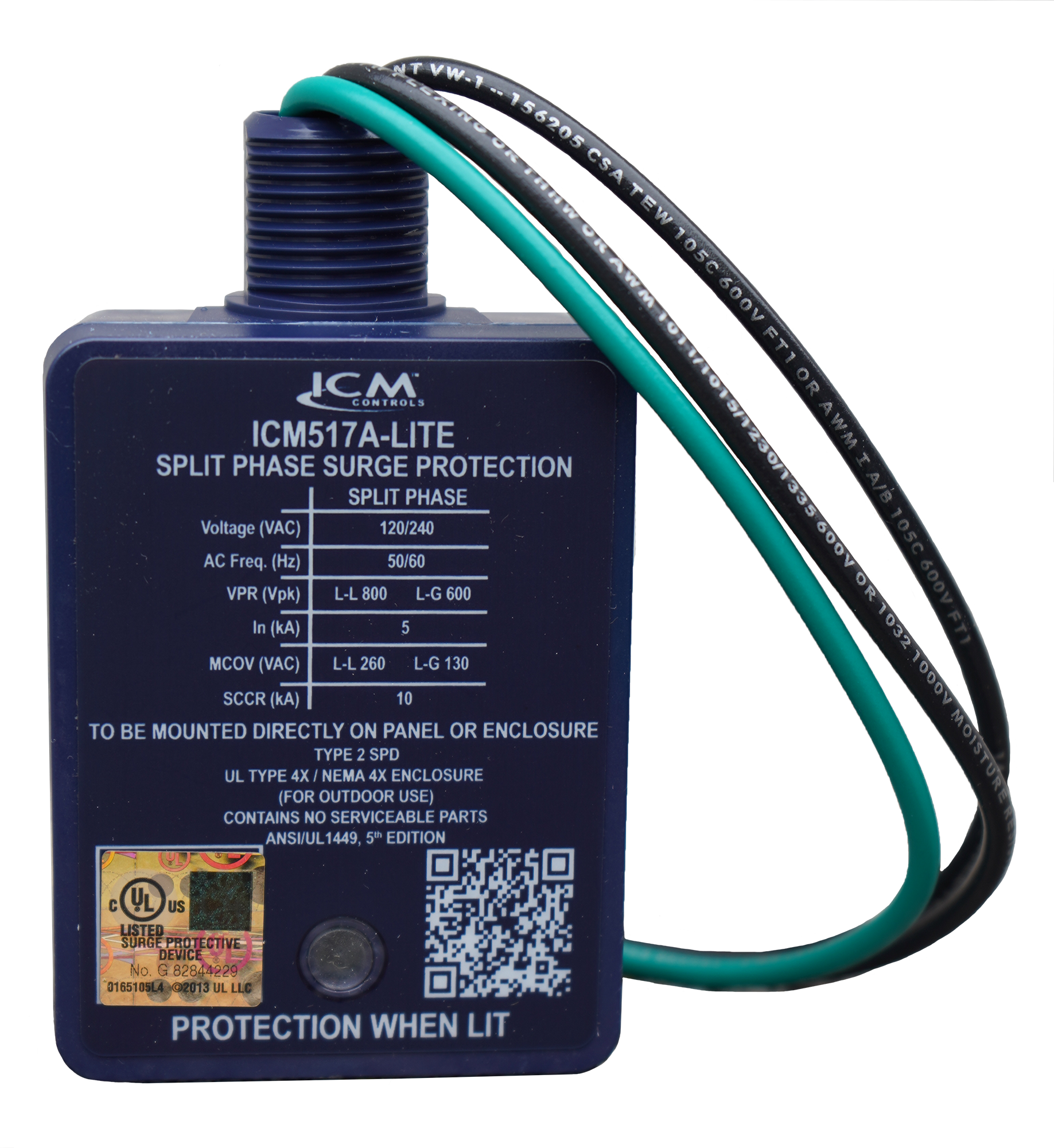

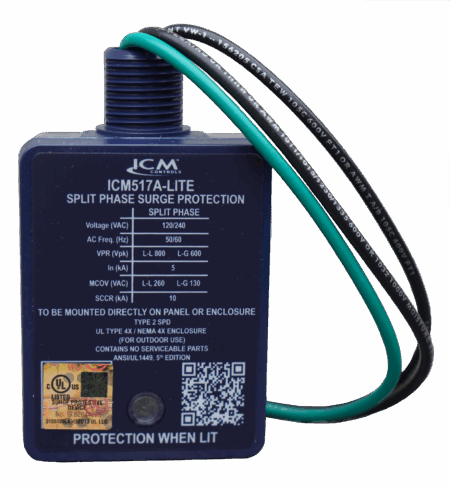

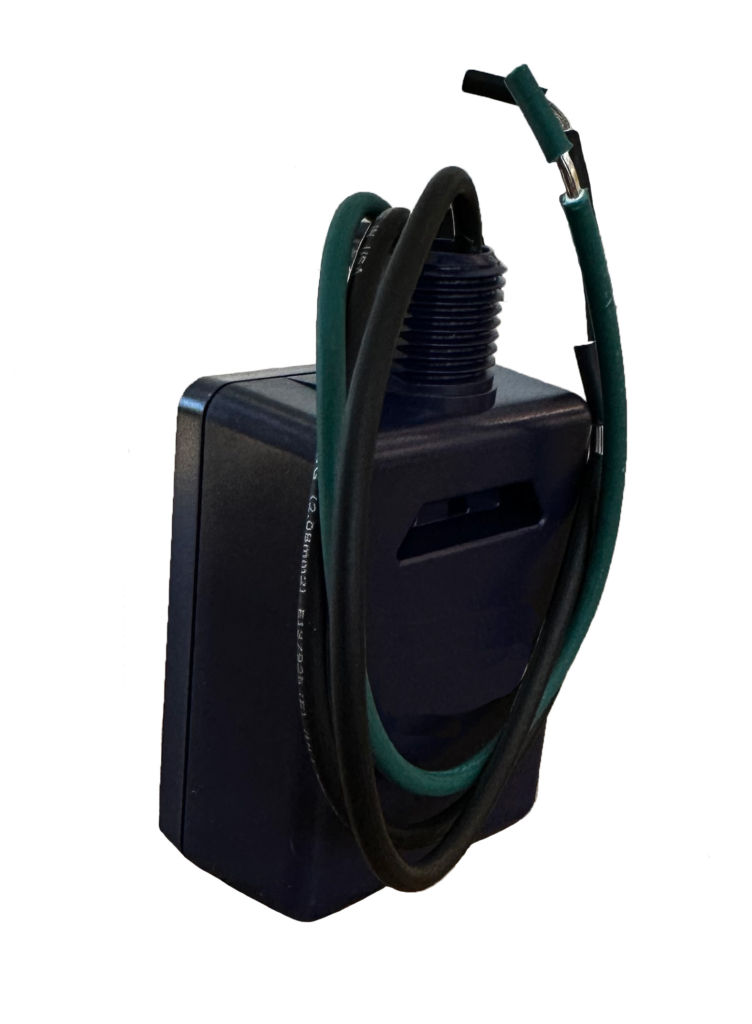

ICM517A-Lite

NEW Products, Single Phase Surge Protection, SURGE PROTECTION DEVICES (SPD)

The ICM517A-Lite is a compact Type 2 Surge Protective Device (SPD) designed to protect valuable single-phase equipment by dissipating momentary voltage spikes and transient power surges. Providing commercial property owners with peace of mind, contractors with a reliable selling proposition and wholesalers with a high demand product. Applications include the protection of motors, electronics, air conditioning systems, appliances, refrigeration, HVAC equipment and more.

DETAILS:

Superior TMOV technology provides safe and reliable surge protection
Built to withstand the high impact of a major surge event
Ultrasonically welded enclosure for indoor/outdoor installation
Featuring a thinner more compact profile
Maximum surge capacity of 60,000 amps
Easy-to-read status light, tells you when the control is protecting
Easy installation
Designed and assembled in U.S.A.
UL Listed: E347279
Limited lifetime product up to a 3-year $25,000 connected equipment warranty

SPECIFICATIONS:

Service Voltage: 120/240 volt, single-phase
Maximum Surge Current: 60,000 amps
Maximum Energy Dissipation: 612 joules
Installation Point: Electrical panel, electrical disconnect
Diagnostics: Green light indicates surge suppression present
Enclosure: NEMA Type 4X waterproof enclosure
AC Protection Modes: L-L, L-G
Conduit Connection: 1/2” trade size

WEIGHT/DIMENSIONS:

Length: 3.75”

Width: 2.25”

Depth: 1.02”

LITERARY DOWNLOADS:

Sell Sheet download

Installation Guide download

ICM517A-Lite Limited Lifetime Warranty Information download

Comparison Guide download

Videos:

Replaces:

RectorSeal: RSH-50
Supco: SCM60
Intermatic: L5F21S1DG1
