Field Programmable Single-Phase Line Voltage Monitor and Surge Protector, Pre-Wired to 240VAC

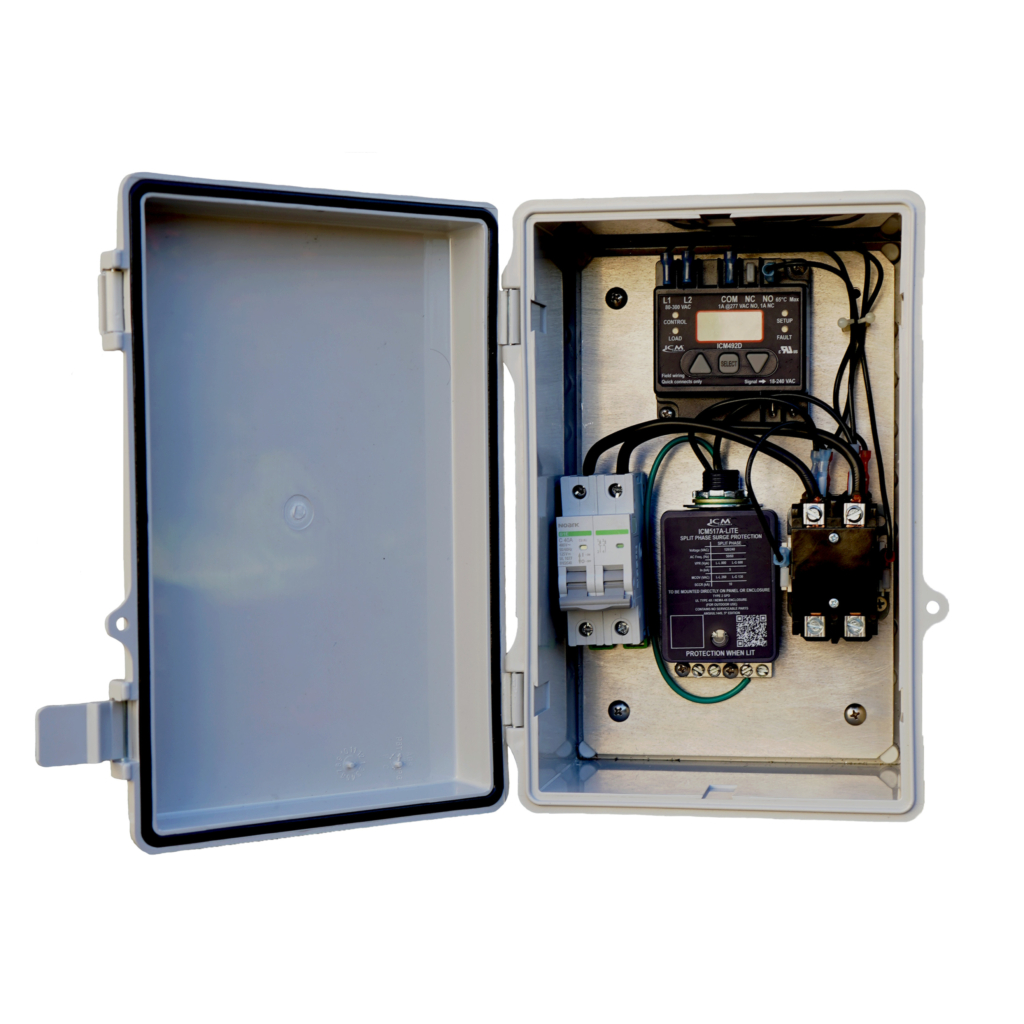

The Sentry 3N1 combines the benefits of an ICM517A-LITE single-phase surge protection device, and a ICM492D single-phase voltage monitor into one easy to install solution. It also provides techs and homeowners a convenient way to break the power using an onboard disconnect breaker. The Sentry 3N1 protects against both power surges and over/under voltage issues that can cause damage to circuit boards and motors in residential and commercial single-phase 208/240VAC HVAC/R equipment.Inputs
- Line Voltage: 208/240 VAC
- Frequency: 50/60 Hz
- SCCR: 10kA
- Breaker Amperage: 40A at 208/240 VAC
Outputs
- Contactor: 40A FLA, 208/240VAC
Surge Protection
- Maximum Surge Current: 60,000 amps
- NEMA Type 4X ultrasonically welded enclosure
- Diagnostics green LED light indicates surge suppression present
- Protection modes: L-L, L-G
Voltage Monitor (Default Settings)
- Voltage set point: 240VAC
- Delay on Break (ASC): 15 seconds
- Over/under voltage setting: 5%
- Delay on Fault: 2 seconds
- Reset Mode: 0 (auto)
- Control Mode: OFF
- Language: English
Weight/Dimensions
- Weight: 11 lbs.
- Height: 7.48″
- Width: 5.52″
- Length: 11.28″
RectorSeal: RSH-50VRM Kit-DC
