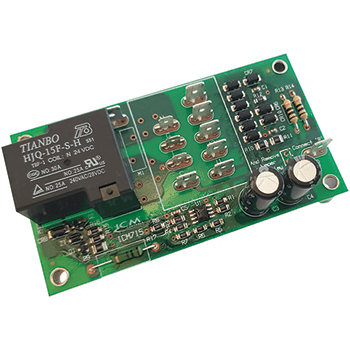

ICM715
ECM Control
The ICM715 provides a cost-effective control solution when converting from the use of an expensive electronically commutated motor (ECM) to using an economical permanent split capacitor motor (PSC).- Provides a single technician selected motor speed when replacing an OEM constant torque electronically commutated motor
- Simple installation
- Works on constant torque blower motor such as X13 or SelecTech constant torque electronically commutated motor up to 1 HP
- User selectable 3-minute delay on break option
Electrical
- Input Control Voltage: 24 VAC
- Input Frequency: 50-60 Hz
- Motor Voltage: 120 VAC or 208-240 VAC
- Maximum Blower Horsepower: 1 HP
Weight/Dimensions
- Width: 1.25″
- Height: 2.20″
- Length: 4.00″
