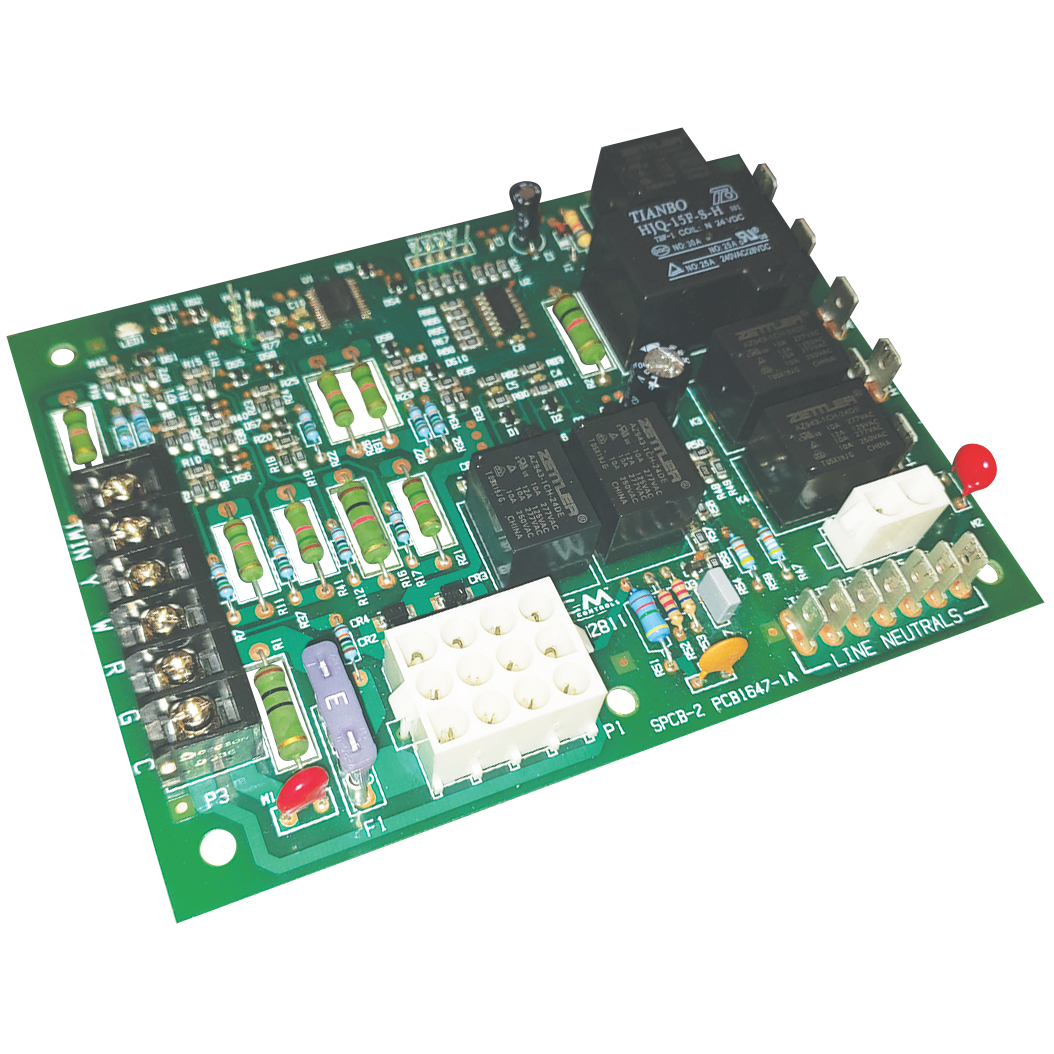

ICM2811

, ,

Goodman OEM Replacement Control

ICM’s Best Selling, Low-Cost Form, Fit And Functional Replacement Board

The ICM2811 is an automated gas ignition control board which monitors the ignition sequence including the combustion air blower, pressure switch, hot surface igniter, gas valve, flame sense, and circulating blower while maintaining full safety circuit monitoring including the high limit switch, roll out switch and auxiliary limit switch circuits.

Onboard diagnostics will illuminate a flash code to help technicians properly diagnose issues quickly.

DETAILS:

  • Controls the gas valve, inducer draft motor, circulating blower and hot surface ignitor
  • Monitors system pressure and limit switches
  • Microprocessor based precision
  • Twinning compatible with another ICM2811 Control Board
  • Diagnostic LEDs aid in testing and troubleshooting

SPECIFICATIONS:

Electrical

  • Electrical Rating @ 77°F (25°C)
  • Input Voltage: 18-30 VAC 50/60 Hz maximum
  • Igniter Current: 6.0 amp @ 120 VAC 50/60 Hz (resistive)
  • Inducer Relay: 2.2 FLA–3.5 LRA @ 120 VAC
  • Blower Relay: 14.5 FLA–25.0 LRA @ 120 VAC (2spd–H/C)
  • Gas Valve Relay: 1.5 amp @ 25 VAC 50/60 Hz 0.6 pf

Environmental

  • Operating Temp Range: -40° to 176°F (-40° to 80°C)
  • Humidity Range: 5 to 95% relative humidity (non-condensing)

WEIGHT/DIMENSIONS:

Weight: 0.5 pounds

LITERARY DOWNLOADS:

pdf
Sell Sheet download
pdf
Application/Install Guide download

Videos:

No videos found.

Replaces:

Goodman: PCBBF110, PCBBF110S, PCBBF123, PCBBF123S, 0130F00005,0130F00005S, PCBBF112, PCBBF112S, B18099-26, B18099-26S

White-Rodgers: 50A55-743, 50A55-289, 50T55-289
