ICM222
ICM (Obsolete/Legacy Products)

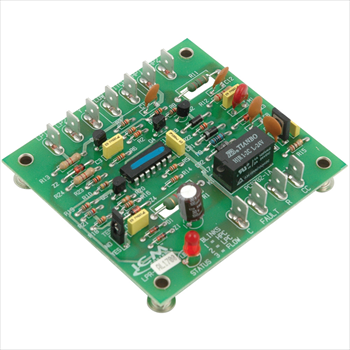

ICM222
Lockout protection module
The ICM222 is a low-cost lockout protection module that monitors pressure/flow switch inputs and provides anti-short cycle/lockout protection.- Anti-short cycle/lockout control
- Pressure/flow switch monitoring
- Alarm output during lockout
- LED fault codes for lockout status
- Test mode for reduced test time
- Conformally coated for moisture protection
- 5-minute anti-short cycle delay (5-second test mode)
Input:
- Voltage: 18 to 30 VAC
- Frequency: 50-60 Hz
Output:
- CC
- Type: Solid state (triac)
- Rating: 1 amp at 30 VAC
Fault:
- Relay (SPDT) N.O.
- Rating: 1 amp @ 30 VAC
Time Delay:
- Anti-short cycle time: 5-minutes fixed +/- 20% (5-second test mode)
Weight/Dimensions
- Weight: 0.5 lb.
- Height: 1″
- Width: 3.25″
- Length: 3.5″
Recommended Alternative: No suggested alternative
