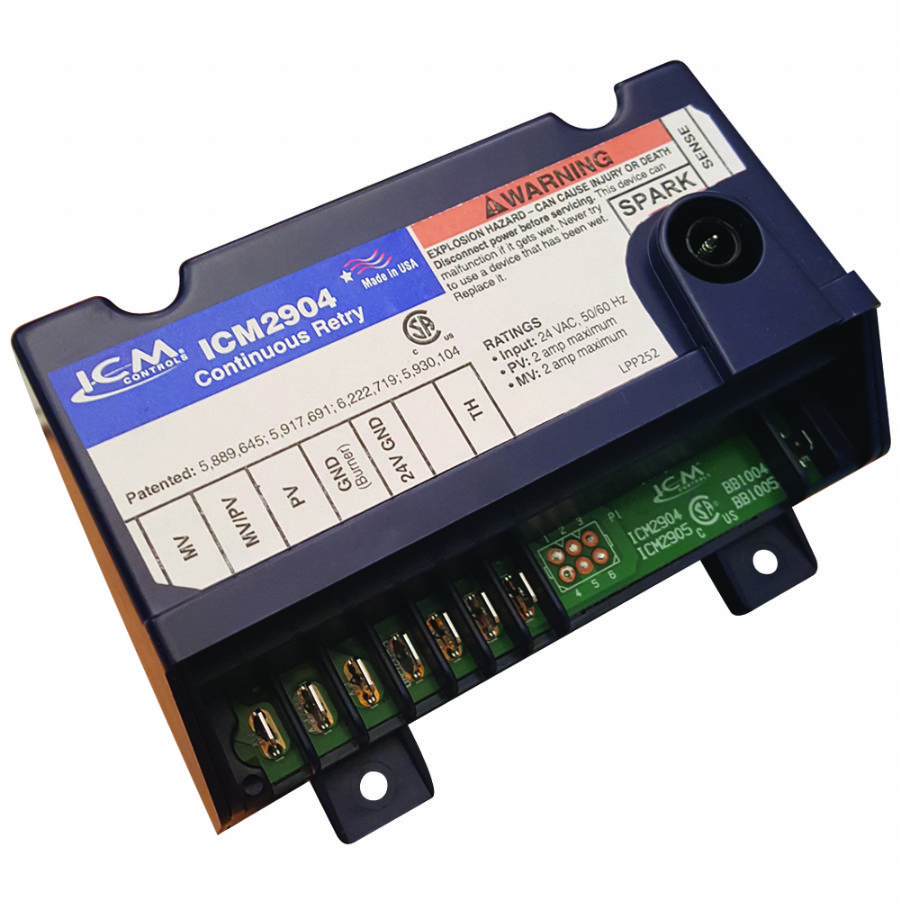

ICM2904
DETAILS:
REZNOR OEM REPLACEMENT CONTROL
- Intermittent pilot gas ignition control module
- For use with intermittent pilot boilers, furnaces and other heating appliances
- Microprocessor-based
- Remote flame sensing
- Compatible with LP or natural gas
- Brown out monitoring
WEIGHT/DIMENSIONS:
Weight: 1
Height: 2
Width: 5.3
Length: 4
SPECIFICATIONS:
Control Voltage: 18-30 VAC
Frequency: 50/60 Hz
Pilot Valve: 2A @ 24 VAC
Main Gas Valve: 2A @ 24 VAC
Current Draw: 100mA maximum
Pre-Purge Delay: 0 seconds
Operating Temperature: -40°F to 167°F,-40°C to 75°C
Humidity: 5%-95% R.H. (non-condensing) at +55°C
Replaces:
Reznor: 257009
UTEC: 1003-638A
