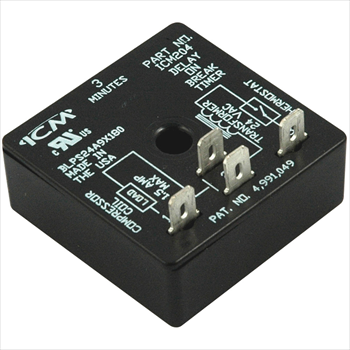

ICM204

The ICM204 has been replaced by the ICM206



3-min Fixed Delay

DETAILS:

  • Compressor lockout/anti-short cycle timer
  • Brownout protection
  • UL 873 recognition as compressor controller
  • Helps prevent scroll compressor reversal
  • Fast response time: 16ms
  • Prevents low voltage starts
  • Eliminates relay chatter due to thermostat bounce or tampering
  • Works with anticipator-type thermostats
  • 18-30 VAC

SPECIFICATIONS:

Input:
Voltage: 18-30 VAC
1.5 amp
15 amp inrush
Time Delay:
3-minute fixed

WEIGHT/DIMENSIONS:

  • Weight: 0.15
  • Height: 1.25
  • Width: 2
  • Length: 2

LITERARY DOWNLOADS:

pdf
Installation Guide download

Videos:

No videos found.

Replaces:

A-1: EAC-426-180

Diversified: AC-100-3

MARS: 32381

Robertshaw: 3310-183

Supco: TL243
