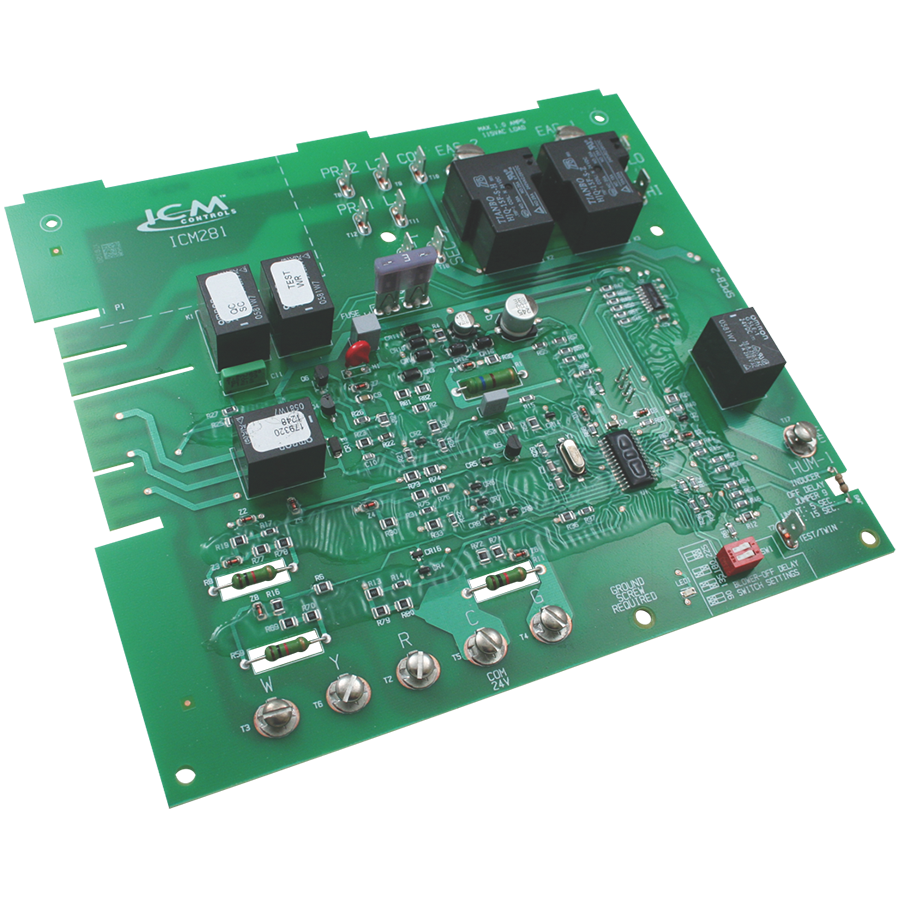

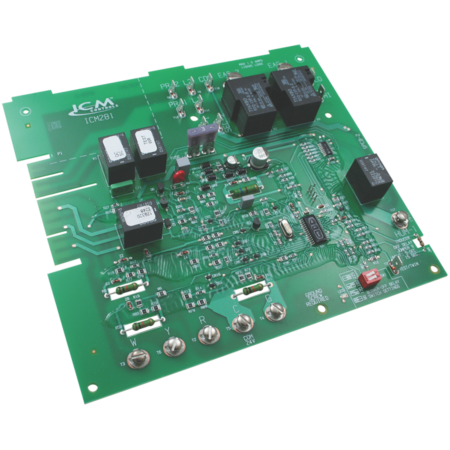

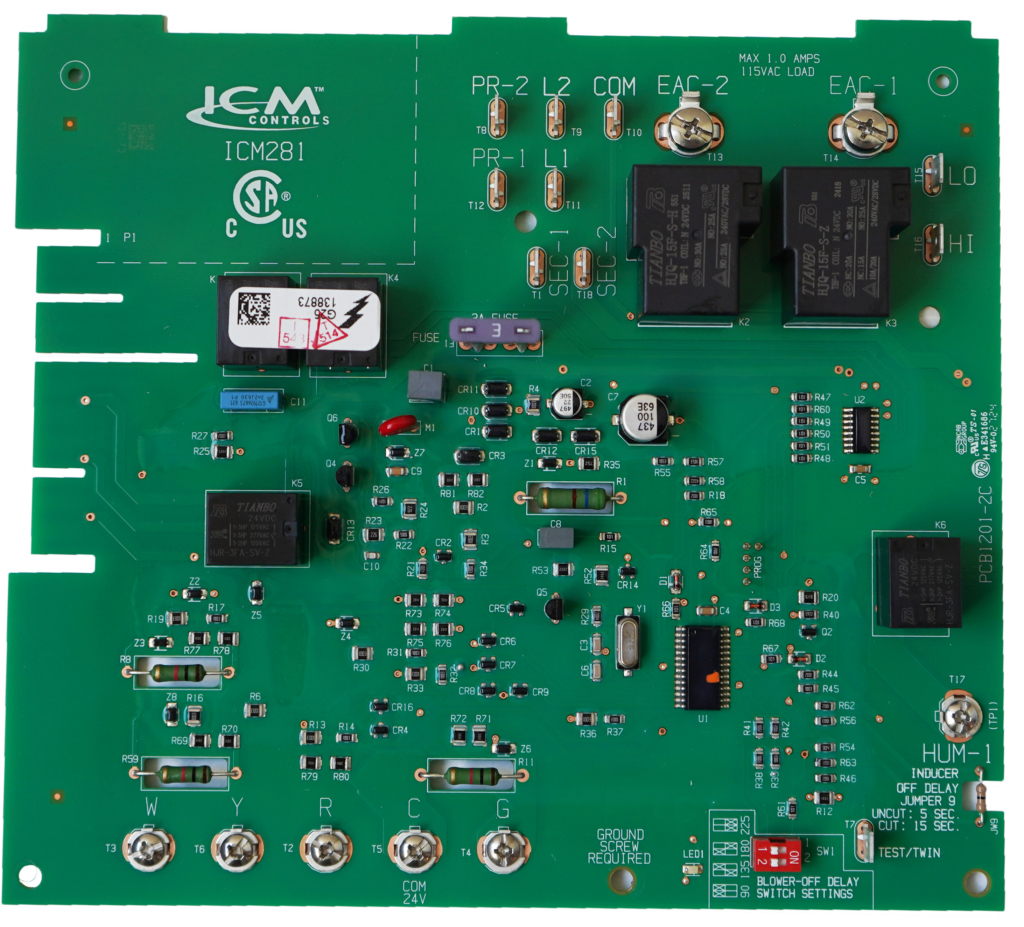

ICM281

Carrier Replacement Boards, FURNACE CONTROL BOARDS

Carrier OEM Replacement Control

Low-Cost Form, Fit And Functional Replacement Board

The ICM281 is a low cost replacement for the Carrier CES0110020, CES0110048 and CES0110057-xx series, furnace control boards which is used to control gas valve, ignitor, blower motor, inducer, humidifier and air cleaner.

DETAILS:

Low cost form, fit and functional replacement for Carrier CES0110020, CES0110048 and CES0110057-xx series, control boards.
Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
Microprocessor-based for precise timing
Functions with all 24 VAC thermostats
Designed for 100% gas shutoff in case of ignition failure
Twinning compatible with another ICM281 board
Reverse polarity protection
Secondary brownout voltage protection
Diagnostic fault codes (blinking LED) for simple troubleshooting

SPECIFICATIONS:

Line Voltage Range: 98 to 132 VAC @ 60 Hz

Ignitor: 5A @ 120 VAC

Cool Blower: 30A, 2 HP, 240 VAC

Heat: 5A, 1/2 HP, 240 VAC

Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC

Gas Valve: 1.5A @ 30 VAC

WEIGHT/DIMENSIONS:

Weight: 0.6
Height: 0.75
Width: 8.5
Length: 7.625

LITERARY DOWNLOADS:

Sell Sheet download

Application/Install Guide download

Fault Code Label download
