ICM314
ICM (Obsolete/Legacy Products)
ICM314
Defrost Control

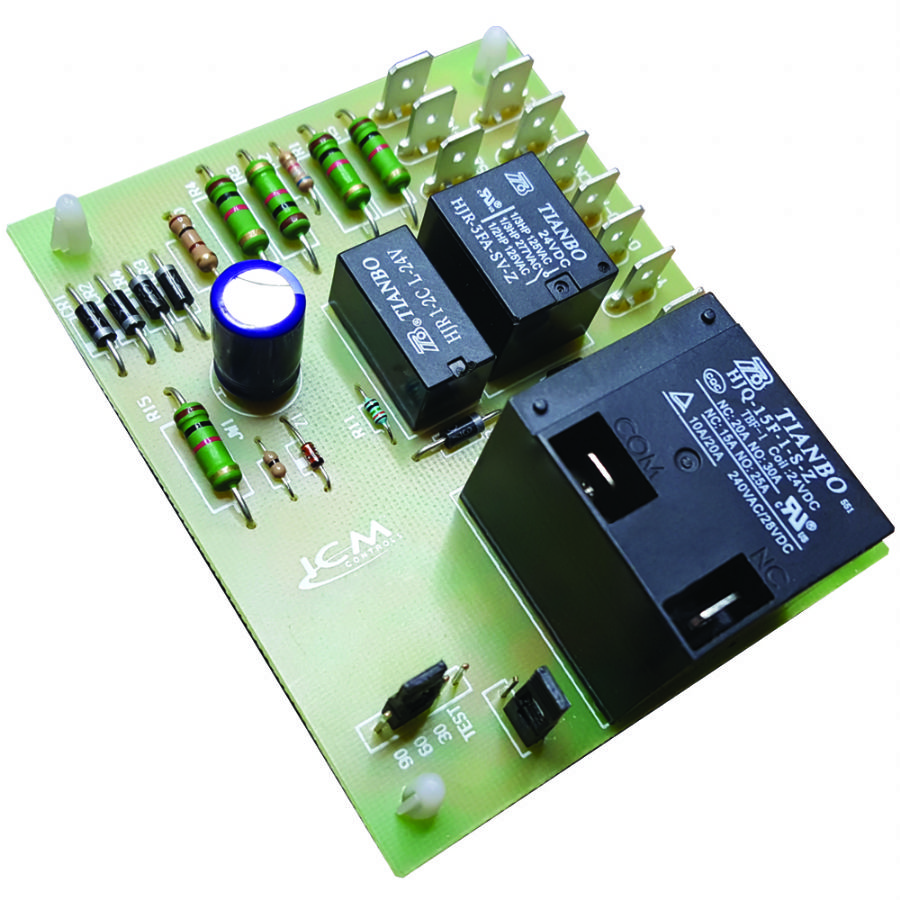

Heat pump defrost control board with high power relay outputs for fan and strip heat. The ICM314 integrates multiple time and temperature defrost functions into a low-cost solution.Input
- Voltage: 18-30 VAC
- Frequency: 50/60 Hz
- Power: 4.8VA maximum (200mA @ 24VAC)
Output
- Type: Relay
- Rating: 1 amp @ 24 VAC
-
Outdoor Fan Motor: 15 Amps @ 240 VAC
-
Strip Heat, Reversing Valve Outputs: 24 Vac, 1 amp
Time Delay
- Anti-short cycle delay: 3 minutes
- Defrost Time: Fixed at 12 minutes
- Interval Time Between Defrosts: Pin-selectable 30/60/90 mins.
- Test mode: Short across test terminals reduces test time by 240X
Weight/Dimensions
- Weight: 1 lb.
- Height: 1″
- Width: 3.5″
- Length: 2.9″
Goodman: PCBDM133
