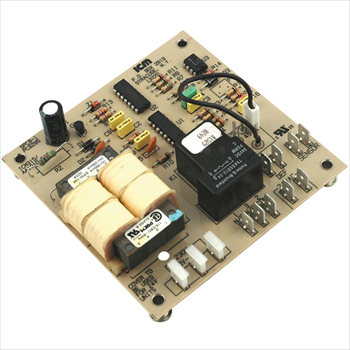

ICM315
DETAILS:
- Solid state replacement for Ranco E-15
- Reliable thermistor-type sensor is less susceptible to breakage and easier to mount
- Replaces faulty bulb-type sensors
- Time and temperature terminate
- Test pins reduce test times by 256X
- Stable pin post construction
WEIGHT/DIMENSIONS:
- Weight: 0.1
- Height: 1
- Width: 3.5
- Length: 2.875
SPECIFICATIONS:
Voltage: 24, 120, 240 VAC
Frequency: 50/60 Hz
Output:
– Relay, SPDT
– N.O.: 20 amps
– N.C.: 10 amps
Defrost Time: Fixed 10 minutes
Interval Time Between Defrosts: Pin-selectable 30/45/90 min
Replaces:
Avion: DFT100
Ranco: E-15 controls
