DETAILS:

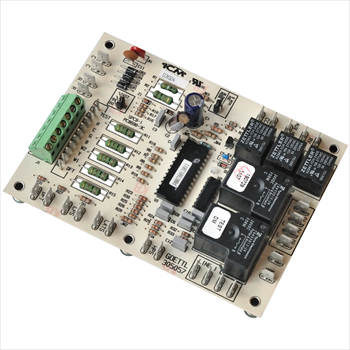

Replacement for Goettl 305057 controls
WEIGHT/DIMENSIONS:
- Weight: 0.5
SPECIFICATIONS:
Input
• Voltage: 18-30 VAC
• Frequency: 50-60 Hz
• Power Consumption: 1 watt maximum
Output
• CC, Aux. Heat, RVS
– Type: Relay
– Form: SPST, normally open
– Rating: 2 amps @ 24 VAC
• IDF, ODF
– Type: Relay
– Form: SPST, normally closed
– Rating: 10 amps @ 240 VAC
Time Delays
• Defrost: Fixed at 10 minutes (+/- 10%)
• Interval Between Defrost:
– Pin selectable (30/60/90 minutes)
• Test Time: Short across test terminals before startup to reduce run time by 256x
• ASC: 3 minute or 5 minute selectable
• Indoor Fan:
– 10 sec. ON delay, heat or cool call
– 75 sec. OFF delay, heat or cool call
Dimensions
• 5.8”W x 4.25”H
• Mounting: Surface mount using (4) #6 or
#8 screws, or plastic stand offs
Replaces:
Goettl: 305057
