ICM325HN
ICM (Obsolete/Legacy Products)

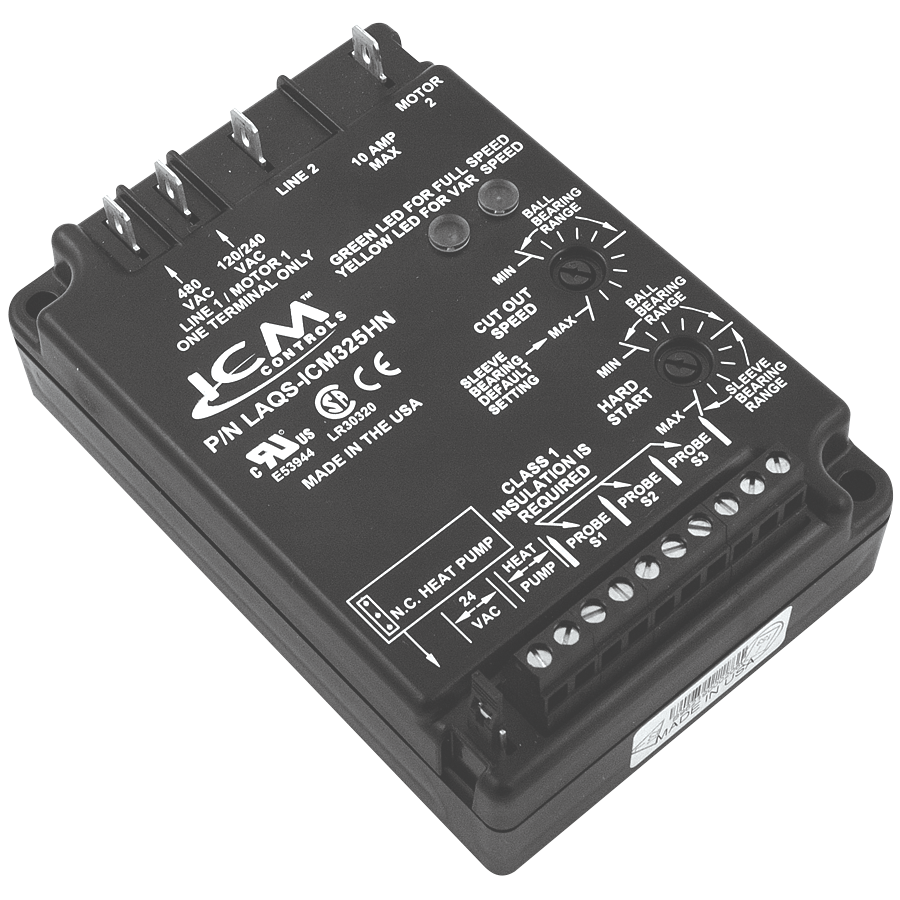

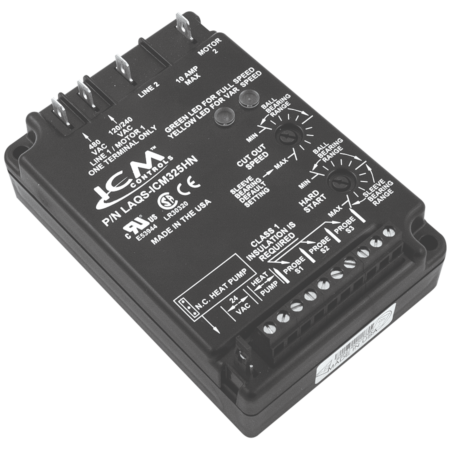

ICM325HN
Head Pressure Control with Optional Heat Pump Bypass
*This product has been replaced by the ICM325A- Helps prevent evaporator freeze-ups, liquid-slugged compressors, low pressure cutouts and overshoots seen with on/off & pressure switch controls
- Integral heat pump bypass circuitry – Allows you to electronically bypass the speed control during heat pump operation
- Solid state 10 amp load carrying capability
- Single unit controls up to 3 refrigerant circuits
- Multiple Voltage ranges (see specifications for details)
- Hard start – Adjustable from .1-5 seconds; provides full torque to the motor during startup to help ensure proper fan rotation and lubrication of bearings
- Low speed cutoff – Field-adjustable; user may set the minimum RPM level at which the condenser fan should operate
- High temperature bypass – Applies full voltage to the condenser fan under normal conditions
- Integral transformer *(ICM326HN/327HN models) – Simplifies installation, reduces cost; direct setup from the line voltage
- RoHs compliant/lead free design – For global use
Electrical
- Line voltage: 120, 208, 240, and 480 VAC
- Control voltage: 18-30 VAC
- Frequency: 50-60 Hz
- Operating temperature: -40ºF to +176ºF (-40°C to +75°C)
- Sensors: 10K ohms at 77°F (25°C)
- Heat pump override: 24 VAC N.C. or N.O
Weight/Dimensions
- Weight: 0.5 lb.
- Height: 1.75″
- Width: 3.25″
- Length: 4.75″
ACT: FM2000
Hoffman: 800, 800A, 800AA, 814-50, 816-10
Ranco: E31 Series
Recommended Alterative: ICM325A
