Description
(600 VAC)

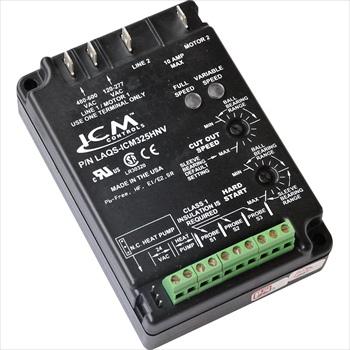

ICM325HNV
(600 VAC)
*This product has been replaced by the ICM325A — Learn more here
DETAILS:
- Integral heat pump bypass circuitry allows electronic bypass of speed control
- Eliminates overshoots common to on/off and pressure switch controls
- Helps prevent evaporator freeze-ups, low pressure cut-outs and liquid-slugged compressors in low ambient conditions
- Features: hard start, low temperature bypass, isolated 24 VAC supply
- RoHS compliant / lead free design
- Controls up to 3 refrigeration circuits
- Typical application: A/C and heat pumps
WEIGHT/DIMENSIONS:
- Weight: 0.5
- Height: 1.75
- Width: 3.25
- Length: 4.75
SPECIFICATIONS:
Input:
– Control: 18-30 VAC
– 50/60 Hz 1.8 VA max.
– Line input: 600 VAC
– Control: 18-30 VAC
– 50/60 Hz 1.8 VA max.
– Line input: 600 VAC
Output:
– Maximum: 10 amps
– Minimum: 100 mA
Modulation: 70°-100°F
