Description

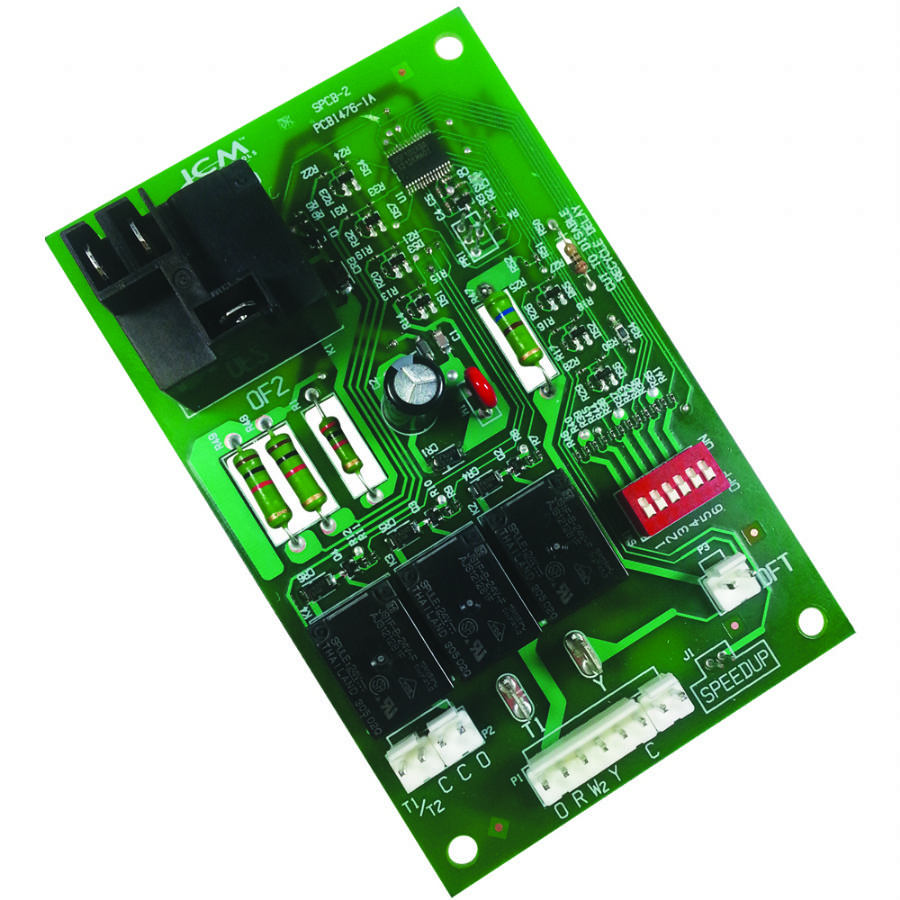

Defrost Control Board
ICM350
Defrost Control Board
DETAILS:
The ICM350 Defrost Board is a 3-in-1 replacement board for Carrier HK32EA001, HKEA003 and HK32EA008 boards. Special circuitry helps reduce noise disturbances when entering and exiting the defrost sequence on the 003 and 008 applications.
- Adjustable 30, 60, 90, and 120 minute timing sequences
- Speedup jumper for quicker testing and troubleshooting
- Brownout monitoring
- Microcontroller precision timing
- Time and temperature termination
- Quiet Shift : Reduces noise disturbance when entering and exiting the defrost sequence (HK32EA003 & HK32EA008)
- 5 minute anti short cycle delay (HK32EA003 & HK32EA008)
- Optional random start timer (HK32EA003 & HK32EA008)
WEIGHT/DIMENSIONS:
Weight: 0.25
Height: 1.75
Width: 3.5
Length: 5.5
SPECIFICATIONS:
- Voltage:18-30 VAC
- Frequency: 50/60 Hz
- Power Consumption: 1 Watt maximum
- Current Draw: 300mA maximum
- Maximum Defrost Sequence: 10 minutes
HK32EA001:
Speedup defrost timing sequence:
Speedup defrost timing sequence:
| Specified Time Interval | Speedup Equivalent Time Interval |
| 10 minute maximum defrost | 2.3 seconds |
| 30 minute timing sequence | 7 seconds |
| 60 minute timing sequence | 14 seconds |
| 90 minute timing sequence | 21 seconds |
| 120 minute timing sequence | 28 seconds |
HK32EA003/HK32EA008:
- Speedup defrost timing sequence: 5 seconds (active upon release)
- ASC delay: 5 minutes at startup and between heating calls
- Forced DFT sequence: 30 seconds
- Random start timer: 0-30 seconds
- Quiet shift compressor delay: 30 seconds (HK32EA003), 70 seconds (HK32EA008)
Replaces:
Carrier: HK32EA001, HKEA003, HK32EA008
Recommended Alternative:
No suggested alternative
