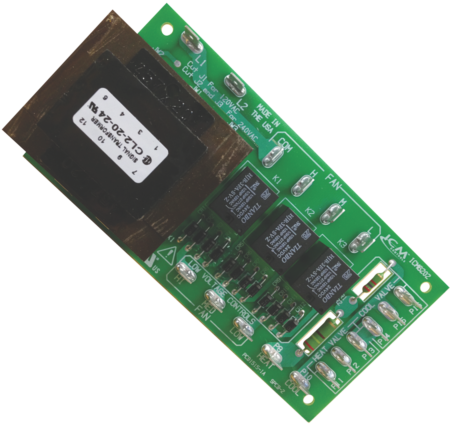

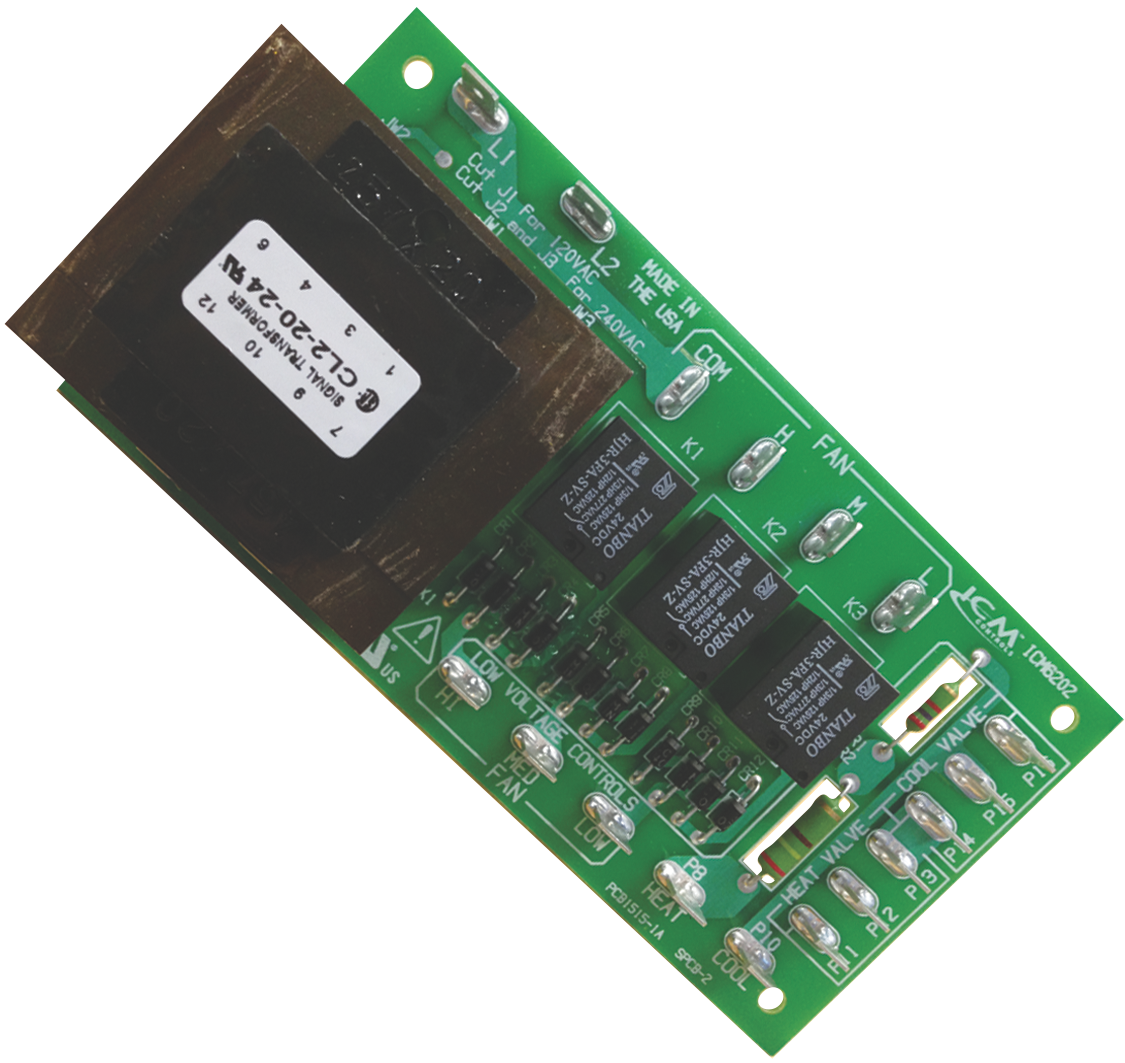

ICM6202

Fan Coil Relay Controls

Three-Speed Fan Coil Control

The ICM6202 allows 3-speed fan with voltage of either 115 VAC or 230 VAC to be controlled by a low voltage (24 VAC) signal or thermostat and provides low voltage control of heating/cooling valve. To use 115 VAC 3-speed fan, cut jumper JW1. To use 230 VAC 3-speed fan, cut jumpers JW2 and JW3.

DETAILS:

  • Ability to operate line voltage 3-speed fan motor with low voltage controls
  • Compatible with 4 pipe and 2 pipe systems with auto-changeover
  • 20 VA 24VAC power supply
  • Suitable for 1/8 HP motors
  • 1/4” Quick connect terminals
  • Mounts with standard 3” track

SPECIFICATIONS:

Input:
• Transformer Primary: 115 VAC or 240 VAC; 50/60Hz
• Fan Inputs HI, MED, LOW: Nominal 17mA @ 24 VAC
• Heat & Cool: 0.83A @ 24 VAC
Output:
• Transformer Secondary: 24 VAC; 20 VA
• Relay outputs H, M, L: 1/8HP @ 115 VAC, 1/4HP @ 240 VAC, 10A @ 240 VAC resistive max
• Heat & Cool Valves: 0.83A @ 24 VAC
Mechanical:
• 5.850” x 3.000” x 1.850”
• Mounts in standard 3” track

WEIGHT/DIMENSIONS:

  • Weight: 1
  • Height: 1.8
  • Width: 3.0
  • Length: 5.8

LITERARY DOWNLOADS:

pdf
Installation Guide download
pdf
Sell Sheet download
