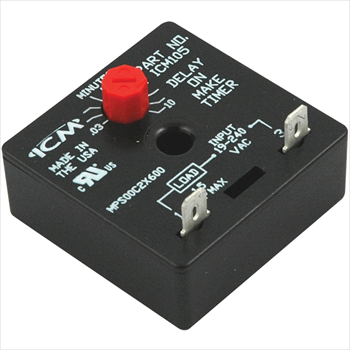

ICM105
ICM (Obsolete/Legacy Products)
ICM105
Adjustable Time Delay
- Low holding current
- Low cost version of the ICM102 without the cooling anticipator circuitry
- Ideal for compressor staging
- Universal voltage operation
- Knob-adjustable time delays
- Simple 2-wire hookup
Input:
- Voltage: 18-240 VAC/VDC
- Frequency: 50-60 Hz
Output:
- Output Ratings:
- Maximum: 1.5 amp
- Minimum: 15-amp inrush
- Inrush: 10 mA holding current
Time Delay:
- .03-10 minutes (1.8-600 seconds)
Weight/Dimensions
- Weight: 0.1 lb.
- Height: 1.25″
- Width: 2″
- Length: 2″
Installation Guide
Download
Diversified: AC-800, ASC-600, ASC601
Gemline: 1C310, 1C213
Mars: 32091
Supco: TD68
Recommended Alternative: ICM102 (40ma holding current instead of 10ma)
