ICM205
ICM (Obsolete/Legacy Products)

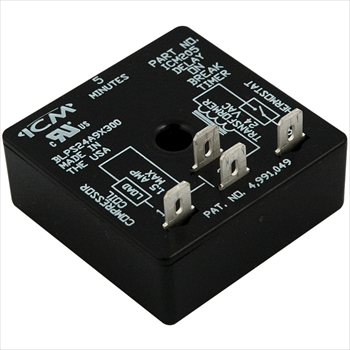

ICM205
5-min Fixed Delay
- Compressor lockout/anti-short cycle timer
- Brownout protection
- UL 873 recognition as compressor controller
- Helps prevent scroll compressor reversal
- Fast response time: 16ms
- Prevents low voltage starts
- Eliminates relay chatter due to thermostat bounce or tampering
- Works with anticipator-type thermostats
- 18-30 VAC
Input:
- Voltage: 18-30 VAC
- Frequency: 50-60 Hz
Output:
- Output Ratings:
- Maximum: 1.5 amp
- Minimum: 40 mA
- Inrush: 15 amps
Time Delay:
- 3 or 5 minute fixed, 10 minute adjustable
Weight/Dimensions
- Weight: 0.15 lb.
- Height: 1.25″
- Width: 2″
- Length: 2″
Installation Guide
Download
A-1: EAC-426-300
Diversified: AC-100-5
MARS: 32382
Robertshaw: 3310-305
Supco: TL245
Recommended Alternative: ICM206 (Adjustable Timer)
