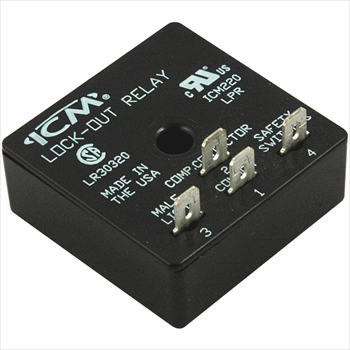

Lockout Lockout Relay
Lockout protection relay to help eliminate nuisance lockouts typical of Series 84 and 93 impedance relays.
- UL 873 recognition as compressor controller
- Low cost lockout relay
- Helps eliminate nuisance lockouts typical of Series 84 and 93 impedance relays
- Ideal for use with safety/interlock switches
- Replaces impedance relays Series 84 and 93
Input:
- Voltage: 18 to 30 VAC
- Frequency: 50 to 60 Hz
Output:
- Relay: SPDT
- Relay Contacts: 2 amps maximum @ 30 VAC resistive
Power Consumption:
- 2 watts maximum during lockout
Weight/Dimensions
- Weight: 0.1 lb.
- Height: 1.15″
- Width: 2″
- Length: 2″
Essex: Impedance Relays Series 84 and 93
Recommended Alternative: No suggested alternative
