Goodman OEM Replacement Control
ICM286
Goodman OEM Replacement Control
DETAILS:

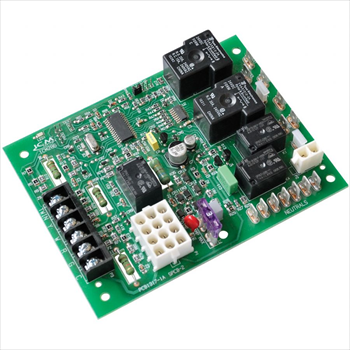

The ICM286 Furnace Control Board is a form, fit and functional replacement for Goodman’s popular PCBBF112(S) or B1809926(S) control board. It features micro-processor based precision with a status LED for testing and easy troubleshooting.
- Controls the gas valve, inducer draft motor, circulating blower and hot surface ignitor
- Monitors system pressure and limit switches
- Microprocessor based precision
- Twinning compatible with another ICM286 Control Board
- Diagnostic LEDs aid in testing and troubleshooting
WEIGHT/DIMENSIONS:
- Weight: 0.5
- Height: 1
- Width: 6
- Length: 4.5
SPECIFICATIONS:
TIMING
Inducer Pre-Purge Time: 15 seconds
Heat Blower On Delay: 30 seconds
Heat Blower Off Delays: 90/120/150/180 seconds
Cool Blower On Delay: 5 seconds
Cool Blower Off Delay: 45 seconds
Ignitor ON: 7 seconds
Inducer Post Purge: 15 seconds
Trails for Ignition: 3 (Before soft lockout)
Auto Reset: 60 minutes
ELECTRICAL
Voltage Range: Line (98-132 VAC) @ 60Hz
Cool Blower: 30A, 2 HP, 240 VAC
Heat: 20A, 240 VAC
Inducer Motor: 4A FLA, 8A LRA @ 120 VAC
Ignitor: 10A FLA @ 120 VAC
Humidifier: 5 amps @ 120 VAC
Electric Air Cleaner: 5 amps @ 120 VAC
Replaces:
Goodman: PCBBF112, PCBBF112S, B1809926, B1809926S, 0130F00005, 0130F00005S
Recommended Alternative:
The ICM2811 supersedes the ICM286
