Description
This model has been discontinued and replaced by the ICM2918
Universal OEM DSI Replacement Control

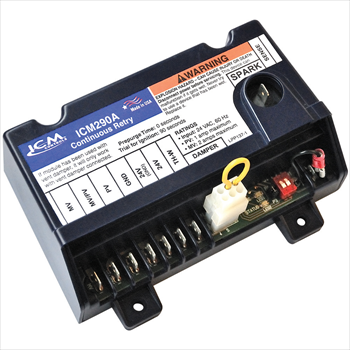

ICM290A
DETAILS:
- This model has been discontinued and replaced by the ICM2918
- Universal intermittent pilot gas ignition control
- Low cost replacement control for Honeywell, White Rodgers, Robertshaw and others
- Provides ignition sequence, flame monitoring and safety shutoff for single/dual rod intermittent pilot control applications
- For gas fired furnaces, boilers and other heating appliances
- Switch selectable pre-purge and ignition time trials with permanent lock
- Works with or without vent damper connected
- Works with both Natural and LP gas systems
WEIGHT/DIMENSIONS:
Weight: 0.45
Height: 2
Width: 5.375
Length: 4
SPECIFICATIONS:
Control Voltage: Line 24V (18-30 VAC), 50/60Hz
Anticipator Setting: 0.3A plus valve load @ 24VAC
Trial for Ignition: 15 or 90 sec (switch selectable)
LEDs:
– Green Status LED provides system status and error codes
– Yellow Flame LED indicates flame presence and flame strength
Patents:
– #6,222,719: Ignition Boost
– #5,917,691: Fail Safe Relay Driver
– #5,889,645: Energy Preservation and Transfer Mechanism
– #5,930,104: PWM Relay Actuator Circuit
Replaces:
Honeywell: S8610U3009 (and compatible models)
