ICM2910

,



 Replaces

ICM P/N

Fenwal P/N

ICM2910-200-005

35-725200-005

ICM2910-201-007

35-725201-007

ICM2910-201-501

35-725201-501

ICM2910-201-505

35-725201-505

ICM2910-205-015

35-725205-015

ICM2910-205-017

35-725205-017

ICM2910-205-021

35-725205-021

ICM2910-205-115

35-725205-115

ICM2910-205-521

35-725205-521

ICM2910-206-515

35-725206-515

ICM2910-405-013*

35-725405-013

*Open Board

LITERARY DOWNLOADS
pdf
Sell Sheet download
pdf
Application/Install Guide download

Description



 Replaces

ICM P/N

Fenwal P/N

ICM2910-200-005

35-725200-005

ICM2910-201-007

35-725201-007

ICM2910-201-501

35-725201-501

ICM2910-201-505

35-725201-505

ICM2910-205-015

35-725205-015

ICM2910-205-017

35-725205-017

ICM2910-205-021

35-725205-021

ICM2910-205-115

35-725205-115

ICM2910-205-521

35-725205-521

ICM2910-206-515

35-725206-515

ICM2910-405-013*

35-725405-013

*Open Board

Reviews

There are no reviews yet.

Be the first to review “ICM2910”

Your email address will not be published. Required fields are marked *

DETAILS:

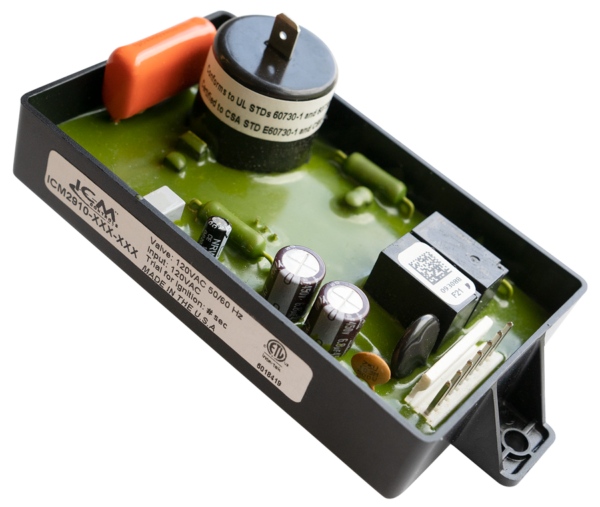

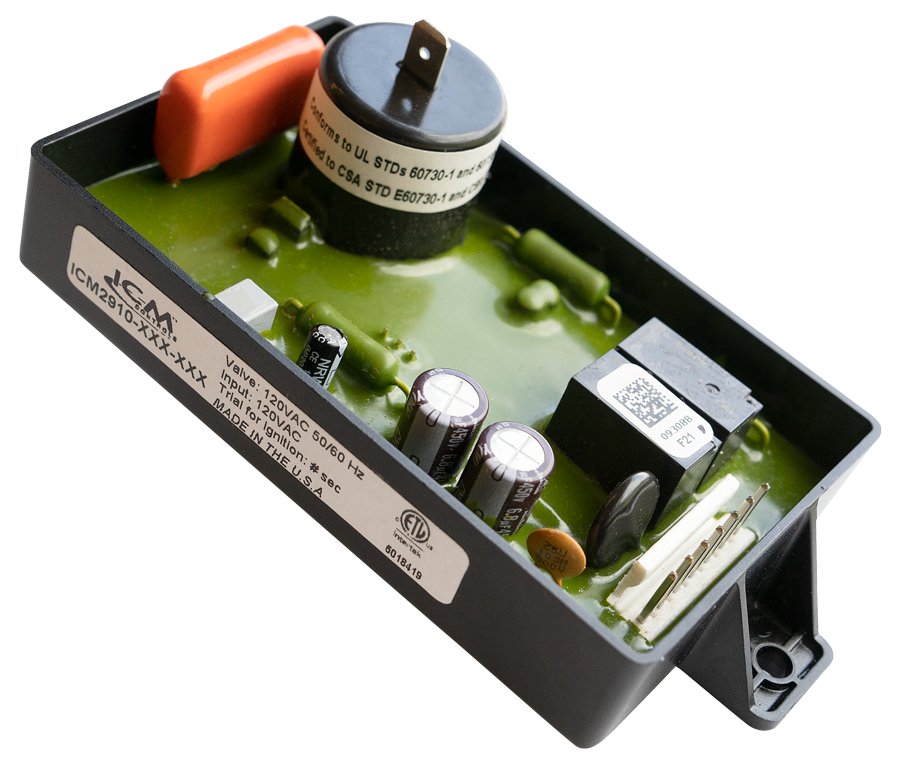

Fenwal OEM Replacement DSI Control

The ICM2910 consists of a series of 11 Fenwal OEM Replacement DSI Controls. When the thermostat initiates a “Call for Heat”, the ICM2910 will perform a hardware check. After the hardware check, the ICM2910 will start a pre-purge where applicable. Once the pre-purge has ended, the spark source and the gas valve relay are energized simultaneously for the duration of the trial for ignition period. A flame rectification circuit confirms the presence of the flame. Upon flame detection, the spark source is turned off. If flame is not sensed, the control will turn off the spark source and gas valve and start an inter-purge where applicable before the next trial for ignition. If flame is not detected after the trial(s) for ignition, the control will enter a hard lockout. To clear the hard lockout, remove the input voltage to the control or recycle the thermostat’s heat call.

  • Direct Spark Ignition (DSI) control modules
  • Microprocessor-based
  • Controls spark ignitor and gas valve
  • Monitors timing, trial for ignition, flame sensing and lockout
  • Compatible with LP or natural gas
  • Redundant Gas valve design conforms to ANSI Z21.20
  • Conforms to UL STDs 60730-1 and 60730-2-5.
  • Certified to CSA STD E60730-1 and CSA STD C22.2#60730-2-5

WEIGHT/DIMENSIONS:

Dimensions: 5.23”L x 2.53”W x 1.86”H

SPECIFICATIONS:

  • Control Voltage: 102-138 VAC
  • Flame Current: 1uA minimum
  • Current Draw: 50mA maximum
  • Gas Valve: 1.5A@120 VAC
  • Flame Failure Response Time: 0.8 seconds maximum
  • Operating temperature: -40˚F to 175˚F (-40˚C to 80˚C)
  • Dimensions: 5.23”L x 2.53”W x 1.86”H
  • Mounting: Surface mount using (2) #8 screws
